Faital Pro 4FE35

B00W46SW44

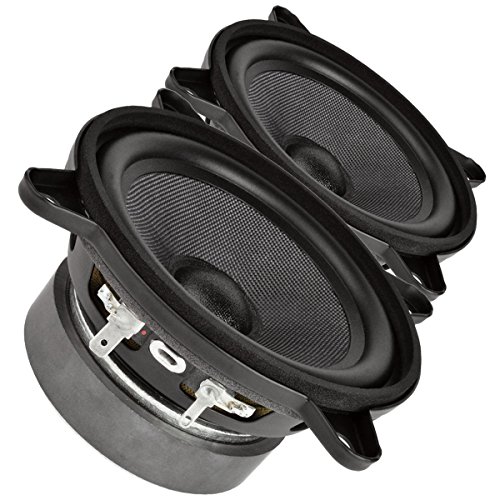

Pair Faital PRO 4FE35 4" Midrange Full-Range Woofer Speaker 8 ohms 60W 91dB

Pair Faital PRO 4FE35 4" Midrange Full-Range Woofer Speaker 8 ohms 60W 91dBzoom

Attributes

Key Value
# Mounting Holes4
Baffle Cutout Diameter3.52"
Basket / Frame MaterialSteel
Bolt Circle Diameter4.54
BrandFaitalPRO
Compliance Equivalent V.0.07ft?
Cone MaterialPaper
DC Resistance (Re)3.3?
Depth2.3"
Diaphragm Mass Inc. Air.3.9g
Electromagnetic Q (Qes)0.9
Frequency Response90 to 20,000Hz
Impedance4?
Magnet MaterialFerrite
Maximum Linear Excursio.1.73mm
Mechanical Compliance o.0.65mm/N
Mechanical Q (Qms)3.94
Model4FE35
Nominal Diameter4"
Overall Outside Diameter5.11" (mounting tabs), .
Part Number294-1123
Power Handling (MAX)60 Watts
Power Handling (RMS)30 Watts
Resonant Frequency (Fs)100Hz
Sealed F3120.5Hz
Sealed Volume0.06ft?
Sensitivity91dB 2.83V/1m
Surface Area of Cone (S.48cm?
Surround MaterialRubber
Total Q (Qts)0.73
Unit of MeasureEach
UPC848864011103
Vented F398.1Hz
Vented Volume0.06ft?
Voice Coil Diameter0.75"
Voice Coil FormerKapton? / Polyimide
Voice Coil Inductance (.0.04mH
Voice Coil Wire MaterialAluminum
Weight1.26
