Fasco D727

B007VJNIDY

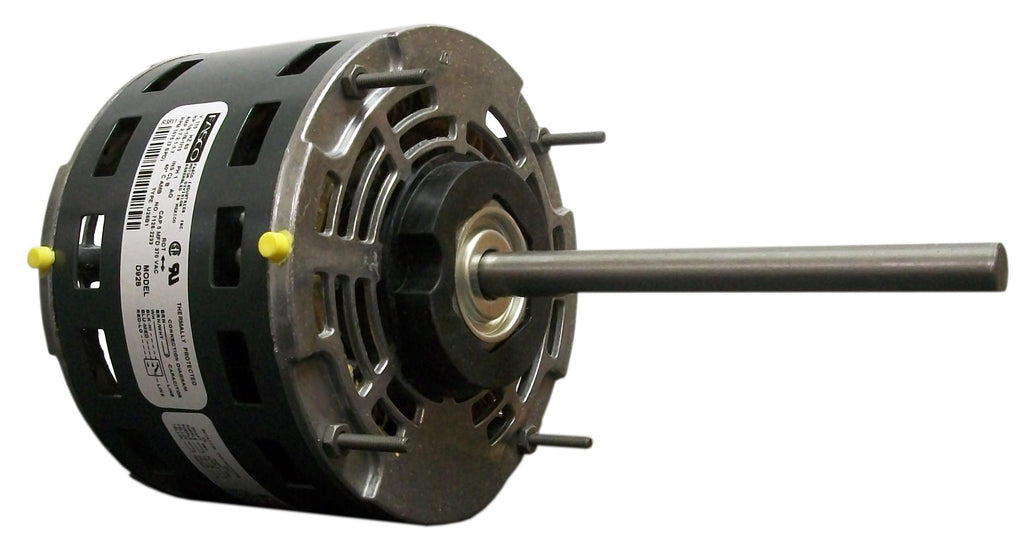

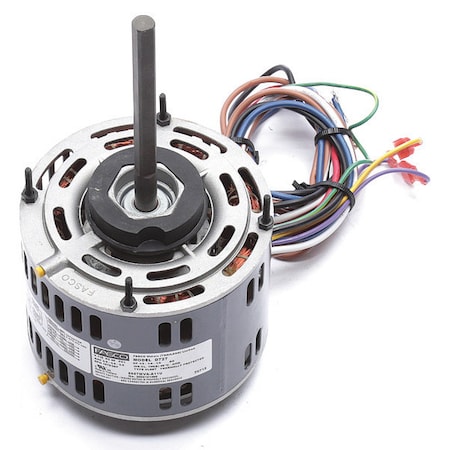

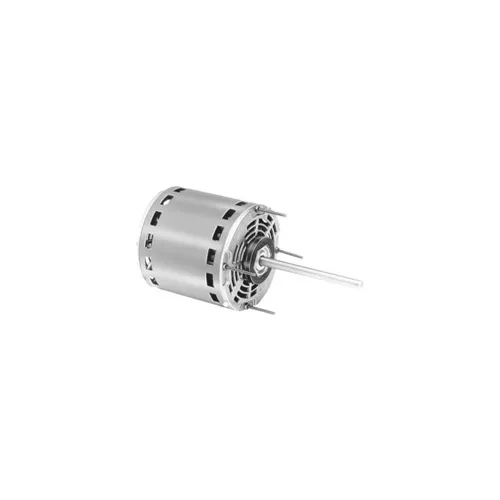

Fasco D727 5.6-Inch Direct Drive Blower Motor, 1/3 HP, 115 Volts, 1075 RPM, 3 Speed, 5.9 Amps, OAO Enclosure, Reversible Rotation, Sleeve Bearing

Fasco D727 5.6-Inch Direct Drive Blower Motor, 1/3 HP, 115 Volts, 1075 RPM, 3 Speed, 5.9 Amps, OAO Enclosure, Reversible Rotation, Sleeve Bearingzoom

Attributes

Key Value
AMP5.9
Amps5.9/4.6/3.8, 5.9-4.6-3.8
BearingsSleeve
Body Dia.5 5/8 in
Bolt Circle Dia.5 1/4 in
BrandFasco
C-Dimension-
Capacitor5MFD/370VAC
Catalog NumberD727
CEN
CSAY
Current Stock47
DE Bearing TypeSleeve
DEM ReferenceFA#D727
Diameter5-5/8 in
DutyContinuous
Electrical TypePermanent Split Capacit.
Enclosure TypeOAO (Open Air Over), Op.
Fan Speeds3
Frame5.6"
Frame MaterialRolled Steel
Frame Size48
Frame Type48
Frequency60
Full Load Amps5.9-4.6-3.8
Horsepower1/5 hp
HP1/5, 1/4, 1/3, 1/3, 1/4.
Hz60, 60 Hz
Ins. ClassB
Insulation ClassB
International ShippingNo
IP Code-
ItemDirect Drive Blower Mot.
KVA Code-
Lead Length26 in
Lead TimeExpected to ship in 1-2.
Length Less Shaft4 5/8 in
Manufacturers Warranty .1 yr
Max Ambient40?C
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5.6"
Motor Orientation-
Motor Shaft DesignDouble-Flat
Motor Shaft RotationCW/CCW
Motor Shell Length4-1/4"
MountingBase/Stud
Mounting OrientationAll Angle
Mounting Stud Length13/16 in
Mounting TypeExtended Studs
MpnD727
Nominal Efficiency0.51 %
Number of Speeds3
ODE Bearing TypeSleeve
Overall Length10 15/16 in
Phase1, Single Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypeBlower Motor, PSC (Perm.
Resilient Ring Dia.2 1/2 in
RotationReversible
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
RPM Range1,001-1,100, 900-1150
Service Factor1
Shaft Dia.1/2 in
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension5.94 (in.)
Shaft Length6", 6 in
Shaft TypeDouble Flat
Ship Weight15 lbs.
SKUZO-G6422818
Speeds3
Stud Size#8-32
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
UL ListedNo
UPC818508021263
Voltage115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115, 115V
