FASCO Industries K161

B079PZCRL8

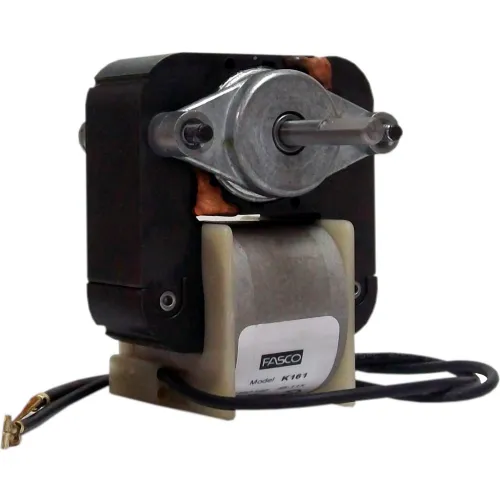

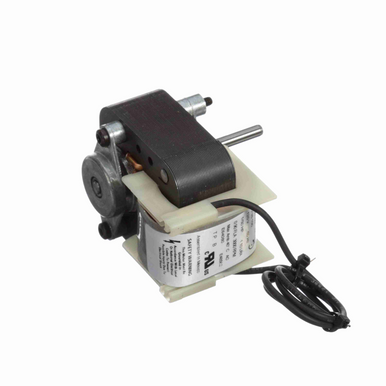

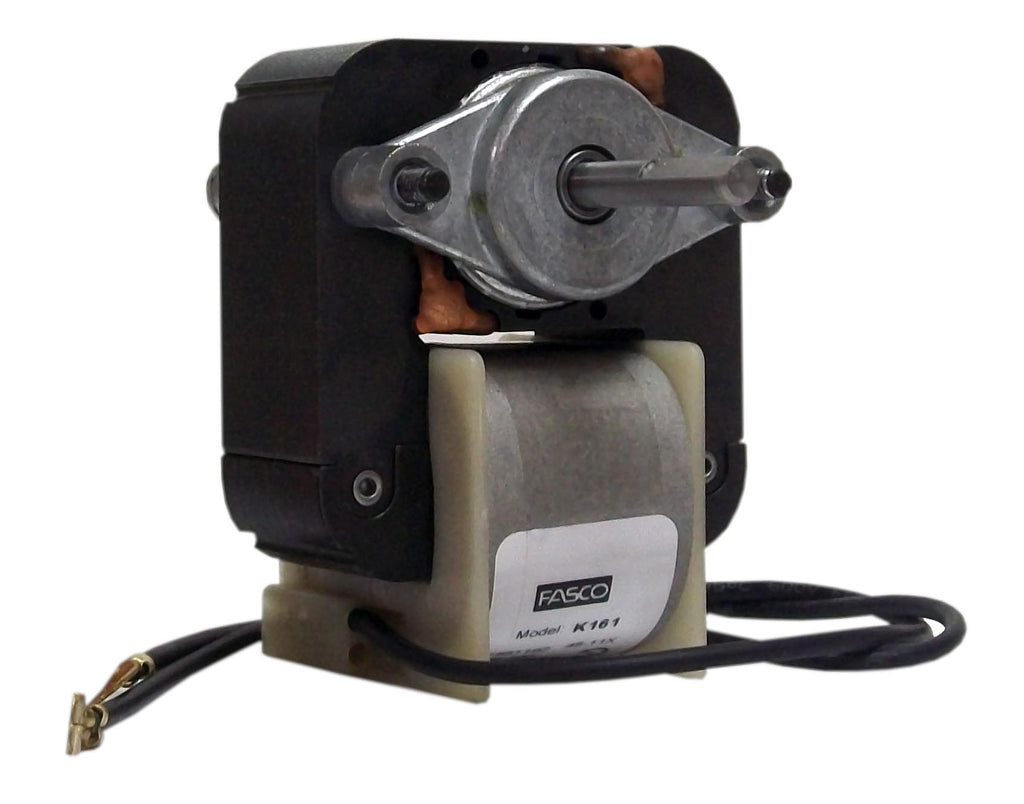

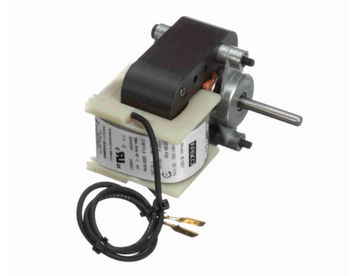

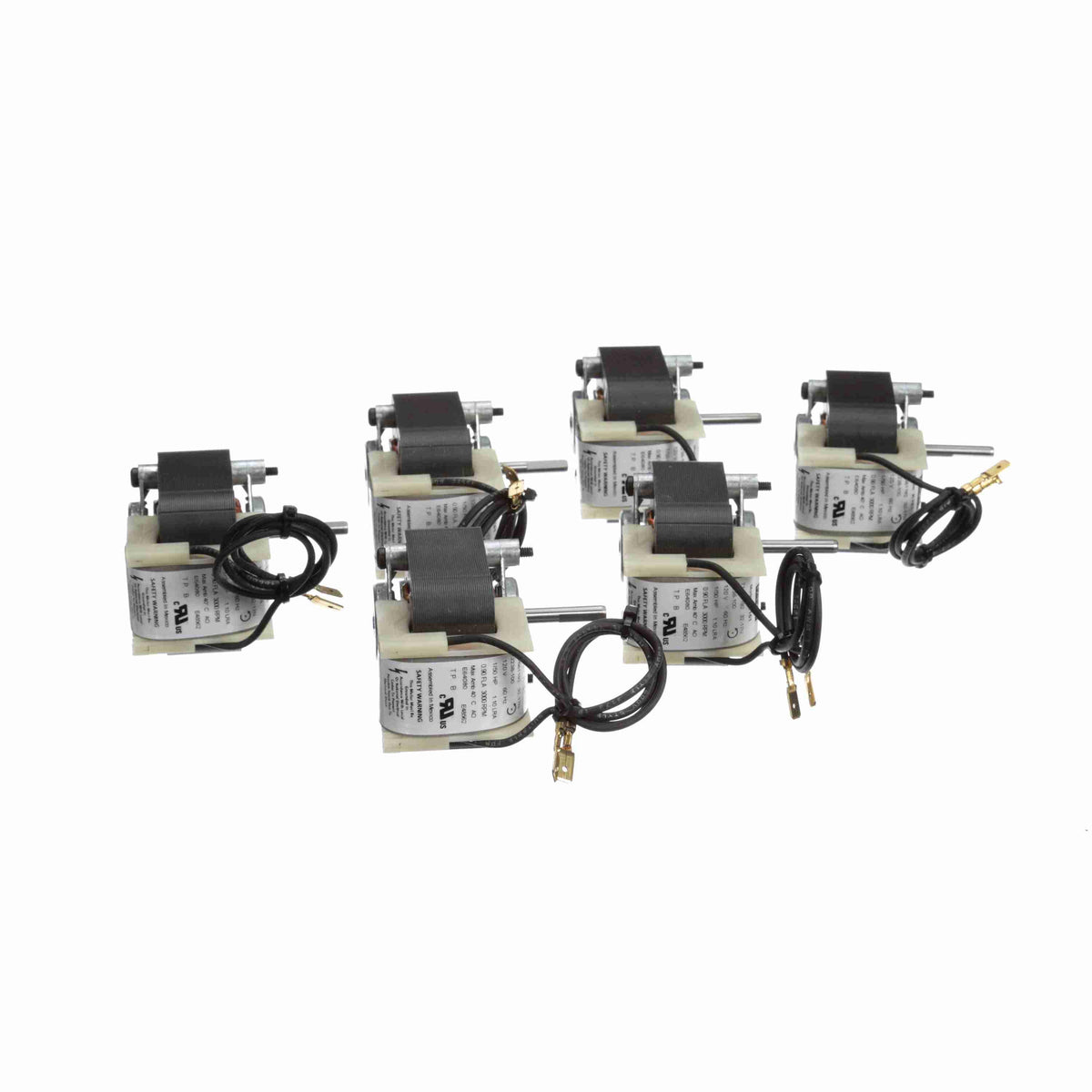

FASCO Industries K161 1/50HP 115V 3000RPM CCW Motor

FASCO Industries K161 1/50HP 115V 3000RPM CCW Motorzoom

Attributes

Key Value
Amps.90, 1.05
ApplicationFans and Blowers
BearingsSleeve
Best Sellers RankSee Top 100 in Industri.
Body Dia.2-3/8"
BrandFasco
C-Dimension3.24 (in.)
Capacitor RequiredNo
Catalog NumberK161
CEN
Country of Origin (subj.Mexico
Cross ReferenceMany Freezer Case Appli.
CSAN
Date First AvailableSeptember 12, 2012
DE Bearing TypeSleeve
DEM ReferenceFA#K161
DutyAir Over
Electrical TypeShaded Pole
Enclosure TypeOAO (Open Air Over), Op.
FrameC-Frame, Non-Standard
Frame Material-
Frame TypeC-Frame
Frequency60
Full Load Amps0.9A, 0.90
HP1/50 HP, 1/50
Hz60
Ins. ClassB
Insulation ClassB
IP Code-
ItemMotor, Condenser Fan Mo.
Item model numberK161
KVA Code-
Length Less Shaft2"
ManufacturerFasco Motors
Max Ambient40?C
Max. Ambient Temp.40 Degrees C
Motor ApplicationOEM Replacement, OEM Di.
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Enclosure DesignOpen, Open Air-Over
Motor Mounting TypeExtended Studs, Stud
Motor Orientation-
Motor Service Factor1.00
Motor Shaft DesignFlat
Motor Shaft RotationCCWSE, Counterclockwise
Motor Sub ApplicationCondenser Fan
Motor Thermal ProtectionIncluded
MountingStud
Mounting Stud Pattern2" x 2"
Mounting TypeExtended Studs
Nameplate RPM3000, 3000 rpm
No. of Speeds1, 2
Number of Shafts1
Number of Speeds1
ODE Bearing TypeSleeve
OEM Replacement BrandFasco
Overall Length3.24", 3-3/16"
Package Dimensions12.2 x 6.4 x 4.7 inches.
Phase1
Product CategoryHVAC/R Motors > C-Fram.
Product TypeShaded Pole
Product with faster shi.true
Replacement For87678050, For Existing .
RotationMechanically Reversible.
RPM3000
RPM (Nameplate)3000
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
RPM Range1801-3000
Service Factor1
Shaft Dia.7/32", 0.218"
Shaft Diameter0.2178", 0.218 (in.)
Shaft Extension1.21 (in.)
Shaft Length1.21", 1-3/16"
Shaft TypeFlat
Ship Weight2 lbs.
Shippingundefined (Fixed Shippi.
Speeds1
Stud Size8-32 X 3/16"
Thermal ProtectionAutomatic
Type of Overload Protec.Thermally Protected
ULRecognized
Voltage120, 120V
Voltage Compatibility115, 120
Volts120, 115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.netK16145.421In StockFasco45.42 @ 1
thumbzoomcshincorporated.comK16146.791In StockFasco2.046.79 @ 1
thumbzoomDreisilkerFA-RBC-K16153.751In StockFasco53.75 @ 1
thumbzoomemotorpro.comK16155.741In StockFasco2.055.74 @ 1
thumbzoomsustainablesupply.comC209224856.431In StockFasco15.056.43 @ 1
thumbzoomZoroG321403859.891In Stock15Fasco2.059.89 @ 1
uri.comK16160.481In StockFasco1.560.48 @ 1
thumbzoomindustrialstores.comK16163.8316Fasco63.83 @ 1
thumbzoomhomeessentialsdirect.comK16164.361In StockFasco Motors64.36 @ 1
thumbzoommidwestapplianceparts.comK161-FA-P65.581In StockFasco65.58 @ 1
thumbzoomVoomi SupplyK16168.91In StockFASCO68.9 @ 1
thumbzoomNational Supply NetworkB2310052452.751In StockFASCO452.75 @ 1
thumbzoomGlobal IndustrialWBB2310052470.951In StockFasco470.95 @ 1
