- mpnAR865CHSC
- brandname: FIBOX
- manufacturername: FIBOX

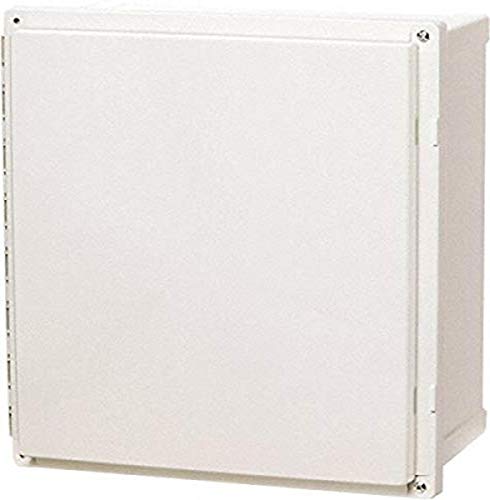

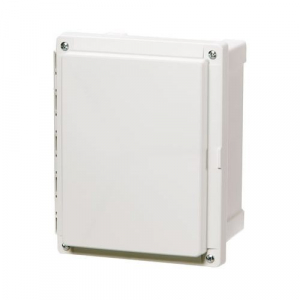

Fibox Enclosures AR865CHSC UL Listed Nema 4X Polycarbonate Enclosure with Hinged Opaque Screw Cover, 6" Width, 8" Length, 5" Height
- Brand: Fibox Enclosures
- PartNumber: AR865CHSC
- Model: AR865CHSC
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Fibox
- Label: Fibox
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 8561007 |
| Approximate Height | 8.7" (221mm) |
| Area (L x W) | 64.8in? (418cm?) |
| Base colour | RAL 7035 -light gray |
| Base Product Number | AR865 |
| Category | Boxes, Enclosures, Racks |
| Color | Light Gray |
| Container Type | Box |
| Cover colour | RAL 7035 -light gray |
| Description | BOX PLAS GRAY 9.170"L X. |
| Design | Hinged Door, Lid |
| Detailed Description | Box Plastic, Polycarbon. |
| Digi-Key Part Number | 4833-AR865CHSC-ND |
| Dimensions (H x W x D) | 8 x 6 x 5" |
| Dimensions (HxWxD-inch) | 8 x 6 x 5 |
| Door Design | Hinged (Single Door) |
| Electrical insulation | Not insulated |
| Features | - |
| Finish | RAL 7035 Light Gray |
| Flammability Rating | UL 508 |
| Gasket material | Polyurethane |
| Glow Wire Test (IEC 606. | 960 ?C |
| Halogen free (DIN/VDE 0. | 1 |
| Height | 5.710" (145.03mm) |
| Impact Resistance (EN 6. | IK09; |
| Ingress Protection (EN . | IP66; IP67; |
| Inner Panel | Sold Separately |
| Locking Feature | Screw |
| Manufacturer | FIBOX Enclosures |
| Manufacturer Product Nu. | AR865CHSC |
| Material | Polycarbonate, Plastic,. |
| Material Flammability R. | - |
| Mfr | FIBOX Enclosures |
| Mounting | Feet |
| NEMA Class | NEMA 4, 4X, 6, 6P, 12, . |
| NEMA Type | 4, 4X, 6, 6P, 12 and 13 |
| Package | Box |
| Product Status | Active |
| Ratings | IP66, IP67, NEMA 4,4X,6. |
| Series | - |
| Size / Dimension | 9.170" L x 7.060" W (23. |
| Standards | UL, IEC, RoHS |
| Temperature ?C (con. | -40-80 |
| Temperature ?C (sho. | -40-140 |
| Temperature ?F (con. | -40-175 |
| Temperature ?F (sho. | -40-250 |
| Thickness | - |
| UV resistance | UL 508 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Solutions Direct | AR865CHSC | 65.88 | 1 | In Stock | | FIBOX | | 65.88 @ 1 |
 | primebuy.com | AR865CHSC | 81.86 | 1 | In Stock | | Fibox | | 81.86 @ 1 |
 | Radwell | AR865CHSC | 85.0 | 1 | In Stock | | FIBOX | | 85.0 @ 1 |
 | Digi-Key | 11505122 | 90.39 | 1 | 4 | | FIBOX Enclosures | | 90.39 @ 1 |
 | Newark | 53M6261 | 96.37 | 1 | In Stock | | FIBOX | | 96.37 @ 1 |
| us.rs-online.com | 72354392 | 118.86 | 1 | 2 | | Fibox | | 118.86 @ 1 |
