Bearing Type | Sealed Ball |
Brand, Manufacturer, Supplier: | FILL-RITE |
Connection | NPT |
Description: | 12GPM, 12V DC Pump, NPT ports, 10' Quick-connect power cable, 23"-40.5" co |
Duty Cycle | 30 min |
Features | Portable, Handheld, Gasoline, Kerosene, Ethanol Blends (up to 15%), Methanol Blends (up to 15%), Configurable Inlet and Outlet Flanges, Bypass-Less Construccion, Thermal Proteccion, Quick-Disconnected Power Cable, Self Priming, Portable |
Flow | 12 GPM |
For Use With | Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline |
Hose Dia. | 3/4 in |
Hose Length | 8 ft |
Housing Material, Material, Nozzle Material | Aluminum |
HP | 1/5 |
Inlet Size, Outlet Size | 3/4 in NPT |
Inlet, Outlet Size | 3/4" |
Item | DC Pump |
Manufacturers Warranty Length | 2 yr |
Max. Viscosity | 140 SUS |
MFG Part #:, MPN, SKU | RD1212NP |
Overall Height | 7 1/4 in |
Overall Length | 17 7/8 in |
Overall Width | 17 13/16 in |
Power Cord Length | 10 ft |
Pressure Range | 12 psi to 15 psi |
Product Type | Simple product |
Pump Design | Rotary Vane |
Pump Mount Size | 2 in |
Seal Material | Buna-n |
Series | RD Series |

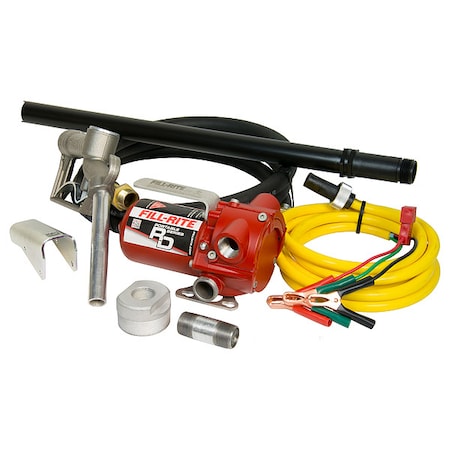

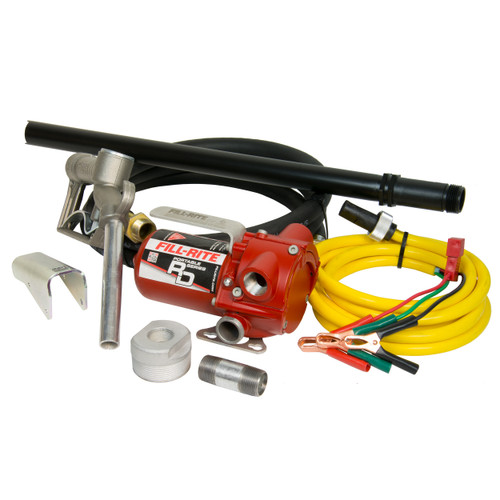

Specifications | Designed for gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits. Includes pump, 3/4" manual nozzle, 5/8 x 8 ft. discharge hose, 10 ft. quick connect power cord with battery clips and 23-40.5 collapsible suction tube. |
Suction Tube Length | 23 in to 41 in |
Transfer Pump Application | Construction, Emergency Response, Farming, Generators, Marine, Refueling Fleet Vehicles |
UPC | 89404225073, 89404225066 |
UPC: | 0-89404-22507-3 |
Voltage | 12V DC |
Weight | 17.000000 |
