| AC Response | 5 kHz |
| Calibration Certificate | NIST |
| Calibration Frequency | 42.5 to 69 Hz |
| Country of Origin (subject to change) | Romania |
| Crest Factor | Less Than 3 |
| Current Accuracy | +/-1% |
| Current Channels, Voltage Channels | 4 |
| Data Logging | Yes |
| Display | Color LCD Touch Screen |
| Display Resolution | 480 x 272 |
| Harmonic Capture Range | 20uS |
| Includes | (3) Line Cords, (4) Alligator Clips, Color Coding Set, Fluke 1738, Soft Case, USB Flash Drive Containing Fluke Energy Analyze Plus Software, Voltage Test Leads |

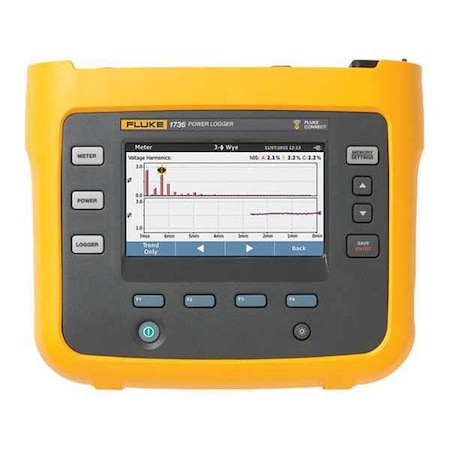

| Item | Power Quality Analyzer Kit |
| Kit Current Capability | optional 4/40A probes, 3,000A probe and 6,000A probe |
| Manufacturers Warranty Length | 2 yr |
| Max. AC Amps | 6,000 A |
| Max. AC Voltage | 1,000 |
| Max. VA | 1000TVA |
| Max. Watts | 1000TW |
| Min. Transient Duration | 10.24kHz |
| Peak Capture | No |
| Phase | 3 |
| Power Factor | -1 to 1 |
| Promotion Restriction | Not eligible for promotion |
| Safety Rating | CAT III 1000V, CAT IV 600V |
| Sampling Rate | 97 s/c |
| Storage | 2 GB |
| Voltage Accuracy | +/-0.2% |
