Attributes
| Key ^ | Value |
|---|---|
| Actual Dia. (Min.-Max) | 0.066" to 0.069" |
| Basic Material | High Carbon Steel |
| Country of Origin (subject to change) | United States |
| Double Shear Strength (Lbs.) | 430 lbs |
| Fastener Finish | Plain |
| Fits Hole Dia. (Min.-Max.) | .062" - .065" |
| Material Grade | 1070-1080 |
| Outside Dia. | .063" (1/16) |
| Overall Length | .188" (3/16) |

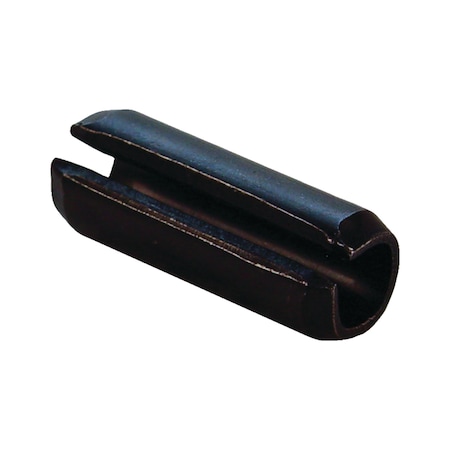

| Pin Item | Spring Pin |
| Rockwell Hardness | HV 458-560 |
| Spring Pin Type | Slotted Spring Pin |
| Standards | ASME B18.8.2 |
| System of Measurement | Inch |
| Wall Thickness | .012" |
