General Cable C0723A.41.10

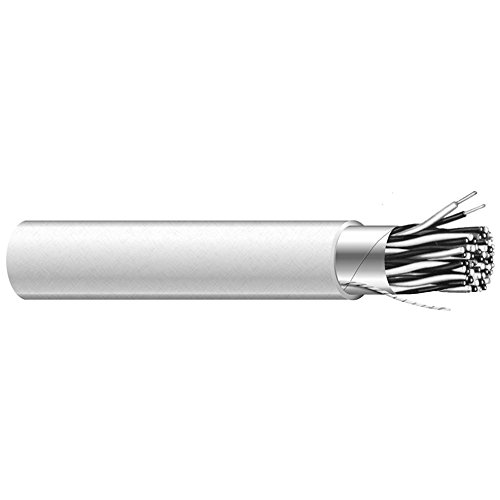

General Cable C0723A.41.10 Multi-Paired Foil Shield Cable, UL 2464, NEC Type CM (UL) c(UL) or CMR (UL) c(UL), CSA CMG, 4P/22 7/30TC OA SH TYPE CMR, 1000' Reel

General Cable C0723A.41.10 Multi-Paired Foil Shield Cable, UL 2464, NEC Type CM (UL) c(UL) or CMR (UL) c(UL), CSA CMG, 4P/22 7/30TC OA SH TYPE CMR, 1000zoom

Attributes

Key Value
ApplicationComputers, Industrial E.
Application - Communica.Computer Systems, Contr.
ApprovalsCSA, cULus, NEC, UL
Base Product NumberC0723
Cable Sub-CategoryFire Alarm/Life Safety/.
Cable TypeMulti-Pair
CategoryCables, Wires
CommentsNEC 800 CMR, UL 2464, C.
Conductor InsulationPoly-Vinyl Chloride (PV.
Conductor MaterialCopper, Annealed Tinned
Conductor Size22 AWG
Conductor Size - Data C.22 AWG
Conductor Strand7/30
Conductor TypeStranded
Country of Origin (subj.United States
Drain WireSingle
Family SeriesGeneral Cable Wire & Ca.
FeaturesDrain Wire
Fire Rating - Data CableRiser
Gross Weight0 lbs
Insulation MaterialPVC, Premium-Grade, Col.
Insulation Thickness0.01 "
ItemPower Limited and Commu.
Item - Data CableCommunication Cable
Item NumberC0723A.41.10
Jacket (Insulation) Dia.0.269" (6.83mm)
Jacket (Insulation) Mat.Poly-Vinyl Chloride (PV.
Jacket (Insulation) Thi.0.0320" (0.813mm)
Jacket ColorGray
Jacket MaterialPVC
Jacket Material - Wire .PVC
Jacket Thickness0.032 "
Length1000.0' (304.8m), 1000 .
ManufacturerGeneral Cable
Manufacturer Part NumberC0723A
MfrGeneral Cable/Carol Bra.
NEC Article800
NEC Article and Type800 CMR
Net Weight0 lbs
Nominal Capacitance C-C27.8 pF/ft
Nominal DCR16.6 Ohm/kft
Nominal Outside Dia.0.269 in
Number of Conductors4, 8 (4 Pair Twisted)
Number of Pairs4
Operating Temperature-20?C ~ 80?C
Outer Diameter0.269 "
PackageSpool
Package Type - Data Cab.Reel in a Box
Part StatusActive
Plenum or Riser?Riser
Product SeriesComputer Wire
RatingsASTM B-33
RoHS CompliantYes
Series-
Shield Coverage100%
Shield MaterialFlexfoil?
Shield TypeFoil
ShieldedYes
Shielded / UnshieldedShielded
ShieldingOverall
Shielding MaterialAluminum Polyester Foil.
Solid / StrandedStranded
Spool Length1,000 ft
StandardsNEC Article 800 Type CM.
Stranding7/30
Suggested Voltage Ratin.300 V
Temp. Range-4 Degrees to 176 Degr.
Temperature Rating-4-176 ?F
Total Number of Conduct.8 (4 Pair)
UsageComputer
Voltage300 V
Voltage Rating300 V
Wire Gauge22 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoC0723A.41.10-GNCC1.1190General Cable1.1 @ 1
kirbyrisk.com31924901.12718100090General Cable1.12718 @ 1000
HotendaH142033549.1215General Cable549.12 @ 1
thumbzoomZoroG5746526838.71190General Cable18.3838.71 @ 1
Digi-Key19709781168.88104General Cable/Carol Brand1168.88 @ 1
thumbzoomRaptor SuppliesAA8NVN1547.6973525190GENERAL CABLE1547.6973525 @ 1
