General Cable E2502S.41.03

mpnE2502S.41.03
brandname: General Cable/Carol Brand
manufacturername: General Cable/Carol Brand

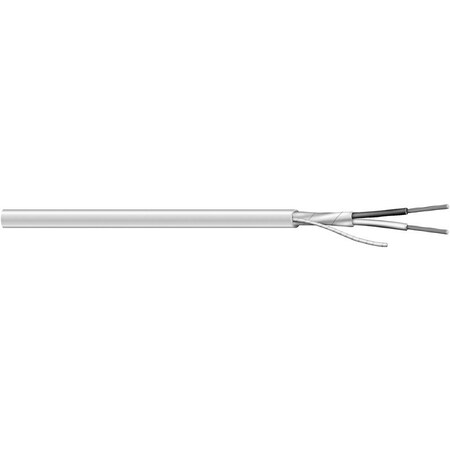

General Cable E2502S.41.03 Multi-Conductor, Shielded, Non-Plenum NEC Type Fplr, 2C/18 Sbc OA Sh Type Fplr

General Cable E2502S.41.03 Multi-Conductor, Shielded, Non-Plenum NEC Type Fplr, 2C/18 Sbc OA Sh Type Fplr

zoom

Brand: General Cable
PartNumber: E2502S.41.03
Model: E2502S.41.03
Color: Red
PackageQuantity: 1
Binding: Misc.
Manufacturer: General Cable
Label: General Cable

Attributes

Key	Value
Approvals	NEC, UL
Brand	General Cable / Carol B.
Cable Type	Multi-Conductor
Catalog Number	E2502S.41.03
Category	Cables, Wires
Color	Red
Comments	NEC 760 FPLR, UL 1666
Conductor Insulation	Poly-Vinyl Chloride (PV.
Conductor Material	Copper, Bare
Conductor Strand	Solid
Conductor Type	Solid
Country of Origin (subj.	Unknown
Drain Wire	Single
Family Series	General Cable Wire & Ca.
Features	Drain Wire, Rip Cord
Gross Weight	0 lbs
Insulation Material	PVC
Insulation Thickness	0.01 "
Item Number	E2502S.41.03
Jacket (Insulation) Dia.	0.158" (4.01mm)
Jacket (Insulation) Mat.	Poly-Vinyl Chloride (PV.
Jacket (Insulation) Thi.	0.0150" (0.381mm)
Jacket Color	Red
Jacket Thickness	0.015 "
Length	50.00' (15.24m), 1,000 '
Manufacturer	General Cable
Manufacturer Part Number	E2502S
Mfr	General Cable/Carol Bra.
Net Weight	0 lbs
Number of Conductors	2
Operating Temperature	-20?C ~ 75?C
Outer Diameter	0.158 "
Package	Spool
Part Status	Active
Plenum or Riser?	Riser
Product Series	Life Safety
Ratings	-
RoHS Compliant	Yes
Series	-
Shield Coverage	100%
Shield Material	Flexfoil?
Shield Type	Foil
Shielding	Overall
Shielding Material	Aluminum Polyester Foil
Temperature Rating	-4-167 ?F
UPC	079407835324
Usage	Alarm, Safety
Voltage	300 V
Voltage Rating	300 V
Wire Gauge	18 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	mayerelectric.com	GCCE2502S.41.03	0.202	1	10000		GENERAL CABLE		0.202 @ 1
	Galco	E2502S.41.03-GNCC	0.23	1	434		General Cable		0.23 @ 1
	kirbyrisk.com	2402429	0.25434	1000	434		General Cable		0.25434 @ 1000
	crescentelectric.com	55847	0.39	1	434		General Cable / Carol Brand		0.39 @ 1
	Digi-Key	E2502S-50-ND	16.68	1	434		General Cable/Carol Brand		16.68 @ 1
	Zoro	G1171817	139.15	1	434	35	General Cable		139.15 @ 1
	absupply.net	GENERAL CABLE CMP. E2502S.41.03	139.31	1	434		General Cable		139.31 @ 1
	Carlton Bates Company	07940783532	150.0	1	434		GENERAL CABLE		150.0 @ 1
	turtle.com	WIR 18SOL2COSPVCFA	221.06	1	434		General Cable Technologies		221.06 @ 1
	Hotenda	H140887	260.1	1	7		General Cable		260.1 @ 1
