- mpn6005
- brandname: GENTEQ
- manufacturername: GENTEQ

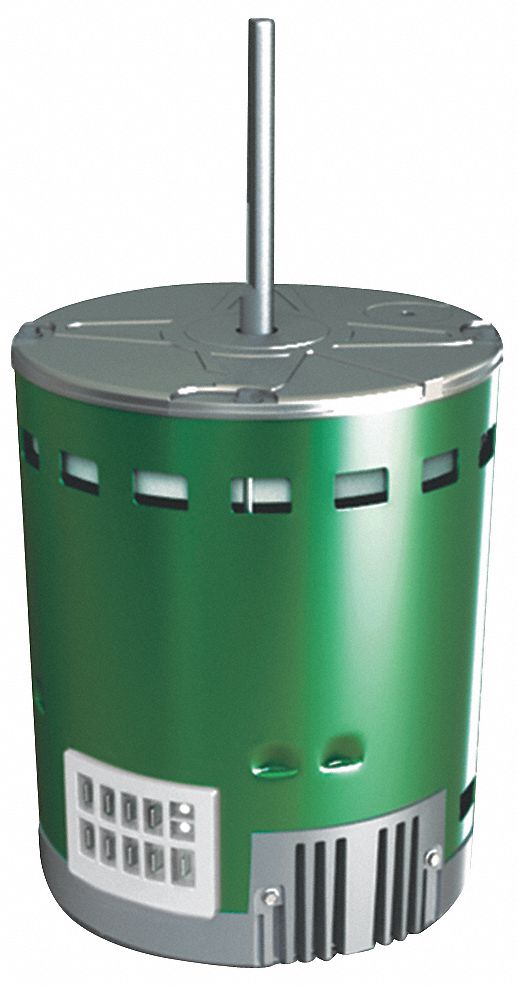

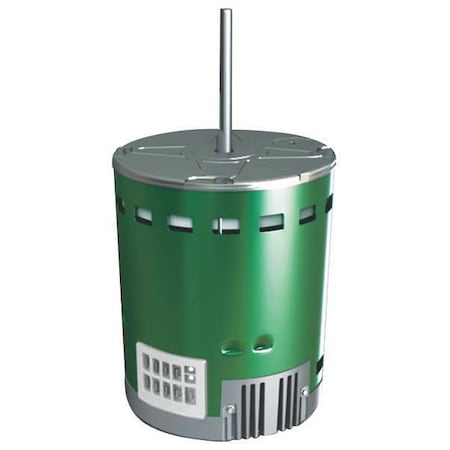

GENTEQ 6005 IM Motor, 6", 1" x 1" x 1"
- Brand: Genteq
- PartNumber: 6005
- Model: 6005
- PackageQuantity: 1
- Binding: Misc.
Attributes
| Key | Value |
|---|
| Amps | 6.7/4.0 |
| Application | HP PSC Motors in Reside. |
| Body Dia. | 5 5/8 in, 5-5/8" |
| Brand | Genteq |
| Capacitor Required | No |
| Current Stock | 12 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Type | Open |
| Frame | 5.6", 48 |
| Full Load Amps | 6.7/4.0 |
| HP | 1/2 |
| Hz | 60 Hz, 50/60, 60/50 |
| Includes | 115VAC White Jumper and. |
| Ins. Class | B |
| International Shipping | No |
| Item | Direct Drive Blower Mot. |
| Lead Length | 42", 42 in |
| Length Less Shaft | 6 5/16", 6 5/16 in |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | ECM |
| Motor Diameter | 5.6" |
| Motor Enclosure Design | Open Air-Over |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Band |
| Motor Service Factor | 1.00 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Mpn | 6005 |
| Nameplate RPM | 1,075 RPM, 1,070 |
| No. of Speeds | 1, 5 |
| Number of Shafts | 1 |
| Number of Speeds | 1 |
| Overall Length | 11 1/4 in, 11.26", 11-1. |
| Phase | 1, Single |
| Product Type | ECM (Electronically Com. |
| Rotation | Reversible |
| RPM | 1070 |
| RPM Range | 1,001-1,100 |
| Shaft Dia. | 1/2", 1/2 in |
| Shaft Length | 4-15/16", 4 15/16 in |
| Ship Weight | 15 lbs. |
| SKU | ZO-G1536525 |
| Standards | UL Recognized (1004) |
| Stud Quantity | 4 |
| SubCategory | Motors/Ac Motors |
| UPC | 815585020547 |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 115/230V AC, 115/230 |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115, 230 |
| Weight | 14 lb |
