GF Piping Systems 9853-040

B007IA6DQK

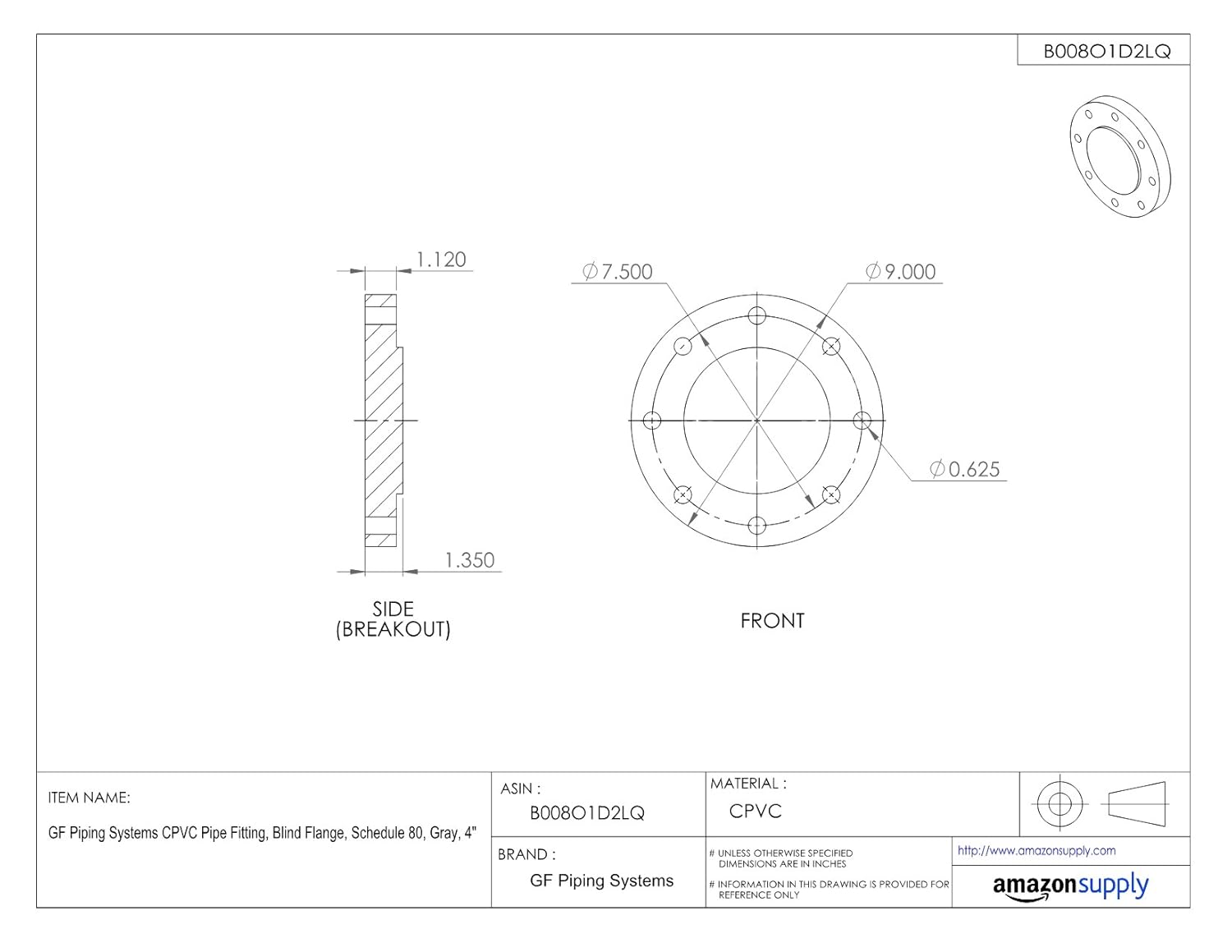

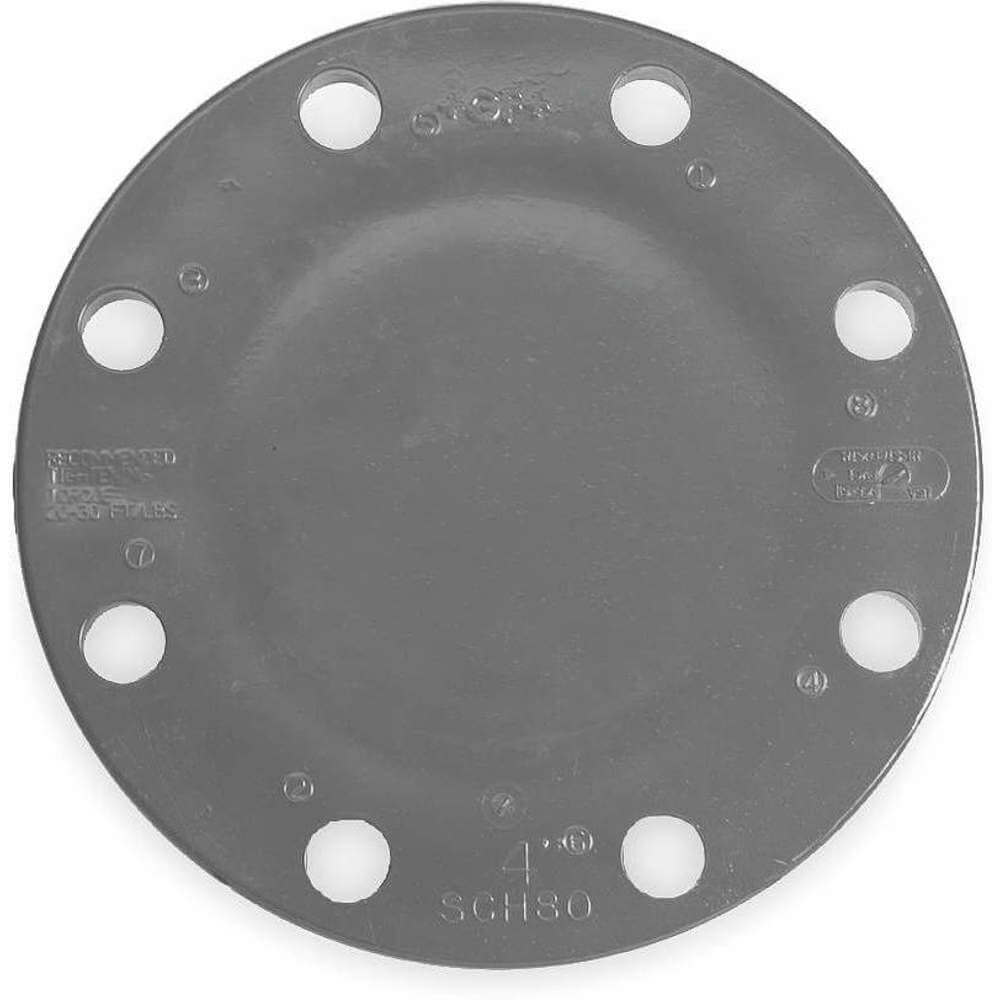

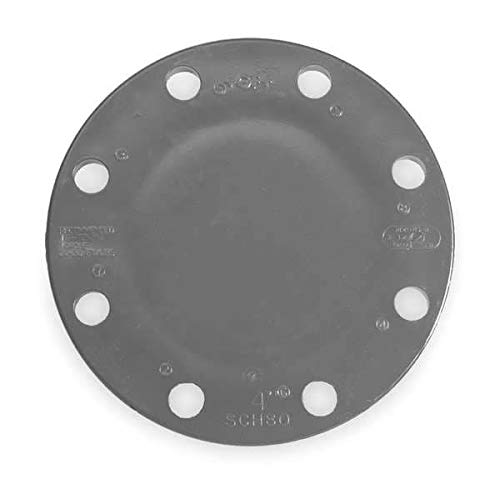

Blind Flange,cpvc,4 In,schedule 80,gray - GF PIPING SYSTEMS

Blind Flange,cpvc,4 In,schedule 80,gray - GF PIPING SYSTEMSzoom

Attributes

Key Value
ApplicationNon-Potable Water, Pota.
Bolt Circle Diameter7 1/2 in
Bolt Hole Diameter3/4 in
ClassClass 150
ColourGray
Connection SurfaceFlat
Fitting Connection TypeSlip Socket
Flange Outside Diameter9 in
Flange Thickness1 in
For Pipe Schedule80
Maximum Operating Press.150 psi
Nominal Pipe Size4 in
Number of Bolt Holes8
Overall Length1 in
Pipe Fitting MaterialCPVC
ScheduleSchedule 80
Specific Fitting ShapeBlind Flange
StandardsASTM D1784, NSF14
Temp. Range210 Degrees F

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB008O1D2LQ63.211In StockGF Piping Systems63.21 @ 1
grainger.caWWG1VGU3106.715256181In StockGF PIPING SYSTEMS3.85106.71525618 @ 1
thumbzoomRaptor SuppliesAB3UZW112.55066551In StockGF PIPING SYSTEMS112.5506655 @ 1
