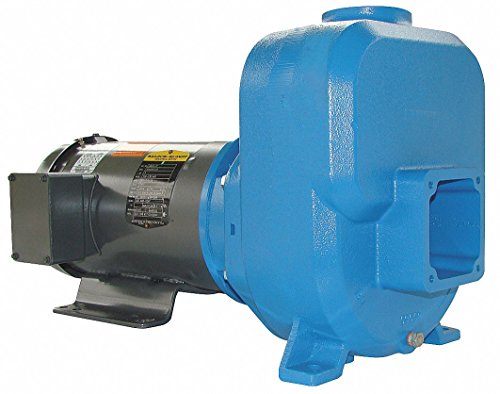

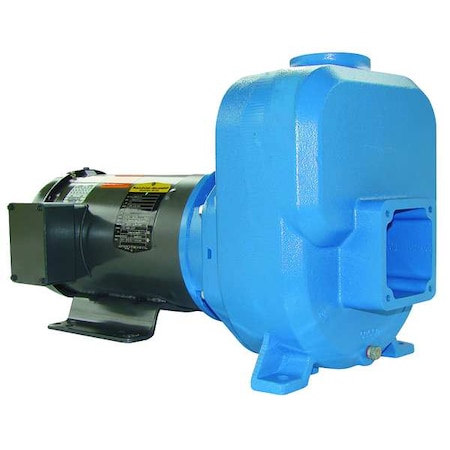

Goulds Pump 50SPM70

Centrifugal Pump 5 HP 12/6 Amps

Centrifugal Pump 5 HP 12/6 Ampszoom

Attributes

Key Value
Amps12/6
Best Efficiency GPM @ P.140 gpm @ 110 ft
Best Efficiency Head90 to 120 ft
Best Efficiency Range G.120 to 160 gpm @ 120 to.
BrandGoulds Water Technology
Compatible Discharge Pi.2 1/2 in
Compatible with Media T.Water
ConnectionNPT
Discharge2-1/2"
Discharge TypeNPT
DutyContinuous
Duty - PumpsContinuous
Duty CycleContinuous
ElastomersBUNA-N
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.211 gpm
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.Not Applicable
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.167 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.Not Applicable
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.Not Applicable
Flow Rate @ 60 ft of He.Not Applicable
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frequency60 Hz
GPM @ 15 PSI235
GPM @ 20 PSI223
GPM @ 25 PSI215
GPM @ 30 PSI198
GPM @ 35 PSI178
GPM @ 40 PSI165
GPM @ 45 PSI148
GPM @ 50 PSI130
GPM @ 55 PSI110
GPM @ 60 PSI80
Horsepower5 hp
Housing300 Stainless Steel
Housing MaterialCast Iron
Housing Material - PumpsCast Iron
HP5
HP - Pumps5 hp
Hz60
Impeller DesignClosed
Impeller MaterialCast Iron, Silicon Bron.
Impeller Size5.94"
Impeller TypeClosed
Inlet3", 3 in NPT
Inlet Pressure15 psi
Inlet Size - Pumps3 in NPT
Intake TypeNPT
ItemCentrifugal Pump
Item - Self Priming Pum.Self Priming Centrifuga.
Length23 in
Length (Straight Wirewa.23 in
Max Flow240.00 GPM
Max Head148.00 FT
Max Temp (?F)160
Max. Case Pressure85 psi
Max. Dia. Solids1/8"
Max. Dia. Solids - Pumps1/8 in
Max. Head148 ft.
Max. Head - Pumps148 ft
Max. Liquid Temp.160 Degrees F
Max. Pressure - Pumps64 psi
Max. Temp - Pumps160 Degrees F
Maximum Feet of Head115.5 ft
Mechanical SealCarbon vs. Ceramic
Minimum Flow Rate65 gpm
MotorXP-PE
Motor EnclosureODP
Motor Enclosure - PumpsOpen Dripproof
Motor Enclosure BroadODPF
Motor Enclosure TypeODP
Motor RPM3,500 RPM
Motor TypeODP
MPN50SPM70
Nameplate Voltage208-230/460V AC
Nominal Voltage208-230/460V AC
Old Part Number50SPM30
Outlet2-1/2 in NPT
Outlet Size - Pumps2-1/2 in NPT
Overall Height13.2 in
Overall Length23 in
Overall Width11.4 in
Phase3
Phase - Pumps3
Phase Broad3
Port Rotation - PumpsNo
PrimingSelf-Priming
Product TypeSimple product
Pump Housing MaterialCast Iron
Pump Housing Material B.Ir
Seal MaterialCarbon/Ceramic
Seal TypeMechanical
Self-PrimingYes
SeriesSP, Prime Line SPM
Shaft MaterialStainless Steel
Shut Off Pressure (Maxi.50 psi
Speed (RPM)3500
StandardsANSI 61, NSF Certified
Suction Lift25 ft.
Suction Lift - Pumps25 ft
Voltage230/460V, 208-230/460
Voltage - Pumps208 to 230/460V AC
Weight136.000000
Wetted Material316 Stainless Steel, Br.
Wetted Materials300 Stainless Steel, 31.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger49UU542302.01In Stock10GOULDS WATER TECHNOLOGY2302.0 @ 1
thumbzoomsustainablesupply.comC29840452366.01In StockGoulds Water Technology144.02366.0 @ 1
thumbzoomandersonprocess.com50SPM702716.71In Stock35Goulds Water Technology136.02716.7 @ 1
thumbzoomZoroG48478514081.01In Stock65Goulds Water Technology144.04081.0 @ 1
