Goulds Pump 9BF1K4C0

B007YV5L8O

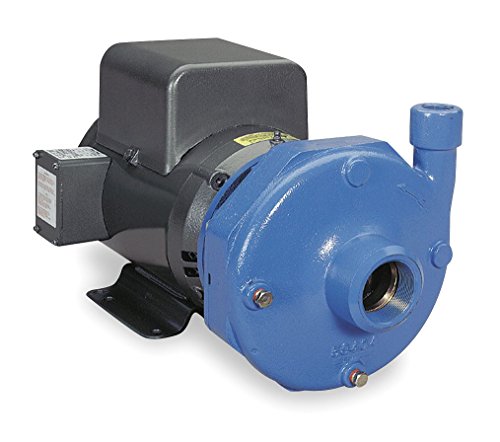

Centrifugal Pump, 7-1/2hp, 1-Ph, 230V

Centrifugal Pump, 7-1/2hp, 1-Ph, 230Vzoom

Attributes

Key Value
Amps33
Bearing TypeBall
Best Efficiency Flow84 gpm
Best Efficiency GPM @ H.84 @ 190 ft
Best Efficiency Range G.45 to 95 gpm @ 160 to 2.
Compatible Discharge Pi.1 in
Compatible with Media T.Water
DutyContinuous
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 15 ft of He.Not Applicable
Flow Rate @ 20 ft of He.Not Applicable
Flow Rate @ 220 ft of H.50 gpm
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 50 ft of He.Not Applicable
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
Frame215
GPM of Water @ 10 Ft. o.-
GPM of Water @ 100 Ft. .-
GPM of Water @ 110 Ft. .-
GPM of Water @ 120 Ft. .-
GPM of Water @ 130 Ft. .-
GPM of Water @ 140 Ft. .-
GPM of Water @ 15 Ft. o.-
GPM of Water @ 160 Ft. .-
GPM of Water @ 180 Ft. .90
GPM of Water @ 20 Ft. o.-
GPM of Water @ 200 Ft. .60
GPM of Water @ 220 Ft. .-
GPM of Water @ 240 Ft. .-
GPM of Water @ 25 Ft. o.-
GPM of Water @ 260 Ft. .-
GPM of Water @ 280 Ft. .-
GPM of Water @ 30 Ft. o.-
GPM of Water @ 40 Ft. o.-
GPM of Water @ 5 Ft. of.-
GPM of Water @ 50 Ft. o.-
GPM of Water @ 60 Ft. o.-
GPM of Water @ 70 Ft. o.-
GPM of Water @ 80 Ft. o.-
GPM of Water @ 90 Ft. o.-
Height10 3/4 in
Housing MaterialCast Iron
Housing Material - PumpsCast Iron
HP7-1/2
HP - Pumps7 1/2 hp
Hz60
Impeller MaterialBronze
Impeller TypeClosed
Includes-
Inlet2" NPT
Inlet Pressure100 psi
Inlet Size - Pumps2 in NPT
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Length27 in
Length (Straight Wirewa.27 in
Manufacturers Warranty .1 yr
Max. Case Pressure175 psi
Max. Dia. SolidsNone
Max. GPM @ Head95 @ 180 ft
Max. Head225 ft
Max. Liquid Temp.212 Degrees F
Max. Pressure91 psi
Max. Pressure - Pumps91 psi
Max. Specific Gravity1.1
Maximum Feet of Head225 ft
Maximum RPM3,500 RPM
Min. GPM @ Head30 @ 220 ft
Minimum Flow Rate48 gpm
Motor EnclosureTEFC
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Enclosure BroadTEFC
Motor Frame Designation215JM
Motor RPM3,450 RPM
Motor TypeJM
Nameplate Voltage230V AC
Nominal Voltage230V AC
Outlet1" NPT
Outlet Size - Pumps1 in NPT
Overall Length24.7 in
Overall Width9.7 in
Phase1
Phase - Pumps1
Port Rotation4 Position Increments
Pump Housing Material B.CI
Seal MaterialBuna-N Elastomers, Carb.
Seal TypeMechanical Type 21
Series3656
Shaft MaterialStainless Steel
StandardsANSI 61, NSF Certified
Voltage230VAC
Voltage - Pumps240V AC
Wetted Material316 Stainless Steel, Br.
Wetted Materials316 Stainless Steel, Ca.
Width12 11/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC26774864305.71In StockGoulds Water Technology178.04305.7 @ 1
thumbzoompumpproducts.com9BF1K4C04712.41In Stock10Goulds4712.4 @ 1
thumbzoomZoroG34677734912.41In Stock26Goulds Water Technology178.04912.4 @ 1
thumbzoomRaptor SuppliesAC3RVJ5922.45780751In StockGOULDS WATER TECHNOLOGY5922.4578075 @ 1
