| Amps AC | 35 |
| Bearing Type | Sealed Ball |
| Bypass Valve, Self-Priming | Yes |
| Compatible Fluids, For Use With | Diesel, Gasoline, Kerosene |
| Country of Origin (subject to change) | United States |
| Duty Cycle | 30 min Off, 30 min On, Intermittent |
| Features | Easy Access to fuel strainer, Internal Check Valve w/Perfect Prime to keep pump head primped, Lockable Nozzle Holder to deter fuel theft, Multidirectional 90 Degree Outlet, Quick-Fit Modular Design, Safe Stop Power Down - 30 minute auto power down with easy reset |
| GPM | 25 gpm |
| Hose Dia. | 1 in |
| Hose Length, Power Cord Length | 18 ft |
| Housing Material | Cast Iron |
| HP | 2/5 |
| Includes | Dispensing Hose, Factory-Installed Power Cord, Fuse Assembly, Manual Shut-Off Diesel Nozzle, Modular Fitting with Hardware, Tank Adapter, Telescoping Suction Pipe |
| Inlet Size, Outlet Size | 1 in NPT |

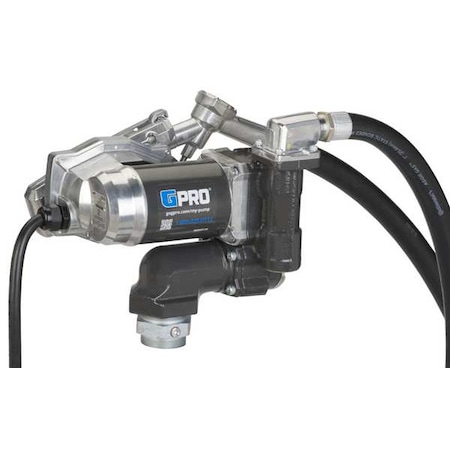

| Item | Fuel Transfer Pump |
| Manufacturers Warranty Length | 4 yr |
| Metered | No |
| Nozzle Material | Aluminum |
| Nozzle Type | Manual |
| Overall Height | 11 19/50 in |
| Overall Length | 12 11/100 in |
| Overall Width | 10 43/50 in |
| Pressure Range | 20 psi |
| Pump Design | Rotary Vane |
| Pump Mount Size | 2 in |
| RPM | 1620 |
| Seal Material | Buna-N |
| Seal Type | Mechanical |
| Standards | Class I Div 1, Class I Div 2, cULus Listed, IECEx/ATEX Zone 1 |
| Suction Tube Length | 15 in to 40 in |
| Voltage | 12VDC |
