Description:

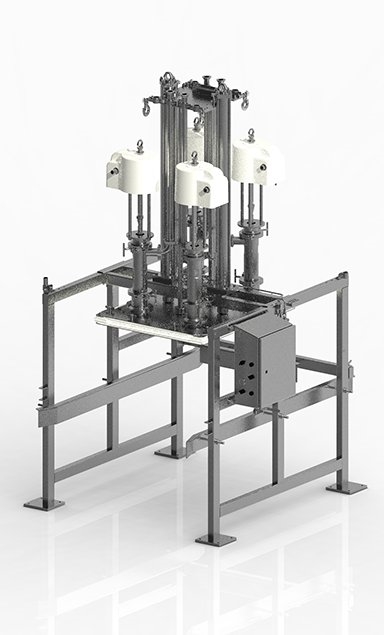

STU.A06BAA1AA1C21 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application text | High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps |
| Dimension uom code | IN |
| Division code | PRO |
| Frame finish/coating | Stainless Steel |
| Maximum air inlet pressure (bar) | 6.89 |
| Maximum air inlet pressure (kpa) | 689 |
| Maximum air inlet pressure (psi), Maximum fluid pressure (bar) | 100 |
| Maximum flow rate (gpm) | 34 |
| Maximum flow rate (l/min) | 129 |
| Maximum fluid pressure (kpa) | 10000 |
| Maximum fluid pressure (mpa) | 10.0 |
| Maximum fluid pressure (psi) | 1450 |
| Number of controllers | 1 |
| Number of pumps | 4 |
| Overall depth (cm) | 194 |
| Overall depth (in) | 76.5 |
| Overall depth (mm) | 1943 |
| Overall height (cm) | 298 |
| Overall height (in) | 117.3 |
| Overall height (mm) | 2979 |
| Overall width (cm) | 178 |
| Overall width (in) | 70 |
| Overall width (mm) | 1778 |
| Pump ratio | 12:1 |
| Pump type | Piston |
| System controller type | Enclosed Pneumatic |
| Type | Bin Evacuation System |
| Wetted Material | 316 Stainless Steel;Polychloroprene;Nitrile;Nylon;UHMWPE;PTFE |
