GRAINGER APPROVED 4VMU3

B0763K97Y2

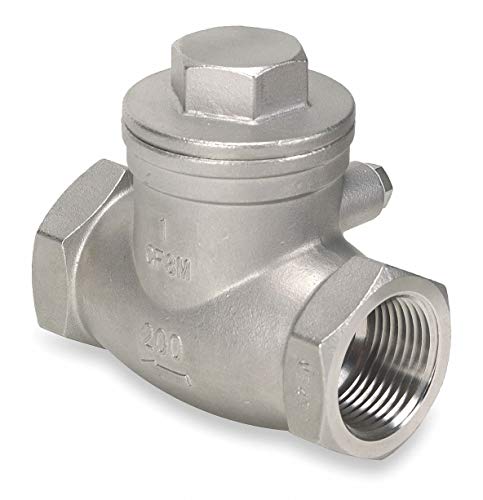

Swing Check Valve, 316 SS, 1-1/4 in, NPT

Swing Check Valve, 316 SS, 1-1/4 in, NPTzoom

Attributes

Key Value
Application - ValvesGeneral Purpose
Body Material316 Stainless Steel
Body Material - Valves316 Stainless Steel
Cap to Inlet Center2 19/32 in
Connection TypeFNPT x FNPT
Cracking Pressure0.5 psi
Cracking Pressure - Che.0.5 psi
Flow49 gpm
Flow - Valves49.0 gpm
Flow DesignSingle
Full Flow - ValvesYes
Hex Size1 31/32 in, 1 31/32"
ItemSwing Check Valve
Item - Check ValvesCheck Valve
Length4 1/8 in
Max. PressureWater: 200 psi, Steam: .
Max. Steam Pressure - V.200 psi WSP
Max. Temp. - Valves350 Degrees F
Max. Water Pressure - V.200 psi
Mechanism and Body Desi.Inline Swing
Min. Temp. - Valves-4 Degrees F
Mounting OrientationHorizontal
Mounting Orientation - .Horizontal
Overall Height4 9/64 in
Pipe or Tube Size1 1/4 in
Pipe or Tube Size - Che.1 1/4 in
Pipe Size1 1/4"
Seal MaterialPTFE
Seal Material - Check V.PTFE
Size1 1/4"
Sub-CategoryStainless Steel
Width2 1/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG131016392.79172Zoro Select2.3292.79 @ 1
grainger.caGGM4VMU3123.488632841In StockGRAINGER APPROVED2.32123.48863284 @ 1
