- mpn288457
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

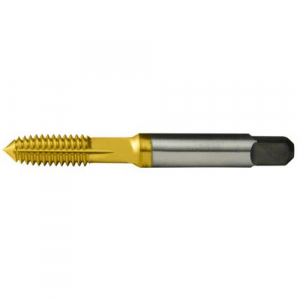

Machine Tap Bottoming 1/2-13 Thread TiN
- Brand: Greenfield Threading
- PartNumber: 288457
- PackageQuantity: 1
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 15/32 in |
| 65% Thread Drill Size | 11.80 mm, 11.80mm |
| 75% Thread Drill Size | 11.70mm, 11.70 mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Bottoming |
| Class of Fit | 2B |
| Cutting Direction | Right Hand |
| Diameter | 0.5000" |
| Extended Neck | Yes |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Item | Machine Tap, Thread For. |
| Length of Cut | 2 in |
| List Number | FTGP |
| Material | HSS, High-Speed Steel |
| Material Grade - Machin. | FTGP-TN |
| Measurement System | Imperial |
| Number of Flutes | 0 |
| Number of Pieces | 1 |
| Overall Length | 3.375 in, 3-3/8 in, 3-3. |
| Overall Length (Metric) | 85.72mm |
| Package Quantity | 6 per case |
| Pitch Diameter Limit | H8 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N, P |
| Product Type | Plug Machine Tap |
| Series | FTGP, FTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.367" |
| Shank Diameter | 0.275 in |
| Shank End | Square |
| Shank Length | 1 23/32 in |
| Shank Size | 0.3670", 0.367 in |
| Shank Size (Metric) | 9.32mm |
| Shank Square Length | 0.4375" |
| Shank Square Length (Me. | 11.11mm |
| Shank Square Width | 0.2750" |
| Shank Square Width (Met. | 6.99mm |
| Spiral Direction | Neutral |
| Square Size | 0.2750 in, 0.275 in |
| Standards | USCTI Table 302A, USCTI. |
| Style | FTGP-TN |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 302A |
| Tap Chamfer | Bottoming |
| Tap Construction | Bottoming, Standard |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Interrupted Thread | No |
| Tap Limit | H8 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.9375 in, 0.9375" |
| Tap Size | 1/2" |
| Tap Spiral Point | No |
| Tap Style | Thread Forming, Thread . |
| Tap Thread Size | 1/2"-13 |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread | 1/2-13 |
| Thread Creation | Thread Forming |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 15/16", 15/16 in, 0.937. |
| Thread Length (Metric) | 23.81mm |
| Thread Limit | H8 |
| Thread Limit / Class of. | H8 / 2B |
| Thread Pitch | 13 |
| Thread Size | 1/2-13 UNC, 1/2", 1/2"-. |
| Thread Standard | UNC |
| Thread Tolerance | 2B |
| Threads per Inch | 13 |
| Tool Size | 1/2-13 UNC |
| Type | General Purpose Standard |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | usmegastore.com | 288457 | 38.99 | 1 | In Stock | | Greenfield Threading | | 38.99 @ 1 |
 | Megadepot | 288457 | 38.99 | 1 | In Stock | | Greenfield Threading | | 38.99 @ 1 |
 | heavydutydepot.com | 288457 | 38.99 | 3 | In Stock | | Greenfield Threading | | 38.99 @ 3 |
 | Zoro | G7684531 | 39.29 | 1 | In Stock | | Greenfield Threading | 0.11 | 39.29 @ 1 |
 | rshughes.com | 697334-88457 | 39.65 | 6 | In Stock | | Greenfield Industries | | 39.65 @ 6 |
 | MRO Supply | 6107679 | 39.77 | 1 | In Stock | | Greenfield Threading | | 39.77 @ 1 |
 | sustainablesupply.com | C2782138 | 50.23 | 1 | In Stock | | Greenfield Threading | 0.11 | 50.23 @ 1 |
| grainger.ca | GNF288457 | 57.40399654 | 1 | In Stock | | GREENFIELD THREADING | 0.114 | 57.40399654 @ 1 |
