- mpn384525
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

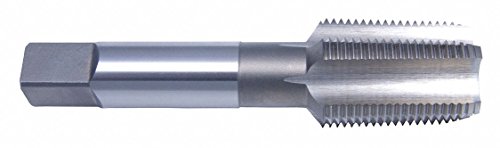

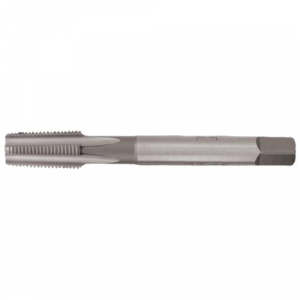

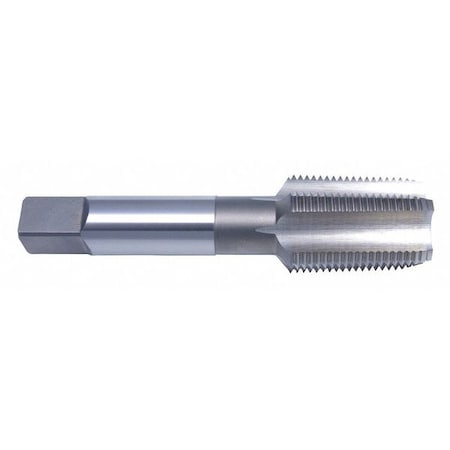

Pipe Tap, Semi-Bottoming, 1/4"-18 Thread
- Brand: Greenfield Threading
- PartNumber: 384525
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | 7/16 in |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Case Quantity | 1 per case |
| Chamfer Type | Semi-Bottoming |
| Color | Grey |
| Current Stock | 9 |
| Cutting Direction | Right Hand |
| Diameter | 0.2500" |
| Extended Shank | Yes |
| Finish/Coating | Bright |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut, Right |
| Hook Type | Medium |
| International Shipping | No |
| Item | Pipe Tap |
| Lead Time | Expected to ship in 1-2. |
| List Number | ELPTT |
| Material | HSS, High-Speed Steel, . |
| Material Application | Cast Iron, N: Non-ferro. |
| Material Grade - Machin. | ELPTT |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | 384525 |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Operation Type | Blind Hole |
| Overall Length | 3-1/2", 3.5 in, 3.5000". |
| Overall Length (Metric) | 88.90mm |
| Pitch Diameter Limit | Not Rated |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, N, P |
| Product Type | Tapered Pipe Tap |
| Series | ELPTT, Medium Hook Taper |
| Shank Configuration | Straight w/ Square, Str. |
| Shank Dia. | 0.48", 0.480" |
| Shank Diameter | 0.48 in |
| Shank End Feature | Square |
| Shank Length | 2 27/64 in |
| Shank Size | 0.48 in, 0.4800" |
| Shank Size (Metric) | 12.19mm |
| Shank Square Length | 0.4400" |
| Shank Square Length (Me. | 11.18mm |
| Shank Square Width | 0.3600" |
| Shank Square Width (Met. | 9.14mm |
| SKU | ZO-G7683807 |
| Spiral Direction | Neutral |
| Square Size | 0.3600 in, 0.36 in |
| Standards | USCTI Table 311 |
| Style | ELPTT |
| SubCategory | Machining/Threading |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Inch |
| Tap Finish | Bright |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | No |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Size | 1/4" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.4590" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 1/4"-18 |
| Tap Thread Type | NPT |
| Tap Truncated Threads | No |
| Tap Type | Taper Pipe, Pipe Tap |
| Thread | 1/4-18 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPT |
| Thread Length | 1.0625 in, 1.0625", 1-1. |
| Thread Length (Metric) | 26.99mm |
| Thread Limit | Not Rated |
| Thread Pitch | 18 |
| Thread Size | 1/4-18 NPT, 1/4", 1/4"-. |
| Thread Standard | NPT |
| Threads per Inch | 18 |
| Tool Size | 1/4-18 NPT |
| Type | Extra Length General Pu. |
| UPC | 093367845254 |
