- mpn385409
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

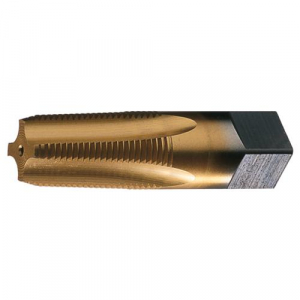

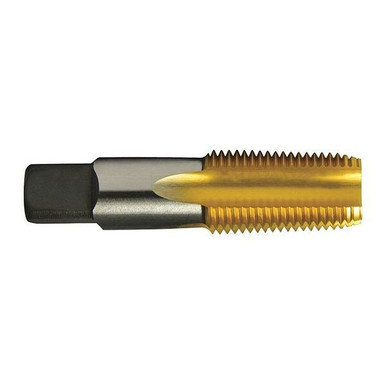

Tap Inch 1/4-18 Thread Size TiN
- Brand: Greenfield Threading
- PartNumber: 385409
- PackageQuantity: 1
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | 0.4375 in |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 3 per case |
| Chamfer Type | Semi-Bottoming |
| Color | Silver |
| Current Stock | 9 |
| Cutting Direction | Right Hand |
| Diameter | 0.2500" |
| Drill Bit Size | 27/64 in, 7/16 in |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Helix Angle | 0 Degrees |
| Hook Type | Medium |
| International Shipping | No |
| Item | Pipe Tap |
| Lead Time | Expected to ship in 1-2. |
| List Number | PTT-TN |
| Material | HSS, High-Speed Steel, . |
| Material Application | Cast Iron, M: Stainless. |
| Material Grade - Machin. | PTT-TN |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | 385409 |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Operation Type | Thru Hole |
| Overall Length | 2-7/16", 2 7/16 in, 2.4. |
| Overall Length (Metric) | 61.91mm |
| Pitch Diameter Limit | Not Rated |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Product Type | Tapered Pipe Tap |
| Series | PTT-TN, Medium Hook Tap. |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.5625", 9/16" |
| Shank Diameter | 9/16 in |
| Shank End Feature | Square |
| Shank Length | 1 3/8 in |
| Shank Size | 0.5625 in, 0.5625" |
| Shank Size (Metric) | 14.29mm |
| Shank Square Length | 0.4375" |
| Shank Square Length (Me. | 11.11mm |
| Shank Square Width | 0.4210" |
| Shank Square Width (Met. | 10.69mm |
| SKU | ZO-G1824459 |
| Spiral Direction | Neutral |
| Square Size | 0.4210 in, 0.421 in |
| Standards | USCTI Table 311 |
| Style | PTT-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | No |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Size | 1/4" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.4590" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 1/4"-18 |
| Tap Thread Type | NPT |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread | 1/4-18 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPT |
| Thread Length | 1-1/16", 1.0625", 1-1/1. |
| Thread Length (Metric) | 26.99mm |
| Thread Pitch | 18 |
| Thread Size | 1/4-18 NPT, 1/4", 1/4"-. |
| Thread Standard | NPT |
| Threads per Inch | 18 |
| Tool Size | 1/4-18 NPT |
| Type | Straight Flute |
| UPC | 093367854096 |
