- mpn385422
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

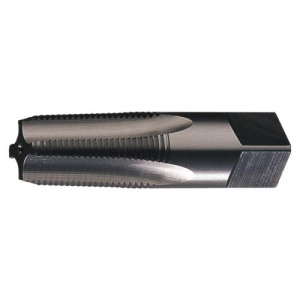

Pipe/Conduit Thread Tap,3/8"-18,HSS
- Brand: Vermont Tap & Die
- PartNumber: 385422
- Model: 385422
- Size: 3/8 Inch - 18 NPT
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Threading
- Label: Greenfield Threading
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | 0.5625 in |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 1 per case |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Diameter | 0.3750" |
| Drill Bit Size | 9/16 in |
| Finish/Coating | Bright |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Helix Angle | 0 Degrees |
| Hook Type | Medium |
| Item | Pipe Tap |
| List Number | PTT |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, M: Stainless. |
| Material Grade - Machin. | PTT |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Operation Type | Thru Hole |
| Overall Length | 2.5625 in, 2-9/16", 2 9. |
| Overall Length (Metric) | 65.09mm |
| Pitch Diameter Limit | H3 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P |
| Product Type | Tapered Pipe Tap |
| Series | PTT, Medium Hook Taper |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.7", 0.700" |
| Shank Diameter | 0.7 in |
| Shank End Feature | Square |
| Shank Length | 1 1/2 in |
| Shank Size | 0.7000", 0.7 in |
| Shank Size (Metric) | 17.78mm |
| Shank Square Length | 0.5000" |
| Shank Square Length (Me. | 12.70mm |
| Shank Square Width | 0.5310" |
| Shank Square Width (Met. | 13.49mm |
| Spiral Direction | Neutral |
| Square Size | 0.531 in, 0.5310 in |
| Standards | USCTI Table 311 |
| Style | PTT |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming, Taper |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Pipe |
| Tap Finish | Bright (Uncoated) |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | No |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Size | 3/8" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.4540" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 3/8"-18 |
| Tap Thread Type | NPT |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread | 3/8-18 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPT |
| Thread Length | 1.0625 in, 1.0625", 1-1. |
| Thread Length (Metric) | 26.99mm |
| Thread Limit | H3 |
| Thread Limit / Class of. | H3 |
| Thread Pitch | 18 |
| Thread Size | 3/8", 3/8-18 NPT, 3/8"-. |
| Thread Standard | NPT |
| Threads per Inch | 18 |
| Tool Size | 3/8-18 NPT |
| Type | Straight Flute |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | usmegastore.com | 385422 | 33.31 | 1 | In Stock | | Greenfield Threading | | 33.31 @ 1 |
 | heavydutydepot.com | 385422 | 33.31 | 4 | In Stock | | Greenfield Threading | | 33.31 @ 4 |
 | MRO Supply | 6108847 | 33.91 | 2 | In Stock | | Greenfield Threading | | 33.91 @ 2 |
 | rshughes.com | 662355-16217 | 37.86 | 1 | In Stock | 35 | Greenfield Threading | | 37.86 @ 1 |
 | Zoro | G4357123 | 40.59 | 1 | 69 | | Greenfield Threading | 0.2 | 40.59 @ 1 |
| grainger.ca | GNF385422 | 49.10803396 | 1 | In Stock | | GREENFIELD THREADING | 0.22 | 49.10803396 @ 1 |
 | sustainablesupply.com | C1467674 | 50.24 | 1 | In Stock | | Greenfield Threading | 0.2 | 50.24 @ 1 |
 | Raptor Supplies | AA7ACD | 80.181036 | 1 | In Stock | | GREENFIELD TAP | | 80.181036 @ 1 |
