- mpn385501
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

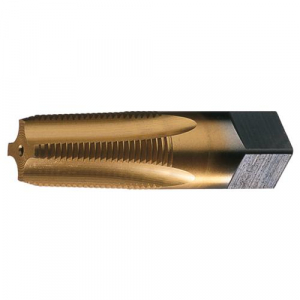

Vermont Tap & Die TN-3180 High-Speed Steel Regular Full Thread Taper Pipe Tap, TiN Coated, Round with Square End, 3/4"-14 Thread Size, Pitch Diameter, 5 Flutes
- Brand: Vermont Tap & Die
- PartNumber: 385501
- Model: 385501
- Size: 3/4 Inch - 14 NPTF
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Threading
- Label: Greenfield Threading
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | 0.9063 in |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 1 per case |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Diameter | 0.7500" |
| Drill Bit Size | 29/32 in, 57/64 in |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Helix Angle | 0 Degrees |
| Hook Type | Medium |
| Item | Pipe Tap |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, M: Stainless. |
| Material Grade - Machin. | PTT-TN |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 5 |
| Number of Pieces | 1 |
| Operation Type | Thru Hole |
| Overall Length | 3-1/4", 3-1/4 in, 3.25 . |
| Overall Length (Metric) | 82.55mm |
| Pitch Diameter Limit | H3 |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Product Type | Tapered Pipe Tap |
| Series | PTT-TN, Medium Hook Tap. |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.9063", 0.906" |
| Shank Diameter | 0.906 in |
| Shank End Feature | Square |
| Shank Length | 1 7/8 in |
| Shank Size | 0.9063 in, 0.9063" |
| Shank Size (Metric) | 23.02mm |
| Shank Square Length | 0.6875" |
| Shank Square Length (Me. | 17.46mm |
| Shank Square Width | 0.6790" |
| Shank Square Width (Met. | 17.25mm |
| Spiral Direction | Neutral |
| Square Size | 0.6790 in, 0.679 in |
| Standards | USCTI Table 311 |
| Style | PTT-TN |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | No |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Size | 3/4" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.5650" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 3/4"-14 |
| Tap Thread Type | NPTF |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread | 3/4-14 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPTF |
| Thread Length | 1 3/8 in, 1.3750", 1.37. |
| Thread Length (Metric) | 34.92mm |
| Thread Limit | H3 |
| Thread Limit / Class of. | H3 |
| Thread Pitch | 14 |
| Thread Size | 3/4"-14, 3/4-14 NPTF, 3. |
| Thread Standard | NPTF |
| Threads per Inch | 14 |
| Tool Size | 3/4-14 NPTF |
| Type | Straight Flute |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | usmegastore.com | 385501 | 77.62 | 1 | In Stock | | Greenfield Threading | | 77.62 @ 1 |
 | heavydutydepot.com | 385501 | 78.43 | 2 | In Stock | | Greenfield Threading | | 78.43 @ 2 |
 | MRO Supply | 6108857 | 84.43 | 1 | In Stock | | Greenfield Threading | | 84.43 @ 1 |
 | Zoro | G4357324 | 88.59 | 1 | 1 | | Greenfield Threading | 0.5 | 88.59 @ 1 |
 | rshughes.com | 662355-19766 | 100.22 | 1 | In Stock | | Greenfield Threading | | 100.22 @ 1 |
| grainger.ca | GNF385501 | 137.32975326 | 1 | In Stock | | GREENFIELD THREADING | 0.53 | 137.32975326 @ 1 |
 | sustainablesupply.com | C1467842 | 153.82 | 1 | In Stock | | Greenfield Threading | 0.5 | 153.82 @ 1 |
 | Raptor Supplies | AA7ACZ | 204.9331635 | 1 | In Stock | | GREENFIELD TAP | | 204.9331635 @ 1 |
