- mpn385513
- brandname: Greenfield Threading
- manufacturername: Greenfield Threading

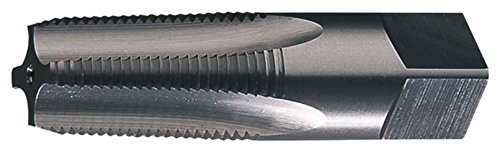

Pipe/Conduit Thread Tap,1"-11-1/2,HSS
- Brand: Vermont Tap & Die
- PartNumber: 385513
- Model: 385513
- Size: 1 Inch - 11.5 NPT
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Threading
- Label: Greenfield Threading
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | 1.1406 in |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 1 per case |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Diameter | 1.0000" |
| Drill Bit Size | 1 1/8 in, 1 9/64 in, 1-. |
| Finish/Coating | Bright |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Helix Angle | 0 Degrees |
| Hook Type | Medium |
| Item | Pipe Tap |
| List Number | PTT |
| Material | HSS, High-Speed Steel |
| Material Application | K: Cast Iron, M: Stainl. |
| Material Grade - Machin. | PTT |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 5 |
| Operation Type | Thru Hole |
| Overall Length | 3-3/4", 3.75 in, 3.7500. |
| Overall Length (Metric) | 95.25mm |
| Pitch Diameter Limit | H3 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P |
| Product Type | Tapered Pipe Tap |
| Series | PTT, Medium Hook Taper |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 1.125" |
| Shank Diameter | 1-1/8 in |
| Shank End | Square |
| Shank Length | 2 in |
| Shank Size | 1.1250", 1.125 in |
| Shank Size (Metric) | 28.57mm |
| Shank Square Length | 0.8125" |
| Shank Square Length (Me. | 20.64mm |
| Shank Square Width | 0.8430" |
| Shank Square Width (Met. | 21.41mm |
| Spiral Direction | Neutral |
| Square Size | 0.843 in, 0.8430 in |
| Standards | USCTI Table 311 |
| Style | PTT |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming, Taper |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Pipe |
| Tap Finish | Bright, Bright (Uncoate. |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | No |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Size | 1" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.6780" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 1"-11-1/2, 1"-11 1/2 |
| Tap Thread Type | NPT |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread | 1-11-1/2 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPT |
| Thread Length | 1.7500", 1-3/4", 1-3/4 . |
| Thread Length (Metric) | 44.45mm |
| Thread Limit | H3 |
| Thread Limit / Class of. | H3 |
| Thread Pitch | 11.5 |
| Thread Size | 1-11.5 NPT, 1", 1"-11-1. |
| Thread Standard | NPT |
| Threads per Inch | 11.5 |
| Tool Size | 1-11.5 NPT |
| Type | Straight Flute |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6108859 | 99.65 | 1 | In Stock | | Greenfield Threading | | 99.65 @ 1 |
 | usmegastore.com | 385513 | 109.1 | 1 | In Stock | | Greenfield Threading | | 109.1 @ 1 |
 | Megadepot | 385513 | 109.1 | 1 | In Stock | | Greenfield Threading | | 109.1 @ 1 |
 | heavydutydepot.com | 385513 | 109.8 | 1 | In Stock | | Greenfield Threading | | 109.8 @ 1 |
 | Zoro | G4357157 | 114.99 | 1 | 8 | | Greenfield Threading | 0.8 | 114.99 @ 1 |
 | rshughes.com | 662355-16232 | 128.34 | 1 | In Stock | 35 | Greenfield Threading | | 128.34 @ 1 |
| grainger.ca | GNF385513 | 168.69908858 | 1 | In Stock | | GREENFIELD THREADING | 0.9 | 168.69908858 @ 1 |
 | sustainablesupply.com | C2783014 | 192.23 | 1 | In Stock | | Greenfield Threading | 0.8 | 192.23 @ 1 |
 | Raptor Supplies | AA7ACG | 272.6445735 | 1 | In Stock | | GREENFIELD TAP | | 272.6445735 @ 1 |
