- mpn385682
- brandname: Greenfield Threading
- manufacturername: Greenfield Threading

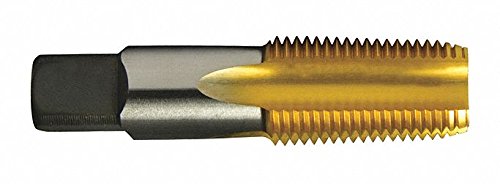

Pipe Tap, 2
- Brand: Greenfield Threading
- PartNumber: 385682
- PackageQuantity: 1
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | 2.1875 in |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 1 per case |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Diameter | 2.0000" |
| Drill Bit Size | 2 11/64 in, 2 3/16 in |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Hook Type | Medium |
| Item | Pipe Tap |
| List Number | PTT-TN |
| Material | HSS, High-Speed Steel |
| Material Application | K: Cast Iron, M: Stainl. |
| Measurement System | Imperial |
| Number of Flutes | 7 |
| Number of Pieces | 1 |
| Operation Type | Thru Hole |
| Overall Length | 4.5 in, 4.5000", 4-1/2 . |
| Overall Length (Metric) | 114.30mm |
| Pitch Diameter Limit | Not Rated |
| Product Type | Tapered Pipe Tap |
| Series | PTT-TN, Medium Hook Tap. |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 1-7/8" |
| Shank Diameter | 1-7/8 in |
| Shank End | Square |
| Shank Length | 2 3/4 in |
| Shank Size | 1.875 in, 1.8750" |
| Shank Size (Metric) | 47.63mm |
| Shank Square Length | 1.1250" |
| Shank Square Length (Me. | 28.57mm |
| Shank Square Width | 1.4060" |
| Shank Square Width (Met. | 35.71mm |
| Square Size | 1.406 in, 1.4060 in |
| Standards | USCTI Table 311 |
| Style | PTT-TN |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | No |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Size | 2" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.6670" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 2"-11-1/2 |
| Tap Thread Type | NPT |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread | 2-11-1/2 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPT |
| Thread Length | 1.7500", 1-3/4", 1-3/4 . |
| Thread Length (Metric) | 44.45mm |
| Thread Pitch | 11.5 |
| Thread Size | 2-11.5 NPT, 2"-11 1/2, . |
| Thread Standard | NPT |
| Tool Size | 2-11.5 NPT |
| Type | Straight Flute |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6108869 | 291.55 | 1 | 2 | | Greenfield Threading | | 291.55 @ 2 |
 | usmegastore.com | 385682 | 321.5 | 1 | 2 | | Greenfield Threading | | 321.5 @ 2 |
 | Megadepot | 385682 | 321.5 | 1 | 2 | | Greenfield Threading | | 321.5 @ 2 |
 | heavydutydepot.com | 385682 | 321.5 | 1 | 2 | | Greenfield Threading | | 321.5 @ 2 |
 | Zoro | G1824343 | 373.97 | 1 | 2 | | Greenfield Threading | 3.07 | 373.97 @ 2 |
 | rshughes.com | 933678-56823 | 395.53 | 1 | 2 | | Greenfield Threading | | 395.53 @ 2 |
 | sustainablesupply.com | C2782958 | 476.84 | 1 | 2 | | Greenfield Threading | 3.07 | 476.84 @ 2 |
