- mpn385755
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

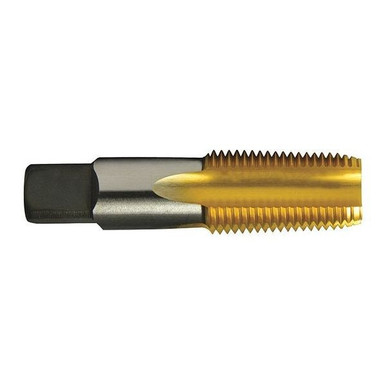

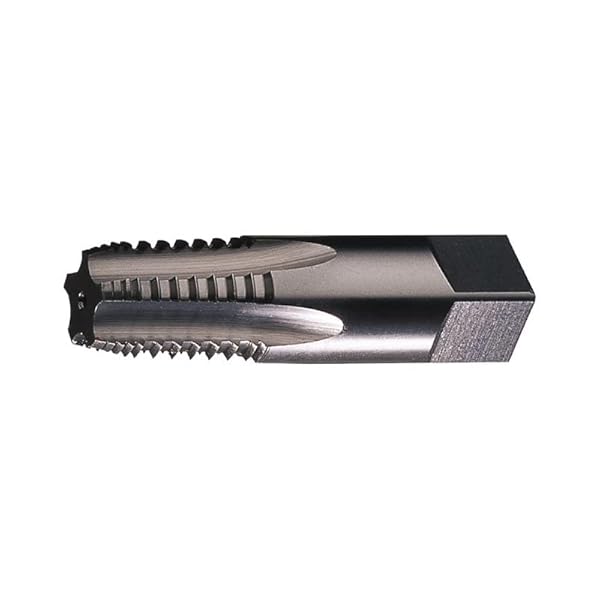

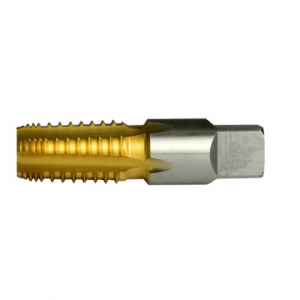

Pipe Tap, 1/8
- Brand: Greenfield Threading
- PartNumber: 385755
- PackageQuantity: 1
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | Q |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 6 per case |
| Chamfer Type | Semi-Bottoming |
| Color | Grey |
| Current Stock | 3 |
| Cutting Direction | Right Hand |
| Diameter | 0.1250" |
| Drill Bit Size | 21/64 in, Q |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Helix Angle | 0 Degrees |
| Hook Type | Medium |
| International Shipping | No |
| Item | Pipe Tap |
| List Number | PTTI |
| Material | HSS, High-Speed Steel, . |
| Material Application | M: Stainless Steel, P: . |
| Material Grade - Machin. | PTTI-TN |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | 385755 |
| Number of Flutes | 5 |
| Number of Pieces | 1 |
| Operation Type | Thru Hole |
| Overall Length | 2-1/8 in, 2-1/8", 2.125. |
| Overall Length (Metric) | 53.97mm |
| Pitch Diameter Limit | Not Rated |
| Primary Material Applic. | Stainless Steel, Steel |
| Primary Material Applic. | M, P |
| Product Type | Tapered Pipe Tap |
| Series | PTTI-TN, PTTI, Medium H. |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.438", 7/16" |
| Shank Diameter | 7/16 in |
| Shank End Feature | Square |
| Shank Length | 1 3/8 in |
| Shank Size | 0.3125", 0.4375 in |
| Shank Size (Metric) | 7.94mm |
| Shank Square Length | 0.3750" |
| Shank Square Length (Me. | 9.52mm |
| Shank Square Width | 0.2340" |
| Shank Square Width (Met. | 5.94mm |
| SKU | ZO-G1824337 |
| Spiral Direction | Neutral |
| Square Size | 0.328 in, 0.3280 in |
| Standards | USCTI Table 311 |
| Style | PTTI-TN |
| SubCategory | Machining/Threading |
| Surface Condition | Bright, TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | Yes |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Size | 1/8" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.3120" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 1/8"-27 |
| Tap Thread Type | NPTF |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread | 1/8-27 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPTF |
| Thread Length | 0.75 in, 0.7500", 3/4",. |
| Thread Length (Metric) | 19.05mm |
| Thread Pitch | 27 |
| Thread Size | 1/8", 1/8"-27, 1/8-27 N. |
| Thread Standard | NPTF |
| Threads per Inch | 27 |
| Tool Size | 1/8-27 NPTF |
| Type | Straight Flute |
| UPC | 093367857554 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1824337 | 41.35 | 1 | 23 | | Greenfield Threading | 0.08 | 41.35 @ 1 |
 | usmegastore.com | 385755 | 41.36 | 1 | In Stock | | Greenfield Threading | | 41.36 @ 1 |
 | heavydutydepot.com | 385755 | 41.36 | 3 | In Stock | | Greenfield Threading | | 41.36 @ 3 |
 | MRO Supply | 6108874 | 42.2 | 1 | In Stock | | Greenfield Threading | | 42.2 @ 1 |
 | rshughes.com | 933678-57554 | 46.51 | 1 | In Stock | | Greenfield Threading | | 46.51 @ 1 |
 | simsupply.com | ZO-G1824337 | 54.91 | 1 | 3 | | Greenfield Threading | | 54.91 @ 1 |
| grainger.ca | GNF385755 | 64.84350804 | 1 | In Stock | | GREENFIELD THREADING | 0.08 | 64.84350804 @ 1 |
 | sustainablesupply.com | C2782060 | 67.67 | 1 | In Stock | | Greenfield Threading | 0.08 | 67.67 @ 1 |
