Greenlee DM-810A

B003TO5YUA

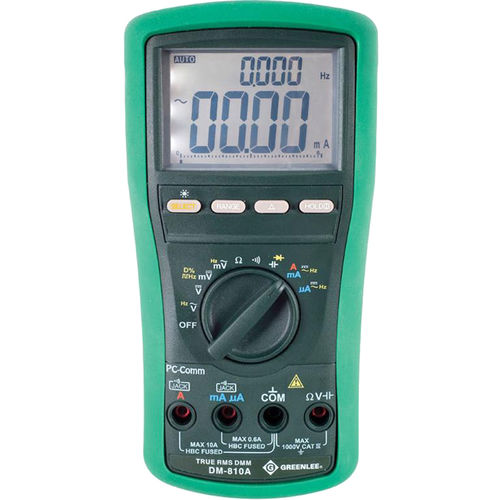

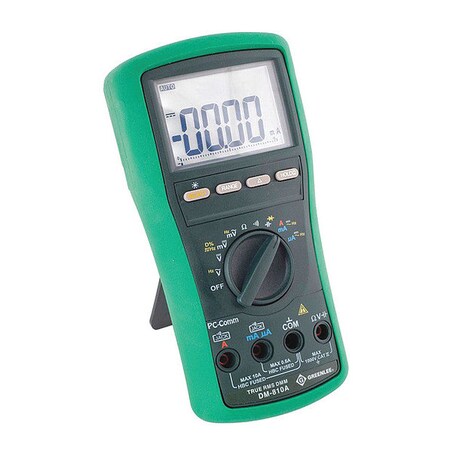

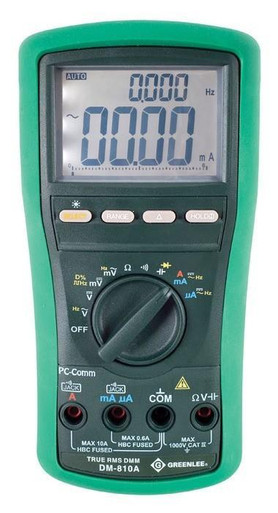

Greenlee DM-810A DMM,TRMS,AC/DC,CAP(DM-810A)

Greenlee DM-810A DMM,TRMS,AC/DC,CAP(DM-810A)zoom

Attributes

Key Value
Accuracy % (VAC)0.5 %
Accuracy % (VDC)0.06 %
Amperage Measurement:600, 6000?A; 60, 600mA;.
Auto RangingYes
BacklightYes
Battery:(1) 9 V
Capacitance0.06-25,000 ?F, 60/600 .
Capacitance:60, 600nF; 6, 60, 600?F.
Case Pack1
CategoryMultimeters, Test and M.
Conductance:99.99 nS
Continuity W/ Diode TestYes
Country of OriginTW
DescriptionDMM TRMS AC/DC CAP
Description:DMM,TRMS,AC/DC,CAP(DM-8.
Detailed DescriptionAuto/Manual True RMS Ha.
Digi-Key Part NumberDM-810A-ND
Display Count10000
Display Digits4.75
Display TypeBacklit LCD, LCD, Dual,.
Display:Backlit LCD With Dual 1.
Family SeriesGreenlee Multimeters, D.
Faucet Part FeatureCaps and Plugs
FeaturesBacklight, Hold, Record
Frequency0.015-50 kHz
Frequency Measurement:15Hz- 50kHz Sine Wave, .
FunctionVoltage, Current, Resis.
Functions, ExtraContinuity, Diode Test
Gross Weight2.45 lbs
Includes1) 9 V Battery, Bead Te.
Includes:(1) 9V Battery, Bead Te.
ItemDigital Multimeter True.
Item NumberDM-810A
ManufacturerGreenlee Textron, Green.
Manufacturer Part NumberDM-810A
Manufacturer Product Nu.DM-810A
Manufacturer Standard L.4 Weeks
Max Current (AC)10 A
Max Current (DC)10 A
Max Resistance60 MOhm
Max Voltage (AC)1,000 VAC
Max Voltage (DC)1,000 VDC
Measurement Category:CAT IV, 1000 V
Measuring Range60 mV to 999.9 VAC/VDC,.
MFG Part #:DM-810A
MfrGreenlee Communications
Net Weight2.4 lbs
NIST CertifiedNo
Number of Displayed Dig.5
PackageBulk
Package Quantity1
Part StatusActive
ProductHand Tools
Product SeriesDM-810A
Product StatusActive
Product Weight (lbs)2.4
RangingAuto/Manual
Ratings-
Replacement Part:TC-20 Carrying Case, TS.
Resistance600 Ohm, 6/60/600 kOhm,.
Resistance Measurement:600?; 6, 60, 600 k?; 6,.
ResponseTrue RMS
Safety RatingCAT IV 1000 VAC
SeriesDM, 800A
SKUDM-810A
Standard:CAT IV, C/UL US Listed,.
StyleHandheld, Multi Meter
Supplier:Greenlee
Temperature Rating-58 to 1832 deg F
Temperature Rating:K Type, -58 To 1832?F (.
Temperature ReadingsNo
Thermal ImagerNo
True RMSYes
TypeDigital (DMM), Digital
Type:Digital
UNSPSC41113630
UPC783310087434
UPC:783310087434
UseTesting
Voltage Measurement:60, 600 mV, 9.999, 99.9.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
motionindustries.com0511644875.141In StockGREENLEE75.14 @ 1
thumbzoomelectricsuppliesonline.comDM-810A163.341In StockGREENLEE163.34 @ 1
thumbzoomelectricianshop.com19498212.711In StockGreenlee Textron212.71 @ 1
ToolUp.comGREENLEE DM-810A212.711In StockGreenlee212.71 @ 1
thumbzoomZoroG4189827213.991In StockGreenlee3.0213.99 @ 1
thumbzoomPlumbersStock274418219.681In StockGreenlee2.45219.68 @ 1
thumbzoomturtle.comGRL DM-810A232.911In StockGreenlee Textron232.91 @ 1
thumbzoomDigi-Key3980837235.31In StockGreenlee Communications235.3 @ 1
thumbzoomLighting SupplyGREENLEE-DM-810A235.31In StockGreenlee2.4235.3 @ 1
thumbzoomjensentools.com474-709246.371In StockGreenlee Communications1.0246.37 @ 1
thumbzoomGalcoDM-810A-GLEE248.041In StockGreenlee2.45248.04 @ 1
thumbzoomalldataresource.com1041616249.311In StockGreenlee-Textron249.31 @ 1
thumbzoomimsbolt.comDM-810A251.771In StockGREENLEE251.77 @ 1
Dale-ElectricDM-810A264.251In StockGreenlee Textron264.25 @ 1
thumbzoomPlatt.com0849167271.811In StockGreenlee271.81 @ 1
kscdirect.comGRE DM-810A295.591In StockGREENLEE295.59 @ 1
thumbzoomedmfast.comGREDM-810A329.01In StockGreenlee329.0 @ 1
thumbzoomUnited Electric579871345.311In StockGreenlee345.31 @ 1
grainger.caGLEDM810A407.14087571In StockGREENLEE2.4407.1408757 @ 1
