- mpnHTHB-HAC8BLPV-NF
- brandname: Halsey Taylor
- manufacturername: Halsey Taylor

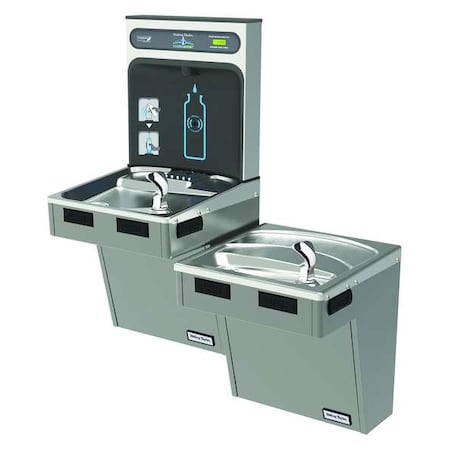

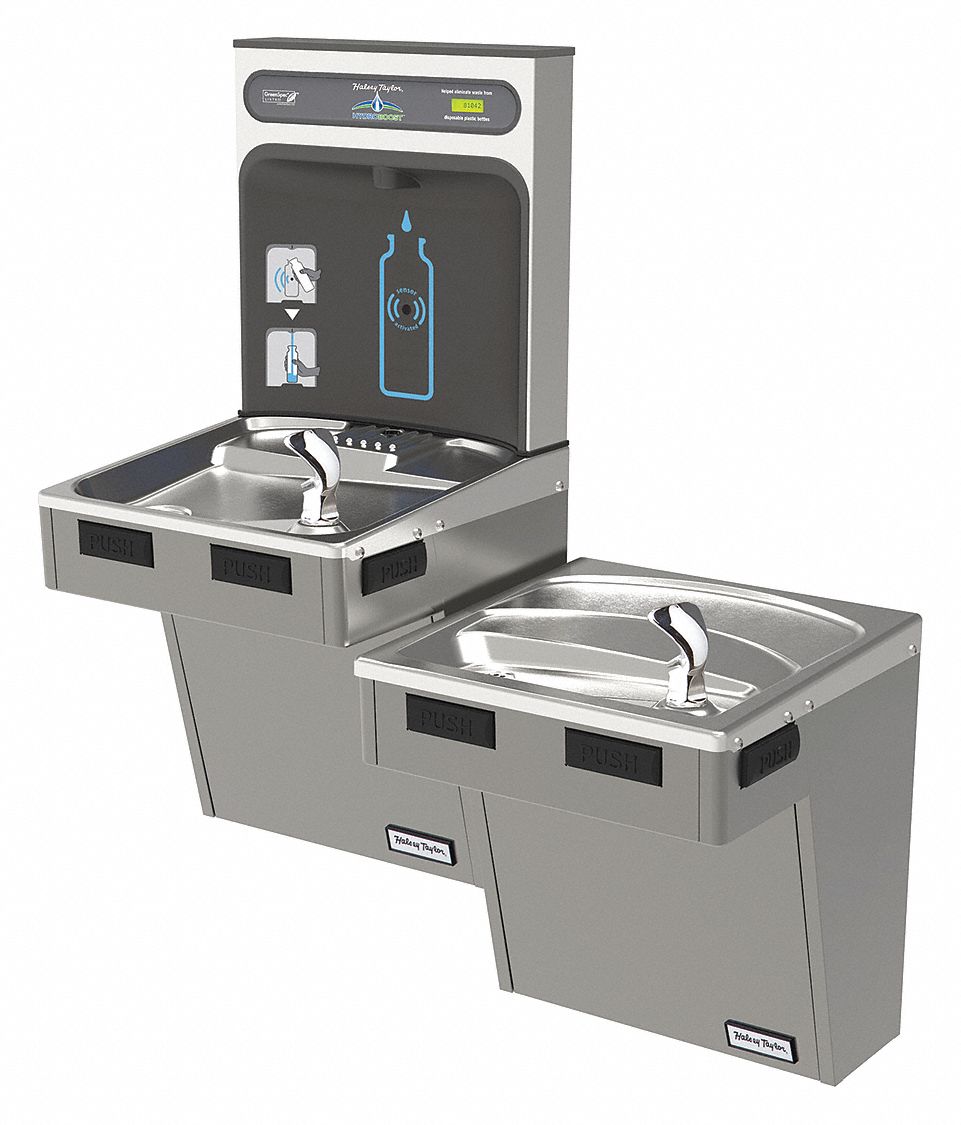

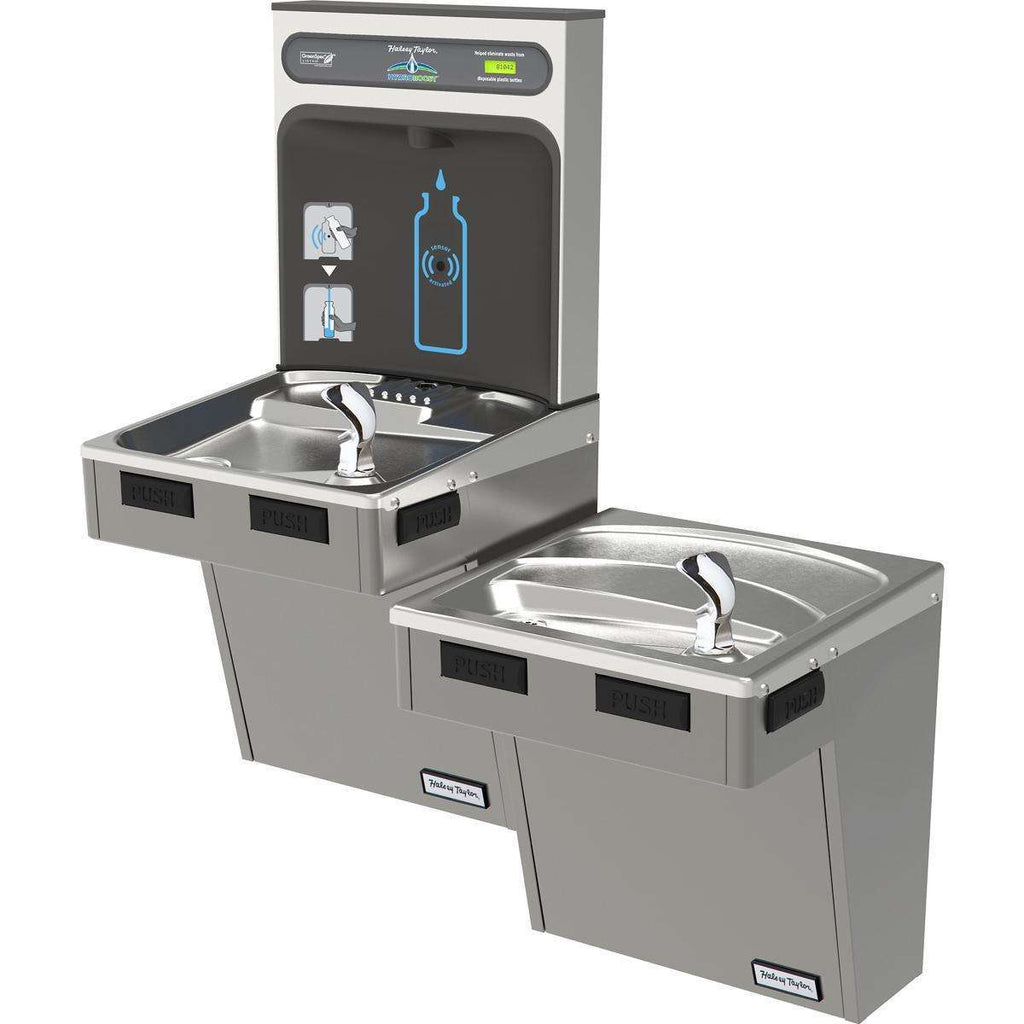

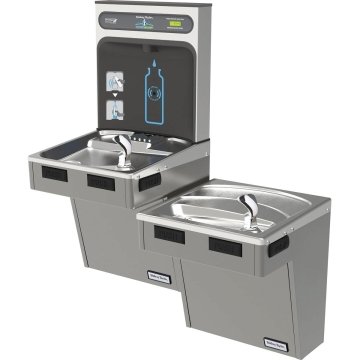

Halsey Taylor HTHB-HAC8BL-NF HydroBoost Wall Mounted Bi-Level Indoor Water, Platinum Vinyl
- Brand: Halsey Taylor
- PartNumber: HTHB-HAC8BLPV-NF
- Model: HTHB-HAC8BL-NF
- Color: Platinum Vinyl
- PackageQuantity: 1
- Manufacturer: Halsey Taylor
- Label: Halsey Taylor
Attributes
| Key | Value |
|---|
| Activation Type | Electronic Bottle Fille. |
| ADA Compliant | Yes |
| AMP | 6 |
| ANSI Specifications | ANSI 372, ANSI 61 |
| Antimicrobial | Yes |
| Application | Healthcare |
| ASME Specifications | ASME A112.19.3 |
| Bi-Level Field Adjustab. | Yes |
| Bottle Dispenser Actuat. | Sensor |
| Bottle Filler Actuation | Touchless Bottle Filler |
| Bottle Filler Depth | 3 5/8 in |
| Bottle Filler Width | 17 7/8 in |
| Brand | HALSEY TAYLOR |
| Brand Name (Brand + Sub. | HALSEY TAYLOR |
| Bubbler Style | Double Bubbler |
| Built-In Water Filter | No |
| CARB OTC LEED Compliant | No |
| Category | Water Dispenser |
| Chilling Capacity | 8 gph @ 50 Degrees F |
| Chilling Option | 8.0 GPH |
| Cold Water Capacity | 8 gph |
| Collection | HydroBoost? |
| Color | Gray |
| Color Finish | Platinum Vinyl |
| Color Finish Category | Greys |
| Color/Finish | Platinum |
| Compressor Horsepower | 1/5 hp |
| Compressor HP | 1/5 hp |
| Cooling Capacity | 8 gph @ 50 Degrees F |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| CSA Certified | CSA B45.4, CSA C22.2 No. |
| Depth | 18 5/8 in |
| Dispenser Design | Wall |
| Dispenser Operation | Electronic Sensor (Bott. |
| Drain Connection | 1 1/4 in |
| Drain Outside Diameter | 1 1/2 in |
| Drinking Fountain Opera. | Push Bar Fountain |
| Environment | Indoor |
| Features | Green Counter, Laminar . |
| Finish | Platinum Vinyl |
| Flow Rate | 8 gph |
| Fountain Actuation | Front Pushbar/Side Push. |
| Fountain and Bottle Dis. | Front Pushbar/Side Push. |
| Fountain and Bottle Fil. | Bi-Level Fountain |
| Full Load Amps | 4 A |
| Full Load Current | 6 A |
| GSA Approved | No |
| GTIN | 00094902042695 |
| Height | 46-1/4 in, 35.600, 45 5. |
| Housing Color | Silver |
| Housing Finish | Platinum Vinyl |
| Housing Material Finish | Silver Platinum Vinyl |
| IAPMO Listed | No |
| Includes | Strainer |
| Includes Back Panel | No |
| Includes Pet Bowl | No |
| Includes Water Filter | No |
| Indoor Outdoor | Indoor |
| Indoor / Outdoor | Indoor |
| Indoor/Outdoor | Indoor |
| Inlet | 3/8 in OD |
| Inlet Tube Outside Diam. | 1/4 in |
| Installation Location | Indoor |
| Installation Type | Wall Mount |
| Item | Drinking Fountain with . |
| Lead Law Compliant | Yes |
| Length | 36-1/4 in, 28.700 |
| Manufacturer Warranty L. | 1 yr Electrical Compone. |
| Manufacturers Warranty . | 5 yr on Refrigeration S. |
| Material | Stainless Steel, Metal,. |
| Maximum Cold Water Temp. | 50 Degrees F |
| Maximum Constant Stream. | 105 psi |
| Minimum Constant Stream. | 20 psi |
| Minimum Supply Line Pre. | 20 psi |
| Mount Type | Wall |
| Mounting Hole Diameter | 7/16 in |
| Mounting Type | Wall, Wall Mount (On-Wa. |
| NSF Certified | Yes |
| NSF Specifications | NSF 372, NSF 61 |
| Number Of Bowls | 1 |
| Number of Bubblers | 2 |
| Number of Levels | 2 |
| Number of Mounting Holes | 6 |
| Number of Stations | 2 Station |
| Operating Voltage | 115V AC |
| Operation | Electronic Sensor |
| Origin | Domestic |
| Overall Depth | 18 5/8 in |
| Overall Height | 46 1/4 in |
| Overall Width | 36 1/4 in |
| Package Quantity | 1 |
| Power | 115V/60Hz |
| Power Consumption | 370 W |
| Power Source | Electric Corded |
| Product Dimensions | 36-1/4 inch x 18-5/8 in. |
| Product Weight | 89 Lb |
| Rated Watts | 370 watts |
| Refrigerant | R-134A, R134a |
| Refrigerant Type | R134a |
| Refrigerated | Yes |
| Refrigerated / Non-Refr. | Refrigerated |
| Refrigeration | Refrigerated |
| Regulator | Maintains Constant Stre. |
| Self Contained Refriger. | Yes |
| Side Spray | No |
| Sink Installation Type | Drop-in |
| Size Measure | IN |
| Standards | ADA, ANSI/NSF 61, ADA &. |
| Station Type | Bi-Level Fountain, Bott. |
| Temperature Adjustment | Factory Set but Adjusta. |
| Type | Bottle Filling Station/. |
| UL Listed | UL 399 |
| UNSPSC | 48101710 |
| UPC | 094902042695 |
| UPC Code | 94902042695 |
| Vandal Resistant | No |
| Voltage | 115 V AC |
| Volts | 115V |
| Water Filter Included | Non-Filtered |
| Water Temp. | 50 Degrees F |
| Watts | 370 |
| Weight | 89.000 |
| Weight Measure | LB |
| Width | 18-5/8 in, 36 in, 24.000 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | sustainablesupply.com | C1950018 | 1339.96 | 1 | In Stock | | Halsey Taylor | 57.9 | 1339.96 @ 1 |
 | Zoro | G9003267 | 1739.0 | 1 | In Stock | 26 | Halsey Taylor | 57.9 | 1739.0 @ 1 |
 | citysupplygroup.com | HTHB-HAC8BLPV-NF | 1823.08 | 1 | In Stock | | Halsey Taylor | | 1823.08 @ 1 |
| WebstaurantStore | 438HTH8BPNF | 1939.0 | 1 | In Stock | | Halsey Taylor | | 1939.0 @ 1 |
| ferguson.com | 5113370 | 2171.4 | 1 | In Stock | | Halsey Taylor | | 2171.4 @ 1 |
 | wwcsupply.com | 379556 | 2247.83 | 1 | 2 | | Halsey Taylor | | 2247.83 @ 1 |
 | HD Supply | 837588 | 3473.0 | 1 | In Stock | | Halsey Taylor | 89.0 | 3473.0 @ 1 |
