Hamilton S-WHS-8SB

B007IA7V8Y

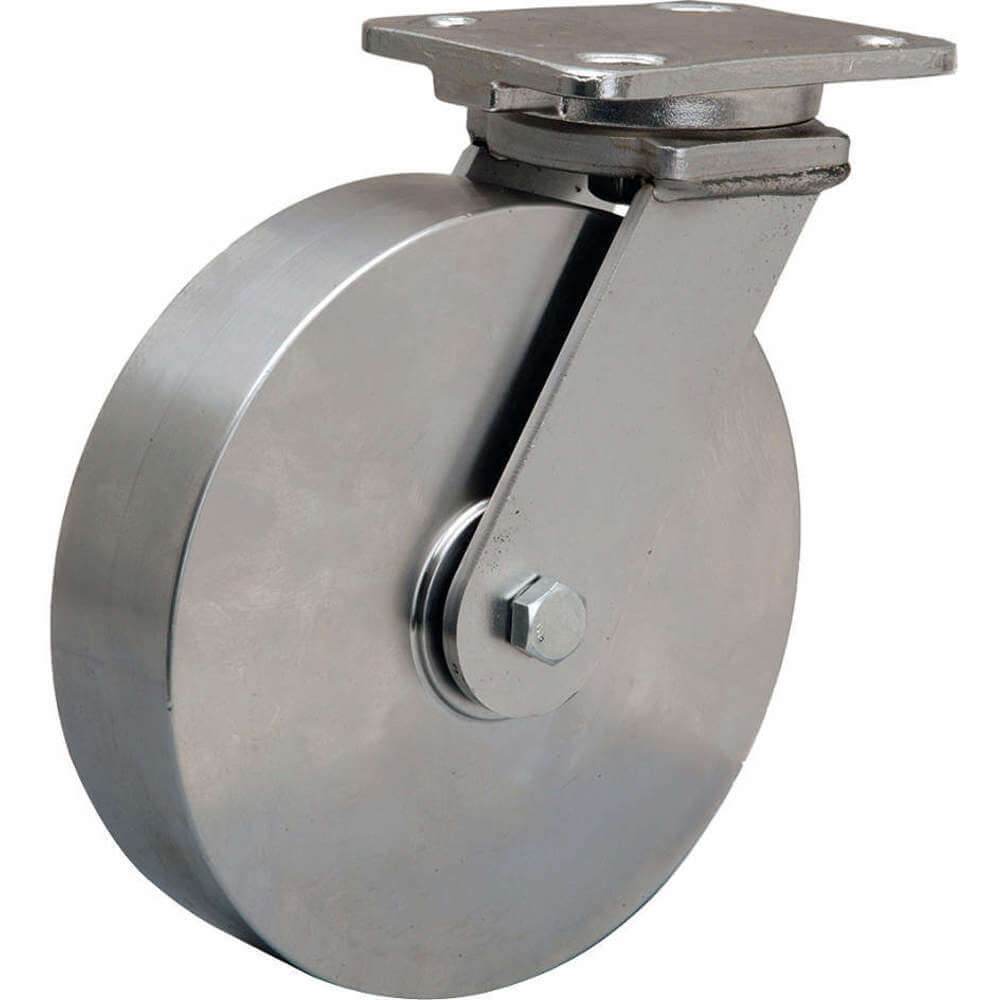

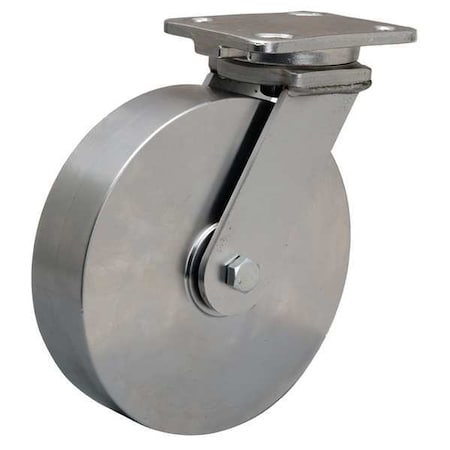

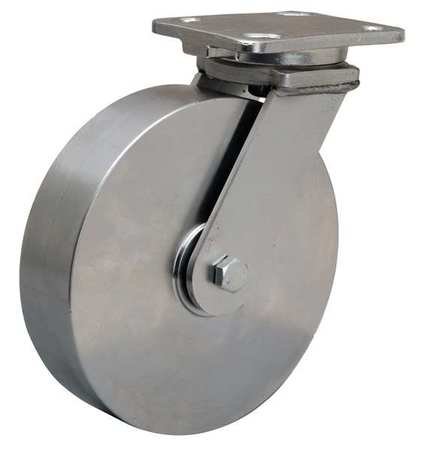

Hamilton S-WHS-8SB Swivel Caster WHS 8X2 SS Wheel 1500 Stainless

Hamilton S-WHS-8SB Swivel Caster WHS 8X2 SS Wheel 1500 Stainlesszoom

Attributes

Key Value
ApplicationStainless Steel Casters
Caster Brake IncludedNo
Caster Brake TypeNo Brake Included
Caster Core MaterialStainless Steel
Caster Frame MaterialStainless Steel
Caster Load Rating RangeMedium-Duty
Caster Max. Temp.200 Degrees F
Caster Min. Temp.-40 Degrees F
Caster Mounting TypePlate
Caster Plate Hole Patte.B
Caster Plate Size4" x 5"
Caster Plate Thickness1/4"
Caster Product GroupSwivel Caster
Caster RacewayDouble Ball
Caster Stem TypeNo Stem/Plate Included
Caster Sub-TypeSwivel
Caster Swivel Lock TypeNo Lock Included
Caster Temp. Range-40 Degrees to 200 Deg.
Caster Temp. Range Avai.Yes
Caster Wheel BearingsBall
Caster Wheel ShapeStandard
Caster Wheel/Tread Mate.Stainless Steel
Core ColorSilver
Core ColourSilver
Country of Origin (subj.United States
Durometer201 BHN
ESD ConductiveYes
Extended LeadNo
FeaturesCorrosion Resistant
For Axle Dia.1/2"
For Surface TypeConcrete
Frame ColourSilver
Frame ConstructionForged
Frame FinishStainless Steel
Frame MaterialStainless Steel
Hub Length2-1/2"
IncludesSpanner Bushing
Includes Mounting Faste.No
Includes Spanner BushingY
Includes Thread GuardsNo
Inside Bolt Hole Spacing2-5/8 in x 3-5/8 in
ItemCorrosion-Resistant Sta.
Load Rating1500 lb
Load Rating Range1000 to 2999 lb
Mounting Bolt Dia.3/8 in
Mounting Height9 1/2 in
Mounting Plate Bolt Hol.B
Mounting Plate Size4 in x 5 in
Mounting Plate Thickness1/4"
Non-MarkingYes
NSF ListedNo
Number of Mounting Holes4
Number of Wheels1
Operating Temperature R.Up to 250 Degrees F
Outside Bolt Hole Spaci.3 in x 3 in
Overall Height9-1/2"
Overall Wheel Width2"
Plate Caster Bolt Hole .B
Plate Size4" x 5"
Plate Thickness1/4"
Replacement Wheel23EP83
SeriesWorkhorse Stainless
StandardsICWM
Stem Dia.No Stem
Swivel Bearing Seal TypeOpen
Swivel ConstructionKingpin
Swivel Lead2.375
Swivel Lock TypeNo Lock Included
Swivel Raceway TypeDouble Ball
Swivel Radius6-1/2"
Thread GuardsNo
Tread ShapeStandard
Wheel Bearing MaterialSteel
Wheel Bearing TypePrecision Ball
Wheel ColorSilver
Wheel Core MaterialStainless Steel
Wheel Core TypeSolid
Wheel Dia.8 in
Wheel Width2 in
Wheel/Tread ColorSilver
Wheel/Tread ColourSilver
Wheel/Tread Hardness201 BHN
Wheel/Tread Hardness Ra.Extra Hard
Wheel/Tread MaterialStainless Steel
With Toe PlateNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2278254612.01In Stock26Hamilton33.95612.0 @ 1
grainger.caHCTSWHS8SB1233.441974461In StockHAMILTON35.01233.44197446 @ 1
motionindustries.com058650471254.71In StockHamilton Caster1254.7 @ 1
thumbzoomRaptor SuppliesAB3VHT1441.68318451In StockHAMILTON1441.6831845 @ 1
