Hamilton S-WH-8DB70

B00JUKKWA4

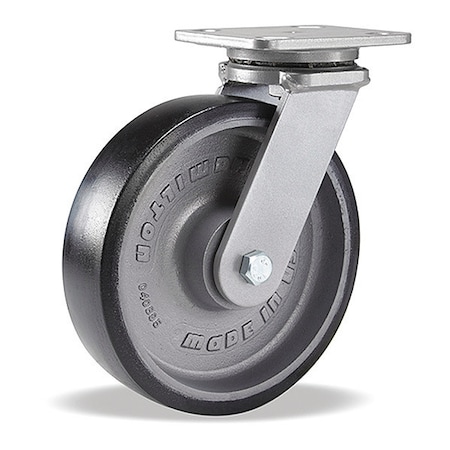

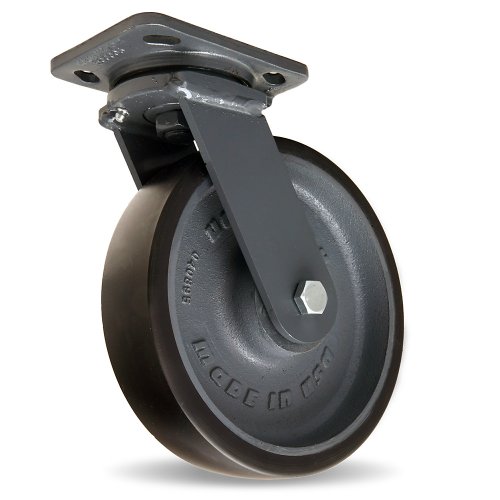

Hamilton S-WH-8DB70 Swivel Caster WH 8X2 DURALAST 70D 1950 Battleship Gray

Hamilton S-WH-8DB70 Swivel Caster WH 8X2 DURALAST 70D 1950 Battleship Grayzoom

Attributes

Key Value
ApplicationAll Purpose Industrial .
Caster Brake IncludedNo
Caster Brake TypeNo Brake Included
Caster Core MaterialCast iron
Caster Frame MaterialSteel
Caster Load Rating RangeHeavy-Duty
Caster Mounting TypePlate
Caster Stem TypeNo Stem/Plate Included
Caster Sub-TypeSwivel
Caster Temp. Range-50 to 200 deg(F)
Caster Wheel BearingsPrecision Ball
Caster Wheel ShapeStandard
Caster Wheel/Tread Mate.Polyurethane
Core ColorGray
Core ColourGray
ESD ConductiveYes
FeaturesFloor Protective
For Axle Dia.1/2"
For Surface TypeConcrete
Frame ColourPlatinum Powder
Frame ConstructionForged
Frame FinishPowder Coat
Hub Length2-1/2"
Includes Mounting Faste.No
Includes Spanner BushingY
Includes Thread GuardsNo
Inside Bolt Hole Spacing2 5/8 x 3 5/8, 2-5/8" x.
ItemSwivel Caster
Load Rating1500, 1950
Mounting Bolt Dia.3/8", 0.375
Mounting Height9.5, 9-1/2"
Mounting Plate Bolt Hol.B
Mounting Plate Size5 in x 4 in
Mounting Plate Thickness1/4"
Non-MarkingYes, No
NSF ListedNo
Number of Mounting Holes4
Number of Wheels1
Operating Temperature R.-50 Degrees F - 200 De.
Outside Bolt Hole Spaci.3" x 3"
Overall Height9-1/2"
Overall Wheel Width2"
Plate Size4 x 5
Replacement Wheel49H456, W-820-DB70-1/2
SeriesWorkhorse
StandardsICWM
Stem Dia.No Stem
Swivel Bearing Seal TypeOpen
Swivel ConstructionKingpin
Swivel Lead2.375
Swivel Lock TypeNo Lock Included
Swivel Raceway TypePrecision Ball
Swivel Radius6"
Tread ShapeStandard
Wheel Bearing MaterialSteel
Wheel Bearing TypePrecision Ball
Wheel Core MaterialCast iron
Wheel Core TypeSolid
Wheel Dia.8, 8 in
Wheel Width2, 2 in
Wheel/Tread ColourBlack
Wheel/Tread Hardness70 Shore D
Wheel/Tread Hardness Ra.Hard
Wheel/Tread MaterialPolyurethane
With Toe PlateNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1228740156.991In StockHamilton17.0156.99 @ 1
thumbzoomNational Supply Network1704202217.791In StockHamilton Casters217.79 @ 1
motionindustries.com05605971295.61In StockHamilton Caster295.6 @ 1
grainger.caHCTSWH8DB70358.352196381In StockHAMILTON17.0358.35219638 @ 1
