Attributes
| Key ^ | Value |
|---|---|
| Application | Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water. |
| Area (L x W) | 1728in? (1.115 m?) |
| Back Panel Number, Inner Panel | Included |
| Brand | Hammond Mfg. |
| Capacity | 19008 cu-in |
| Catalog Number, MFG Part #:, Part Number | 1418JS11 |
| Color | Gray |
| Container Type, Package | Box |
| Country of Origin | Canada |
| Cover Type | Hinged |
| Cubic Capacity | 19008 Cubic in |
| Depth | 11 in |
| Depth (In) | 11.00 |

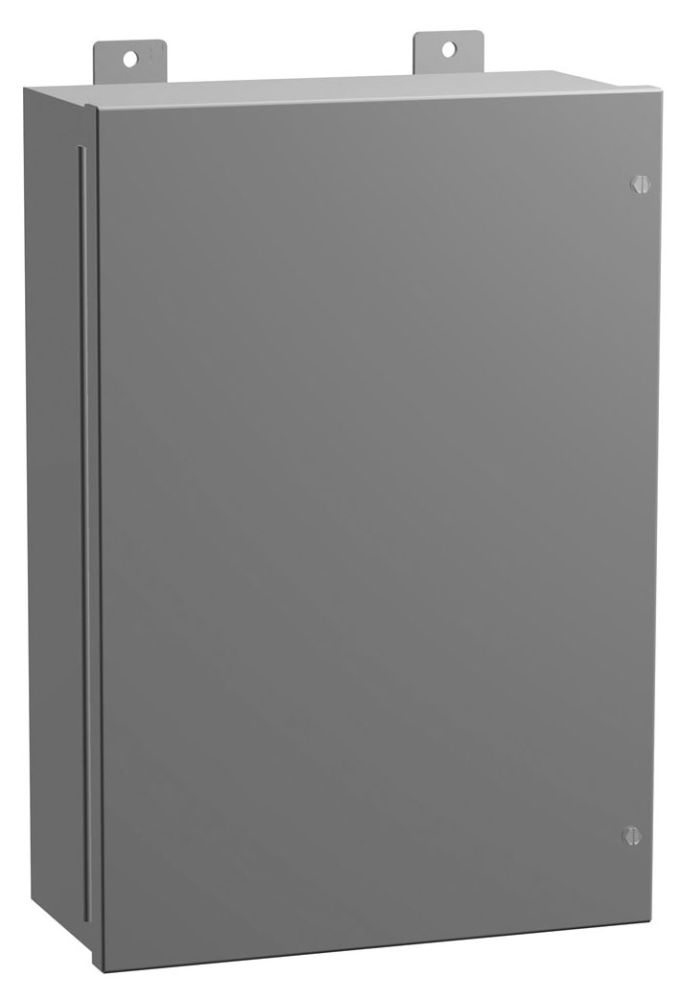

| Description: | N12 Lg JIC Encl w/panel - 48 x 36 x 11 - Steel/Gray |
| Design | Hinged Door, Lid |
| Dimensions (H x W x D) | 48 x 36 x 11" |
| Door Design | Hinged (Single Door) |
| Enclosure Series, Series | 1418J |
| Estimated Weight | 190 |
| Features | Interior Panels, Mounting Flange |
| Finish | ANSI 61 Gray, Powder Coated |
| Height | 48 in, 11.000" (279.40mm) |
| Height (In) | 48.00 |
| IEC Rating | IP54 |
| Item Type | Type 12 Mild Steel Wallmount Enclosure |
| Locking Feature | Screw |
| Made in USA | No |
| Manufacturer | Hammond Manufacturing Co., Inc. |
| Manufacturer, Mfr, Supplier: | Hammond Manufacturing |
| Material | 16 ga Mild Steel, Metal, Mild Steel, Metal, Steel |
| Material Flammability Rating | - |
| Mounting | Feet |
| Mounting, Mounting Type | Wall |
| NEMA Rating | NEMA 12/IP54 |
| Nema Rating, NEMA Rating, NEMA Type | 12 |
| Number of Doors | 1 |
| Panel Size | 45 in L x 33 in W |
| Part Status | Active |
| Ratings | IP54, JIC EGP-1-1967, NEMA 12, UL 508 |
| Series, Sub Brand | 1418J Series |
| Shipping Info | Drop shipped from the Manufacturer's Warehouse |
| Size | 48 in x 36 in x 11 in |
| Size / Dimension | 48.000" L x 36.000" W (1219.20mm x 914.40mm) |
| Special Features | Formed from 14 gauge steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Door and body stiffeners are provided in the larger enclosures for extra rigidity. Welded brackets provide for enclosure mounting. Continuously hinged cover is secured with plated screws, threaded into sealed wells. Oil resistant gaskets are permanently secured. A removable 12 gauge inner panel is included. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided on the enclosure. A literature pocket is provided for the inside of the door. |
| Standard | ul, ce |
| Standards | UL, CSA, IEC, RoHS |
| Thickness | 14 Gauge |
| Type | Junction Box, Wall Mount Enclosures |
| UPC | 062398036691 |
| UPC, UPC Code, UPC: | 623980366913 |
| Weight | 130 lbs (59 kg) |
| Width | 36 in |
| Width (In) | 36.00 |
