mpn:
brand:
manufacturer:
MPN:
Weight:
246.0
Weight:
246.0 LB
Preferred Price:
4819.71
Price:
4819.71
Min Simple Price:
2723.0
Absolute Min Price:
3866.66
Min Price:
3866.66
Dimensions:
[48.0, 36.0, 16.0]
qty:
21
simpleSku:
jgwODA:::1418N4SSS16
sku:
jgwODA::GC:1418N4SSS16@y0
condition:
11
seller:
LCOMP
amzMan:
hammond manufacturing
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem |
| Area (L x W) | 1728in? (1.115 m?) |
| Back Panel Number, Inner Panel | Included |
| Brand | Hammond Mfg. |
| Capacity | 27648 cu-in |
| Catalog Number, MFG Part #:, Part Number | 1418N4SSS16 |
| Color | Unpainted, Natural |
| Container Type, Package | Box |
| Country of Origin | Canada |
| Cover Type | Hinged |
| Cubic Capacity | 27648 Cubic in |
| Depth | 16 in |
| Depth (In) | 16.00 |

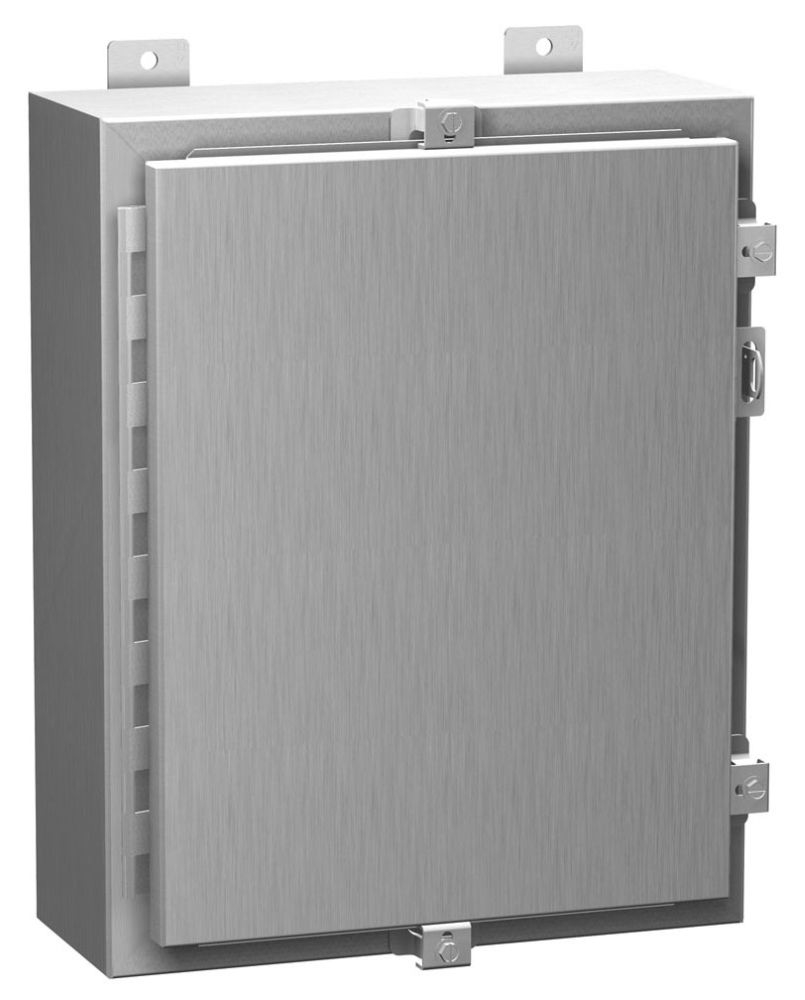

| Description: | N4X Wallmount Encl w/panel - 48 x 36 x 16 - 304 SS |
| Design | Hinged Door, Lid |
| Dimensions (H x W x D) | 48 x 36 x 16" |
| Door Design | Hinged (Single Door) |
| Enclosure Mounting | Wall Mount |
| Enclosure Series, Series | 1418 N4 SS |
| Estimated Weight | 204 |
| Features | Interior Panels, Mounting Flange |
| Finish | Smooth Brushed/Unpainted, Brushed |
| Gross Weight | 290 lbs |
| Height | 16.000" (406.40mm), 48 in |
| Height (In) | 48.00 |
| IEC Rating | IP66 |
| IP Rating | IP54 |
| Item Type | Type 4X Stainless Steel Wallmount Enclosure |
| Lock | Padlock |
| Locking Feature | Clamp |
| Made in USA | No |
| Manufacturer | Hammond Manufacturing Co., Inc. |
| Manufacturer, Mfr, Supplier: | Hammond Manufacturing |
| Material | Metal, Stainless Steel, 304 SS, Stainless Steel, 304 Stainless Steel |
| Material Flammability Rating | - |
| Mounting | Feet |
| Mounting, Mounting Type | Wall |
| NEMA Rating | NEMA 4X, NEMA 3R/13/4/4X/12/IP66, 3R, 4X, 13 |
| Nema Rating | 3R, 4X Stainless-304, 13 |
| NEMA Type | 3R, 4, 4X, 12 and 13 |
| Number of Doors | 1 |
| Panel Size | 45 in L x 33 in W |
| Part Status | Active |
| Ratings | IP66, NEMA 3R,4,4X,12,13, UL-508 |
| Series | 1418 Series |
| Shipping Info | Drop shipped from the Manufacturer's Warehouse |
| Size | 48 in x 36 in x 16 in |
| Size / Dimension | 48.000" L x 36.000" W (1219.20mm x 914.40mm) |
| Special Features | Formed 14 gauge 304 or 316 stainless steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Door stiffeners are provided in the larger enclosures for extra rigidity. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure excludes flowing liquids and contaminants. Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Provision for padlocking. Seamless poured-in place gasket. A removable 12 gauge inner panel is included. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door. |
| Standard | csa, ul, ce |
| Standards | UL, CSA, IEC, RoHS |
| Sub Brand | 1418 N4 SS Series |
| Thickness | 14 Gauge |
| Type | Junction Box, Wall Mount Enclosures |
| UPC | 062398038690 |
| UPC, UPC Code, UPC: | 623980386904 |
| Weight | 290 lbs (131.5 kg) |
| Width | 36 in |
| Width (In) | 36.00 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| LCOMP | 62398038690 | 2723.0 | 2723.0 | 1 | In Stock | Hammond | 2723.0 @ Qty: 1+ | |||
 | Carlton Bates Company | 62398038690 | 2723.13 | 2723.13 | 1 | In Stock | HAMMOND MANUFACTURING | 2723.13 @ Qty: 1+ | ||
| Hawk Electronics | 1418N4SSS16 | 3030.0 | 3030.0 | 1 | In Stock | Hammond Mfg. | 3030.0 @ Qty: 1+ | |||
 | Solutions Direct | 1418N4SSS16 | 3096.69 | 3096.69 | 1 | In Stock | Hammond Manufacturing | 3096.69 @ Qty: 1+ | ||
 | Walker Industrial | 1418N4SSS16 | 3172.84 | 3172.84 | 1 | In Stock | 17 | Hammond Manufacturing | 3172.84 @ Qty: 1+ | |
| us.rs-online.com | 70306007 | 3351.4 | 3351.4 | 1 | In Stock | Hammond Manufacturing | 3351.4 @ Qty: 1+ | |||
 | Newark | 50H5657 | 3366.33 | 3366.33 | 1 | 8 | HAMMOND | 3366.33 @ Qty: 1+ | ||
 | Galco | 1418N4SSS16-HMND | 3414.1 | 3414.1 | 1 | In Stock | Hammond Manufacturing | 290.0 | 3414.1 @ Qty: 1+ | |
| Dale-Electric | 1418N4SSS16 | 3515.28 | 3515.28 | 1 | In Stock | Hammond Manufacturing Co., Inc. | 3515.28 @ Qty: 1+ | |||
 | turtle.com | HMC 1418N4SSS16 | 3519.85 | 3519.85 | 1 | In Stock | Hammond Manufacturing | 3519.85 @ Qty: 1+ | ||
 | motorsandcontrol.com | 1418N4SSS16 | 3626.17 | 3626.17 | 1 | In Stock | Hammond Manufacturing | 204.0 | 3626.17 @ Qty: 1+ | |
 | gordonelectricsupply.com | 1418N4SSS16 | 3640.0 | 3640.0 | 1 | In Stock | HAMMOND MFG | 3640.0 @ Qty: 1+ | ||
 | Automation Direct | 1418N4SSS16 | 3708.0 | 3708.0 | 1 | 16 | Hammond | 204.0 | 3708.0 @ Qty: 1+ | |
| kscdirect.com | HAM 1418N4SSS16 | 3807.03 | 3807.03 | 1 | In Stock | Hammond Manufacturing | 3807.03 @ Qty: 1+ | |||
| AmazonTP | B005T85UGC | 4041.04 | 4041.04 | 1 | In Stock | 4 | Hammond Manufacturing | 4041.04 @ Qty: 1+ | ||
 | crescentelectric.com | 592254 | 5233.55 | 5233.55 | 1 | In Stock | Hammond Mfg. | 5233.55 @ Qty: 1+ | ||
| Guardian | HAMM-1418N4SSS16 | 6192.4 | 6192.4 | 1 | In Stock | Hammond Mfg | 6192.4 @ Qty: 1+ |
