mpn:
brand:
manufacturer:
MPN:
Weight:
240.0
Weight:
240.0 LB
Preferred Price:
5928.4
Price:
5928.4
Min Simple Price:
3349.38
Absolute Min Price:
4756.1
Min Price:
4756.1
Dimensions:
[60.0, 38.0, 12.0]
qty:
21
simpleSku:
jgwODA:::1447SN4SSL12
sku:
jgwODA::ES:1447SN4SSL12@y0
condition:
11
seller:
Carlton Bates Company
amzMan:
hammond manufacturing
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed to house the following safety disconnect equipment: ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers. Cable version for circuit breakers also available. Allen Bradley 1494V variable depth flange mounted disconnect switches and circuit breaker operators NEMA 4 rated. Will not accept Allen Bradley 1494F disconnect switches, 1494D circuit breaker operators or 1494V-R1, -R2, or -W2 operating handles). Cutler Hammer C361 variable depth flange mounted disconnect switches and C371 circuit breaker operators. Also Flex-Shaft handle mechanisms for circuit breakers. Use Cutler Hammer NEMA 4X rated operating handles to maintain NEMA 4X integrity. Siemens I-T-E Max-Flex flange mounted variable depth handles for disconnect switch and circuit breakers. Use handle for NEMA 4 rating. General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also SpectraFlex cable operators for circuit breakers. Square D Class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange mounted variable depth operating mechanism or cable mechanisms for circuit breakers. SN4SS enclosures will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices |
| Approvals | CE, CSA, UL |
| Area (L x W) | 2243in? (1.447 m?) |
| Back Panel Number, Inner Panel | Included |
| Base Product Number | 1447 |
| Brand | Hammond Mfg. |
| Capacity | 26913.6 cu-in |
| Catalog Number, Item Number, Manufacturer Part Number, Manufacturer Product Number, MFG Part #:, Part Number | 1447SN4SSL12 |
| Category | Boxes, Enclosures, Racks |
| Color | Natural |
| Color, Finish | Unpainted |
| Composition | Metallic |
| Container Type, Package | Box |
| Country of Origin | Canada |
| Cover Design, Cover Type | Hinged |
| Cubic Capacity | 26913.6 Cubic in |
| Depth | 12 in |
| Depth (In) | 12.00 |
| Description | BOX S STEEL NAT 60"L X 37.380"W |
| Description: | N4X Disconnect Encl w/panel - 60 x 37.38 x 12 - 304 SS |
| Design | Hinged Door, Lid |
| Detailed Description | Box Metal, Stainless Steel Natural Hinged Door, Lid 60.000" L x 37.380" W (1524.00mm x 949.45mm) X 12.000" (304.80mm) |
| Digi-Key Part Number | 4917-1447SN4SSL12-ND |
| Dimensions (H x W x D) | 60 x 37.38 x 12" |
| Door Design | Hinged (Single Door) |
| Enclosure Series | 1447S N4 SS |
| Estimated Weight | 240 |
| Family Series | Hammond Manufacturing Enclosures, 1447SN4 Series |
| Features | Interior Panels |
| Finish | ANSI 61 Gray |
| Gross Weight | 265 lbs |
| Height | 60 in, 12.000" (304.80mm) |
| Height (In) | 60.00 |
| IEC Rating | IP66 |

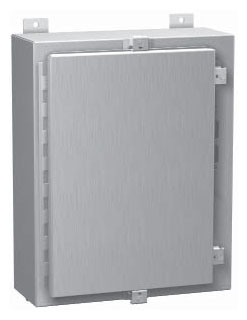

| Item Type | Type 4X Stainless Steel Wallmount Disconnect Enclosure |
| Latching Mechanism | Clamps |
| Locking Feature | Clamp |
| Made in USA, Window/Clear Cover | No |
| Manufacturer | Hammond Manufacturing Co., Inc. |
| Manufacturer, Mfr, Supplier: | Hammond Manufacturing |
| Material | Metal, Stainless Steel, 304 SS, Stainless Steel, 304 Stainless Steel |
| Material Flammability Rating | - |
| Mounting | Feet |
| Mounting, Mounting Type | Wall |
| NEMA Rating | NEMA 3R/4/4X/12/13/IP66, 3R, 4X, 13 |
| Nema Rating | 3R, 4X Stainless-304, 13 |
| NEMA Type | 3R, 4, 4X, 12 and 13 |
| Net Weight | 240.75 lbs |
| Nominal Depth | 12 " |
| Nominal Height | 60 " |
| Nominal Width | 36 " |
| Number of Doors | 1 |
| Options Included | Gasketed Cover, Ground Stud, Literature Pocket |
| Package | Case |
| Panel Included, RoHS | Yes |
| Panel Size | 57 in L x 33 in W |
| Part Status, Product Status | Active |
| Product Series, Series | 1447SN4 |
| Ratings | IP66, JIC EGP-1-1967, NEMA 3R,4,4X,12,13, UL-508 |
| Series | 1447S N4 |
| Shipping Info | Drop shipped from the Manufacturer's Warehouse |
| Size | 60 in x 37.38 in x 12 in |
| Size / Dimension | 60.000" L x 37.380" W (1524.00mm x 949.45mm) |
| Special Features | Formed 14 gauge type 304 stainless steel. Continuously welded seams. Larger sizes include door and body stiffeners. Formed lip on door and enclosure exclude flowing liquids and contaminants. Cutouts and holes are provided to suit the flange handle operating mechanism. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Cover interlock bracket is welded to the door. Collar studs are provided for mounting inner panels. A removable 12 gauge inner panel is included. Seamless poured-in place gasket. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door. |
| Standard | csa, ul, ce |
| Standards | UL, CSA, IEC, RoHS |
| Sub Brand | 1447S N4 SS Series |
| Thickness | 14 Gauge |
| Type | Wall Mount Flange Disconnect Enclosures |
| UPC | 062398041043 |
| UPC, UPC: | 623980410432 |
| Weight | 265 lbs (120.2 kg) |
| Width | 37.38 in |
| Width (In) | 37.38 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Carlton Bates Company | 62398041043 | 3349.38 | 3349.38 | 1 | In Stock | HAMMOND MANUFACTURING | 3349.38 @ Qty: 1+ | ||
 | turtle.com | HMC 1447SN4SSL12 | 3663.19 | 3663.19 | 1 | In Stock | Hammond Manufacturing | 3663.19 @ Qty: 1+ | ||
| Hawk Electronics | 1447SN4SSL12 | 3730.0 | 3730.0 | 1 | In Stock | Hammond Mfg. | 3730.0 @ Qty: 1+ | |||
 | Solutions Direct | 1447SN4SSL12 | 3809.46 | 3809.46 | 1 | In Stock | Hammond Manufacturing | 3809.46 @ Qty: 1+ | ||
 | Walker Industrial | 1447SN4SSL12 | 3903.14 | 3903.14 | 1 | In Stock | 17 | Hammond Manufacturing | 3903.14 @ Qty: 1+ | |
 | gordonelectricsupply.com | 1447SN4SSL12 | 4010.0 | 4010.0 | 1 | In Stock | HAMMOND MFG | 4010.0 @ Qty: 1+ | ||
 | Galco | 1447SN4SSL12-HMND | 4199.93 | 4199.93 | 1 | In Stock | Hammond Manufacturing | 265.0 | 4199.93 @ Qty: 1+ | |
| Dale-Electric | 1447SN4SSL12 | 4324.39 | 4324.39 | 1 | In Stock | Hammond Manufacturing Co., Inc. | 4324.39 @ Qty: 1+ | |||
 | motorsandcontrol.com | 1447SN4SSL12 | 4460.81 | 4460.81 | 1 | In Stock | Hammond Manufacturing | 240.0 | 4460.81 @ Qty: 1+ | |
 | Newark | 26H7390 | 4475.74 | 4475.74 | 1 | In Stock | HAMMOND | 4475.74 @ Qty: 1+ | ||
| kscdirect.com | HAM 1447SN4SSL12 | 4683.3 | 4683.3 | 1 | In Stock | Hammond Manufacturing | 4683.3 @ Qty: 1+ | |||
| AmazonTP | B005T6RQES | 5067.45 | 5067.45 | 1 | In Stock | 4 | Hammond Manufacturing | 5067.45 @ Qty: 1+ | ||
 | Digi-Key | 2359887 | 5204.65 | 5204.65 | 1 | 1 | Hammond Manufacturing | 265.0 | 5204.65 @ Qty: 1+ | |
 | crescentelectric.com | 1214316 | 6438.16 | 6438.16 | 1 | In Stock | Hammond Mfg. | 6438.16 @ Qty: 1+ | ||
| Guardian | HAMM-1447SN4SSL12 | 7616.5 | 7616.5 | 1 | In Stock | Hammond Mfg | 7616.5 @ Qty: 1+ |
