HAMMOND 161FA20

B005T7Q2NS

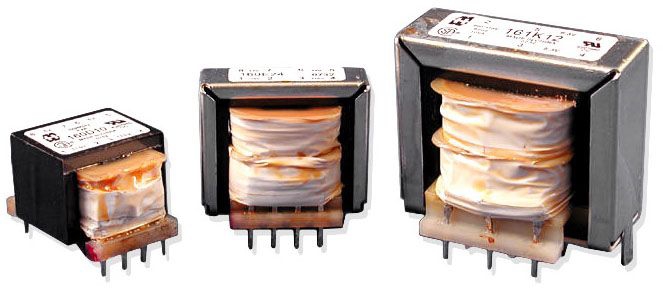

Hammond Bobbins Transformer - 161FA20

Hammond Bobbins Transformer - 161FA20zoom

Attributes

Key Value
0.34 lbsWeight (lb.)
1Case Quantity
1.25''Width (in)
1.45''Height (in)
1.69''Length (in)
115V 60HzFirst Voltage
161FA20Stock Code
4.4VAPower Rating (VA)
62398021410UPC
Alternate Part No.546-161FA20
ApprovalsCSA, UL
BrandHammond Manufacturing
CategoryTransformers
Center TapNo
CSA, ULUL Listed
Current - Output (Max)Parallel 440mA, Series .
DescriptionPWR XFMR LAMINATED 4.4V.
Description:POWER TX 4.4VA 115V
Digi-Key Part NumberHM4198-ND
Family SeriesHammond Manufacturing T.
For additional options .Notes
Gross Weight0.445 lbs
HammondBrand
Height1.45 in
Height - Seated (Max)36.83mm
Insulation ClassClass B
Item Number161FA20
Length1.25 in
ManufacturerHammond Manufacturing C.
Manufacturer Part No.161FA20
Manufacturer Part Number161FA20
Manufacturer Product Nu.161FA20
Manufacturer Standard L.12 Weeks
MFG Part #:161FA20
MfrHammond Manufacturing
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Net Weight0.37 lbs
Operating Temperature R.0 C to + 130 C
P.C. Board Mount Vertic.Mounting
PackageBulk
Part StatusActive
Power - Max4.4VA
Power Rating4.4 VA
Power TransformersFamily
Primary Voltage115 V
Primary Voltage Rating115 V
Primary WindingSingle Primary Winding
Primary Winding(s)Single
ProductPCB Mount Transformers
Product CategoryPower Transformers
Product Series161
Product StatusActive
RoHSYes
Secondary Voltage20 V
Secondary Voltage Rating20 V CT
Secondary WindingDual Secondary Winding
Secondary Winding(s)Single, Multiple Taps
Series161
Series : 20V C.T. @ 220.Secondary Voltage
Size / Dimension42.93mm L x 31.75mm W
Supplier:Hammond Manufacturing
TerminationPins
Termination StylePC Pin, Solder Pin
TypeLaminated Core, Low Vol.
UPC062398021410
UPC:62398021410
VA Rating1.1 VA
Voltage - Isolation2000Vrms
Voltage - Primary115V
Voltage - Secondary (Fu.Parallel 10V, Series 20V
Weight0.34 lb (154.22 g)
Width1.69 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com161FA208.061In StockHAMMOND MFG8.06 @ 1
thumbzoomCarlton Bates Company623980214108.611In StockHAMMOND MANUFACTURING8.61 @ 1
Hawk Electronics161FA209.21In StockHammond Mfg.9.2 @ 1
thumbzoomWalker Industrial161FA209.51In Stock17Hammond Manufacturing9.5 @ 1
Dale-Electric161FA2010.51In StockHammond Manufacturing Co., Inc.10.5 @ 1
thumbzoomgordonelectricsupply.com161FA2010.991In StockHAMMOND MFG10.99 @ 1
kscdirect.comHAM 161FA2011.41In StockHammond Manufacturing11.4 @ 1
thumbzoomGalco161FA20-HMND12.671In StockHammond Manufacturing0.44512.67 @ 1
thumbzoombulbspro.com161FA2015.21In StockHammond15.2 @ 1
thumbzoomDigi-Key45482715.35110Hammond Manufacturing0.3415.35 @ 1
thumbzoomNewark66F759415.871101HAMMOND15.87 @ 1
thumbzoomswatee.com161FA2016.5811Hammond16.58 @ 1
