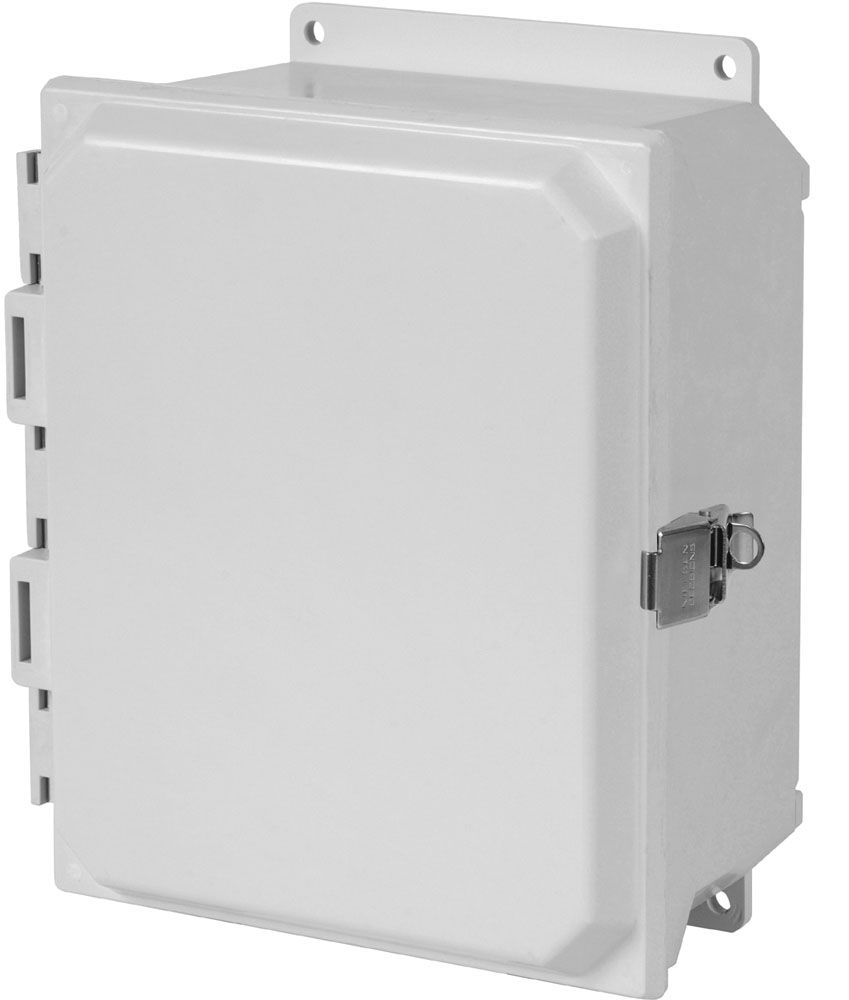

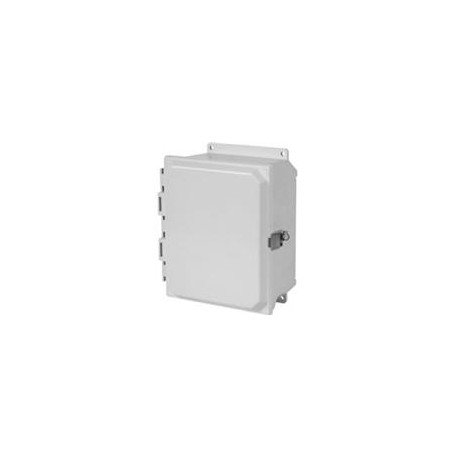

Hammond Manufacturing PJU16148LF

B00DED3782

Hammond Manufacturing PJU16148LF NONMET HNG SNAP L LAN

Hammond Manufacturing PJU16148LF NONMET HNG SNAP L LANzoom

Attributes

Key Value
ApplicationDesigned for use as ins.
ApprovalsCSA, UL
Approximate Depth8" (203mm)
Approximate Height16" (406mm)
Approximate Width14" (356mm)
Area (L x W)243in? (1568cm?)
Back Panel Number14R1513
Base Product NumberPJU16148
BrandHammond Mfg.
Capacity1862.04 cu-in
Catalog NumberPJU16148LF
CategoryBoxes, Enclosures, Racks
ColorGray
CompositionNon-Metallic
ConfigurationWithout Knock-Outs
Container TypeBox
Country of OriginUnited States
Cover DesignHinged
Cover TypeClear/Continuous Hinged.
Cubic Capacity1862.042355 Cubic in
Depth8.13 in
Depth (In)8.13
DescriptionBOX FIBERGLASS GRY 16.5.
Description:N4X Solid Door Snap Lat.
DesignHinged Door, Lid
Detailed DescriptionBox Fiberglass/Polyeste.
Digi-Key Part NumberPJU16148LF-ND
Dimensions16.05 x 14.27 x 8.13 . .
Dimensions (H x W x D)16.05 x 14.27 x 8.13"
Door DesignHinged (Single Door)
Enclosure MountingPanel Mount
Enclosure SeriesPJU
Estimated Weight12
Family SeriesHammond Manufacturing E.
FeaturesMounting Flange, PCB Su.
FinishGray
Gross Weight12 lbs
Height16.05 in, 9.010" (228.8.
Height (In)16.05
IEC RatingIP66
Inner PanelSold Separately
IP RatingIP66
Item NumberPJU16148LF
Item TypeType 4X Polyester Junct.
Latching MechanismPadlockable Latch
LockSnap Latch
Locking FeatureLatch
Made in USAYes
ManufacturerHammond Manufacturing C.
Manufacturer Part NumberPJU16148LF
Manufacturer Product Nu.PJU16148LF
Manufacturer Standard L.4 Weeks
MaterialFiberglass, Polyester, .
Material Flammability R.-
MFG Part #:PJU16148LF
MfrHammond Manufacturing
MountingWall, Flange
Mounting TypeWall
Nema Rating3R, 4X Fiberglass, 13
NEMA RatingNEMA 3R/4X/13, NEMA 1 ;.
NEMA Type4, 4X, 12 and 13
Net Weight12 lbs
Nominal Depth8 "
Nominal Height16 "
Nominal Width14 "
Number of Doors1
Options IncludedFlanged, Gasketed Cover
PackageBox
Panel IncludedNo
Panel Size14.75 in H x 12.88 in W
Part NumberPJU16148LF
Product SeriesPJU
Product StatusActive
RatingsIP66, NEMA 1,2,3,4,4X,1.
RoHSYes
SeriesPJU, PJU Series
Shipping InfoShipped from Digi-Key
Size16.05 in x 14.27 in x 8.
Size / Dimension16.500" L x 14.720" W (.
Special FeaturesMolded fiberglass polye.
Standardcsa, ul, ce
StandardsUL, CSA, IEC, RoHS
Sub BrandPJU Series
Supplier:Hammond Manufacturing
Temperature Rating-40 to 266 deg F
Thickness-
TypeFlanged, Junction Box
UPC623980020679, 062398002.
UPC Code623980020679
UPC:623980020679
Weight11 lbs (5 kg)
Width14.27 in
Width (In)14.27
Window/Clear CoverNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comPJU16148LF139.01In StockHAMMOND MFG139.0 @ 1
thumbzoomturtle.comHMC PJU16148LF167.181In StockHammond Manufacturing167.18 @ 1
thumbzoomCarlton Bates Company62398002067171.511In StockHAMMOND MANUFACTURING171.51 @ 1
AmazonTPB00DED3782175.771In Stock4Hammond Manufacturing175.77 @ 1
thumbzoomSolutions DirectPJU16148LF205.231In StockHammond Manufacturing205.23 @ 1
thumbzoomWalker IndustrialPJU16148LF210.291In Stock17Hammond Manufacturing210.29 @ 1
Dale-ElectricPJU16148LF212.111In StockHammond Manufacturing Co., Inc.212.11 @ 1
Hawk ElectronicsPJU16148LF213.21In StockHammond Mfg.213.2 @ 1
standardelectricsupply.com2413343218.481In StockHammond Manufacturing218.48 @ 1
thumbzoomgordonelectricsupply.comPJU16148LF220.01In StockHAMMOND MFG220.0 @ 1
thumbzoomDigi-Key2569965237.881In StockHammond Manufacturing11.0237.88 @ 1
thumbzoomGalcoPJU16148LF-HMND240.321In StockHammond Manufacturing12.0240.32 @ 1
thumbzoommotorsandcontrol.comPJU16148LF240.331In StockHammond Manufacturing12.0240.33 @ 1
Airline HydraulicsPJU16148LF242.71169Hammond Manufacturing242.71 @ 1
kscdirect.comHAM PJU16148LF252.311In StockHammond Manufacturing252.31 @ 1
Newark50R4693252.35149HAMMOND252.35 @ 1
us.rs-online.com70165391275.97114Hammond Manufacturing275.97 @ 1
thumbzoomcrescentelectric.com505908346.871In StockHammond Mfg.346.87 @ 1
