mpn:
brand:
manufacturer:
MPN:
Description:

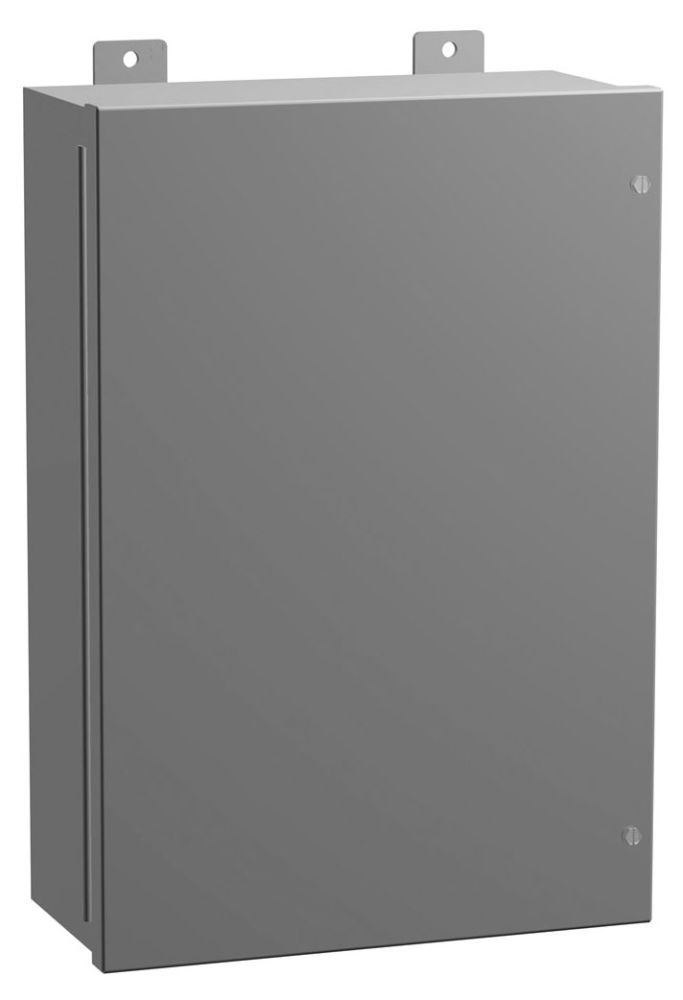

N12 Lg JIC Encl w/panel - 20 x 16 x 9 - Steel/Gray
Weight:
2.625
Weight:
42.0 LB
Preferred Price:
515.14
Price:
515.14
Min Simple Price:
291.04
Absolute Min Price:
413.27
Min Price:
413.27
Dimensions:
[20.0, 16.0, 9.0]
qty:
21
simpleSku:
jgwODA:::1418JC9
sku:
jgwODA::8O:1418JC9@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
hammond manufacturing
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water. |
| Approvals | CE, UL |
| Approximate Depth | 9" (229mm) |
| Approximate Height | 20" (508mm) |
| Approximate Width | 16" (406mm) |
| Area (L x W) | 320in? (2065cm?) |
| Back Panel Number, Inner Panel | Included |
| Base Product Number | 1418 |
| Brand | Hammond Mfg. |
| Capacity | 2880 cu-in |
| Catalog Number, Item Number, Manufacturer Part Number, Manufacturer Product Number, MFG Part #:, Part Number | 1418JC9 |
| Category | Boxes, Enclosures, Racks |
| Color | Gray |
| Composition | Metallic |
| Configuration | Without Knock-Outs |
| Container Type | Box |
| Country of Origin | Canada |
| Cover Design | Hinged |
| Cover Type | Continuous Hinged/Screw |
| Cubic Capacity | 2880 Cubic in |
| Depth | 9 in |
| Depth (In) | 9.00 |
| Description | BOX STEEL GRAY 20"L X 16"W |
| Description: | N12 Lg JIC Encl w/panel - 20 x 16 x 9 - Steel/Gray |
| Design | Hinged Door, Lid |
| Detailed Description | Box Metal, Steel Gray Hinged Door, Lid 20.000" L x 16.000" W (508.00mm x 406.40mm) X 9.000" (228.60mm) |
| Digi-Key Part Number | 1418JC9-ND |
| Dimensions | 20 x 16 x 9 . ; 508 x 406 x 229 in ; mm |
| Dimensions (H x W x D) | 20 x 16 x 9" |
| Door Design | Hinged (Single Door) |
| Enclosure Mounting | Panel Mount |
| Enclosure Series, Product Series, Series | 1418J |
| Estimated Weight | 42 |
| Family Series | Hammond Manufacturing Enclosures, 1418J Series |
| Features | Interior Panels, Mounting Flange |
| Finish | ANSI 61 Gray, Powder Coated |
| Gross Weight, Net Weight | 42 lbs |
| Height | 20 in, 9.000" (228.60mm) |
| Height (In) | 20.00 |
| IEC Rating, IP Rating | IP54 |
| Item Type | Type 12 Mild Steel Wallmount Enclosure |
| Latching Mechanism | Screws |
| Locking Feature | Screw |
| Made in USA, Window/Clear Cover | No |
| Manufacturer | Hammond Manufacturing Co., Inc. |
| Manufacturer, Mfr, Supplier: | Hammond Manufacturing |
| Material | Steel, Metal, Mild Steel, Metal, Steel |
| Material Flammability Rating | - |
| Mounting | Feet |
| Mounting, Mounting Type | Wall |
| NEMA Rating | NEMA 12 |
| NEMA Rating, Nema Rating, NEMA Type | 12 |
| Nominal Depth | 9 " |
| Nominal Height | 20 " |
| Nominal Width | 16 " |
| Number of Doors | 1 |
| Options Included | Gasketed Cover, Ground Stud, Literature Pocket |
| Package | Bulk |
| Panel Included, RoHS | Yes |
| Panel Size | 13 in W x 17 in H |
| Product Status | Active |
| Ratings | IP54, JIC EGP-1-1967, NEMA 12, UL 508 |
| Series, Sub Brand | 1418J Series |
| Shipping Info | Shipped from Digi-Key |
| Size | Medium, 20 in x 16 in x 9 in |
| Size / Dimension | 20.000" L x 16.000" W (508.00mm x 406.40mm) |
| Special Features | Formed from 14 gauge steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Door and body stiffeners are provided in the larger enclosures for extra rigidity. Welded brackets provide for enclosure mounting. Continuously hinged cover is secured with plated screws, threaded into sealed wells. Oil resistant gaskets are permanently secured. A removable 12 gauge inner panel is included. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided on the enclosure. A literature pocket is provided for the inside of the door., Hinged ; Inner Panel |
| Standard | ul, ce |
| Standards | UL, CSA, IEC, RoHS |
| Thickness | 14 Gauge |
| Type | Flanged, 1-Door Large, Wall Mount Enclosures |
| UPC | 062398037680 |
| UPC, UPC Code, UPC: | 623980376806 |
| Weight | 42 lbs (19.1 kg) |
| Width | 16 in |
| Width (In) | 16.00 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 1418JC9 | 291.04 | 291.04 | 1 | In Stock | HAMMOND MFG | 291.04 @ Qty: 1+ | |||
 | Carlton Bates Company | 62398037680 | 355.3 | 355.3 | 1 | In Stock | HAMMOND MANUFACTURING | 355.3 @ Qty: 1+ | ||
| AmazonTP | B005T8748O | 406.0 | 406.0 | 1 | In Stock | 5 | Hammond Manufacturing | 406.0 @ Qty: 1+ | ||
 | Solutions Direct | 1418JC9 | 407.28 | 407.28 | 1 | In Stock | Hammond Manufacturing | 407.28 @ Qty: 1+ | ||
 | Digi-Key | 498811 | 411.88 | 411.88 | 1 | In Stock | Hammond Manufacturing | 42.0 | 411.88 @ Qty: 1+ | |
| Newark | 24B6117 | 415.95 | 415.95 | 1 | 17 | HAMMOND | 415.95 @ Qty: 1+ | |||
| Hawk Electronics | 1418JC9 | 416.3 | 416.3 | 1 | In Stock | Hammond Mfg. | 416.3 @ Qty: 1+ | |||
 | Walker Industrial | 1418JC9 | 417.3 | 417.3 | 1 | In Stock | 17 | Hammond Manufacturing | 417.3 @ Qty: 1+ | |
| Airline Hydraulics | 1418JC9 | 420.29 | 420.29 | 1 | 18 | Hammond Manufacturing | 420.29 @ Qty: 1+ | |||
| us.rs-online.com | 70164938 | 433.16 | 433.16 | 1 | In Stock | Hammond Manufacturing | 433.16 @ Qty: 1+ | |||
| Dale-Electric | 1418JC9 | 462.34 | 462.34 | 1 | In Stock | Hammond Manufacturing Co., Inc. | 462.34 @ Qty: 1+ | |||
 | turtle.com | HMC 1418JC9 | 466.6 | 466.6 | 1 | In Stock | Hammond Manufacturing | 466.6 @ Qty: 1+ | ||
 | Automation Direct | 1418JC9 | 471.0 | 471.0 | 1 | 10 | Hammond | 42.0 | 471.0 @ Qty: 1+ | |
 | motorsandcontrol.com | 1418JC9 | 476.92 | 476.92 | 1 | In Stock | Hammond Manufacturing | 42.0 | 476.92 @ Qty: 1+ | |
 | Galco | 1418JC9-HMND | 477.52 | 477.52 | 1 | In Stock | Hammond Manufacturing | 42.0 | 477.52 @ Qty: 1+ | |
 | gordonelectricsupply.com | 1418JC9 | 480.0 | 480.0 | 1 | In Stock | HAMMOND MFG | 480.0 @ Qty: 1+ | ||
| kscdirect.com | HAM 1418JC9 | 500.7 | 500.7 | 1 | In Stock | Hammond Manufacturing | 500.7 @ Qty: 1+ | |||
 | crescentelectric.com | 237220 | 701.34 | 701.34 | 1 | In Stock | Hammond Mfg. | 701.34 @ Qty: 1+ |
