mpn:
brand:
manufacturer:
MPN:
Description:

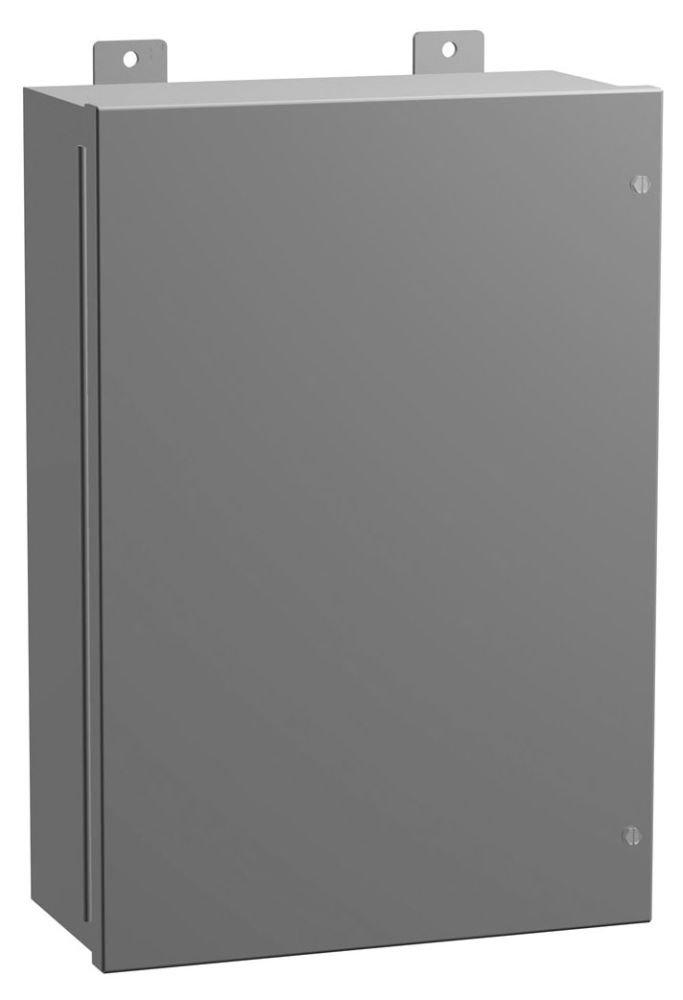

N12 Lg JIC Encl w/panel - 24 x 24 x 7 - Steel/Gray
Weight:
63.0
Weight:
63.0 LB
Preferred Price:
671.64
Price:
671.64
Min Simple Price:
379.46
Absolute Min Price:
538.83
Min Price:
538.83
Dimensions:
[24.0, 24.0, 7.0]
qty:
21
simpleSku:
jgwODA:::1418JJ7
sku:
jgwODA::DE:1418JJ7@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
hammond manufacturing
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water. |
| Back Panel Number, Inner Panel | Included |
| Brand | Hammond Mfg. |
| Capacity | 4032 cu-in |
| Catalog Number, MFG Part #:, Part Number | 1418JJ7 |
| Color | Gray |
| Country of Origin | Canada |
| Cover Type | Continuous Hinged/Screw |
| Cubic Capacity | 4032 Cubic in |
| Depth | 7 in |
| Depth (In) | 7.00 |
| Description: | N12 Lg JIC Encl w/panel - 24 x 24 x 7 - Steel/Gray |
| Dimensions (H x W x D) | 24 x 24 x 7" |
| Door Design | Hinged (Single Door) |
| Enclosure Series, Series | 1418J |
| Estimated Weight | 63 |
| Finish | ANSI 61 Gray, Powder Coated |
| Height (In), Width (In) | 24.00 |
| Height, Width | 24 in |
| IEC Rating | IP54 |
| Item Type | Type 12 Mild Steel Wallmount Enclosure |
| Locking Feature | Screw |
| Made in USA | No |
| Manufacturer | Hammond Manufacturing Co., Inc. |
| Manufacturer, Supplier: | Hammond Manufacturing |
| Material | Metal, Mild Steel |
| Mounting | Feet |
| Mounting, Mounting Type | Wall |
| NEMA Rating | NEMA 12 |
| NEMA Rating, Nema Rating, NEMA Type | 12 |
| Number of Doors | 1 |
| Panel Size | 21 in W x 21 in H |
| Size | 24 in x 24 in x 7 in |
| Special Features | Formed from 14 gauge steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Door and body stiffeners are provided in the larger enclosures for extra rigidity. Welded brackets provide for enclosure mounting. Continuously hinged cover is secured with plated screws, threaded into sealed wells. Oil resistant gaskets are permanently secured. A removable 12 gauge inner panel is included. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided on the enclosure. A literature pocket is provided for the inside of the door. |
| Standard | ul, ce |
| Standards | UL, CSA, IEC, RoHS |
| Sub Brand | 1418J Series |
| Type | 1-Door Large, Wall Mount Enclosures |
| UPC | 062398037750 |
| UPC, UPC: | 623980377506 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 1418JJ7 | 379.46 | 379.46 | 1 | In Stock | HAMMOND MFG | 379.46 @ Qty: 1+ | |||
 | Carlton Bates Company | 62398037750 | 463.21 | 463.21 | 1 | In Stock | HAMMOND MANUFACTURING | 463.21 @ Qty: 1+ | ||
 | Solutions Direct | 1418JJ7 | 530.99 | 530.99 | 1 | In Stock | Hammond Manufacturing | 530.99 @ Qty: 1+ | ||
| Hawk Electronics | 1418JJ7 | 534.0 | 534.0 | 1 | In Stock | Hammond Mfg. | 534.0 @ Qty: 1+ | |||
 | Walker Industrial | 1418JJ7 | 544.05 | 544.05 | 1 | In Stock | 17 | Hammond Manufacturing | 544.05 @ Qty: 1+ | |
 | Newark | 24B6125 | 558.13 | 558.13 | 1 | 12 | HAMMOND | 558.13 @ Qty: 1+ | ||
| Dale-Electric | 1418JJ7 | 602.77 | 602.77 | 1 | In Stock | Hammond Manufacturing Co., Inc. | 602.77 @ Qty: 1+ | |||
 | turtle.com | HMC 1418JJ7 | 608.32 | 608.32 | 1 | In Stock | Hammond Manufacturing | 608.32 @ Qty: 1+ | ||
 | Automation Direct | 1418JJ7 | 613.0 | 613.0 | 1 | 6 | Hammond | 63.0 | 613.0 @ Qty: 1+ | |
 | motorsandcontrol.com | 1418JJ7 | 621.78 | 621.78 | 1 | In Stock | Hammond Manufacturing | 63.0 | 621.78 @ Qty: 1+ | |
 | gordonelectricsupply.com | 1418JJ7 | 625.0 | 625.0 | 1 | In Stock | HAMMOND MFG | 625.0 @ Qty: 1+ | ||
| kscdirect.com | HAM 1418JJ7 | 652.79 | 652.79 | 1 | In Stock | Hammond Manufacturing | 652.79 @ Qty: 1+ | |||
| Guardian | HAMM-1418JJ7 | 859.19 | 859.19 | 1 | In Stock | Hammond Mfg | 859.19 @ Qty: 1+ | |||
| Airline Hydraulics | 1418JJ7 | 884.47 | 884.47 | 1 | 14 | Hammond Manufacturing | 884.47 @ Qty: 1+ | |||
 | crescentelectric.com | 447938 | 914.37 | 914.37 | 1 | In Stock | Hammond Mfg. | 914.37 @ Qty: 1+ |
