Hammond Manufacturing 1418JK7

mpn:

1418JK7

brand:

Hammond Mfg

manufacturer:

Hammond Mfg

MPN:

1418JK7

Description:

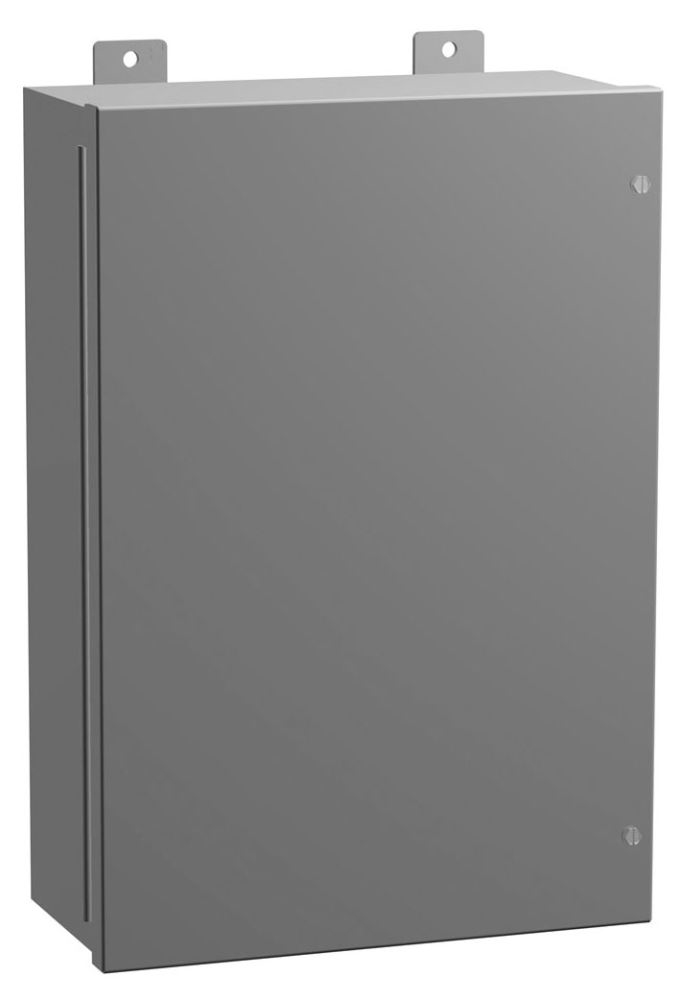

N12 Lg JIC Encl w/panel - 30 x 24 x 7 - Steel/Gray

Weight:

72.0

Weight:

72.0 LB

Preferred Price:

771.43

Price:

771.43

Min Simple Price:

435.84

Absolute Min Price:

618.89

Min Price:

618.89

Dimensions:

[30.0, 24.0, 7.0]

qty:

simpleSku:

jgwODA:::1418JK7

sku:

jgwODA::HU:1418JK7@y0

condition:

seller:

Onlinecomponents.com

amzMan:

hammond manufacturing

HazMat:

False

DropShip:

True

Key ^	Value
Approvals	CE, UL
Approximate Depth	7" (178mm)
Approximate Height	30" (762mm)
Approximate Width	24" (610mm)
Back Panel Number, Inner Panel	Included
Capacity	5040 cu-in
Color	Gray
Composition	Metallic
Configuration	Without Knock-Outs
Cover Design, Cover Type	Hinged
Depth	7 in
Depth (In)	7.00
Description:	N12 Lg JIC Encl w/panel - 30 x 24 x 7 - Steel/Gray
Dimensions	30 x 24 x 7 . ; 762 x 610 x 178 in ; mm
Dimensions (H x W x D)	30 x 24 x 7"
Door Design	Hinged (Single Door)
Enclosure Mounting	Panel Mount
Enclosure Series, Product Series, Series	1418J
Estimated Weight	72
Family Series	Hammond Manufacturing Enclosures, 1418J Series
Finish	ANSI 61 Gray, Powder Coated
Gross Weight	78 lbs
Height	30 in
Height (In)	30.00
IEC Rating, IP Rating	IP54
Item Number, Manufacturer Part Number, MFG Part #:, Part Number	1418JK7
Latching Mechanism	Screws
Locking Feature	Screw
Manufacturer	Hammond Manufacturing Co., Inc.
Manufacturer, Supplier:	Hammond Manufacturing
Material	Steel, 16 ga Mild Steel, Metal
Mounting	Feet
Mounting Type	Wall
NEMA Rating	NEMA 12, NEMA 12/IP54
Nema Rating, NEMA Type	12
Net Weight	72.06 lbs
Nominal Depth	7 "
Nominal Height	30 "
Nominal Width	24 "
Number of Doors	1
Options Included	Gasketed Cover, Ground Stud, Literature Pocket
Panel Included, RoHS	Yes
Panel Size	27 in L x 21 in W
Series	1418J Series
Size	Large
Special Features	Hinged ; Inner Panel
Standards	UL, CSA, IEC, RoHS
Type	Flanged, Wall Mount Enclosures
UPC	062398037770
UPC Code, UPC:	623980377704
Width	24 in
Width (In)	24.00
Window/Clear Cover	No

Seller	Supplier SKU	Requested Price ^	Calc MOQ Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Onlinecomponents.com	1418JK7	435.84	435.84	1	In Stock		HAMMOND MFG		435.84 @ Qty: 1+
Carlton Bates Company	62398037770	532.03	532.03	1	In Stock		HAMMOND MANUFACTURING		532.03 @ Qty: 1+
Solutions Direct	1418JK7	609.88	609.88	1	In Stock		Hammond Manufacturing		609.88 @ Qty: 1+
Hawk Electronics	1418JK7	613.0	613.0	1	In Stock		Hammond Mfg.		613.0 @ Qty: 1+
Walker Industrial	1418JK7	624.88	624.88	1	In Stock	17	Hammond Manufacturing		624.88 @ Qty: 1+
us.rs-online.com	70164936	635.79	635.79	1	In Stock		Hammond Manufacturing		635.79 @ Qty: 1+
Newark	24B6128	641.05	641.05	1	3		HAMMOND		641.05 @ Qty: 1+
Dale-Electric	1418JK7	692.32	692.32	1	In Stock		Hammond Manufacturing Co., Inc.		692.32 @ Qty: 1+
turtle.com	HMC 1418JK7	698.7	698.7	1	In Stock		Hammond Manufacturing		698.7 @ Qty: 1+
Automation Direct	1418JK7	705.0	705.0	1	1		Hammond	72.0	705.0 @ Qty: 1+
motorsandcontrol.com	1418JK7	714.15	714.15	1	In Stock		Hammond Manufacturing	72.0	714.15 @ Qty: 1+
Galco	1418JK7-HMND	715.06	715.06	1	In Stock		Hammond Manufacturing	78.0	715.06 @ Qty: 1+
gordonelectricsupply.com	1418JK7	720.0	720.0	1	In Stock		HAMMOND MFG		720.0 @ Qty: 1+
kscdirect.com	HAM 1418JK7	749.78	749.78	1	In Stock		Hammond Manufacturing		749.78 @ Qty: 1+
Guardian	HAMM-1418JK7	986.85	986.85	1	In Stock		Hammond Mfg		986.85 @ Qty: 1+
