mpn:
brand:
manufacturer:
MPN:
Description:

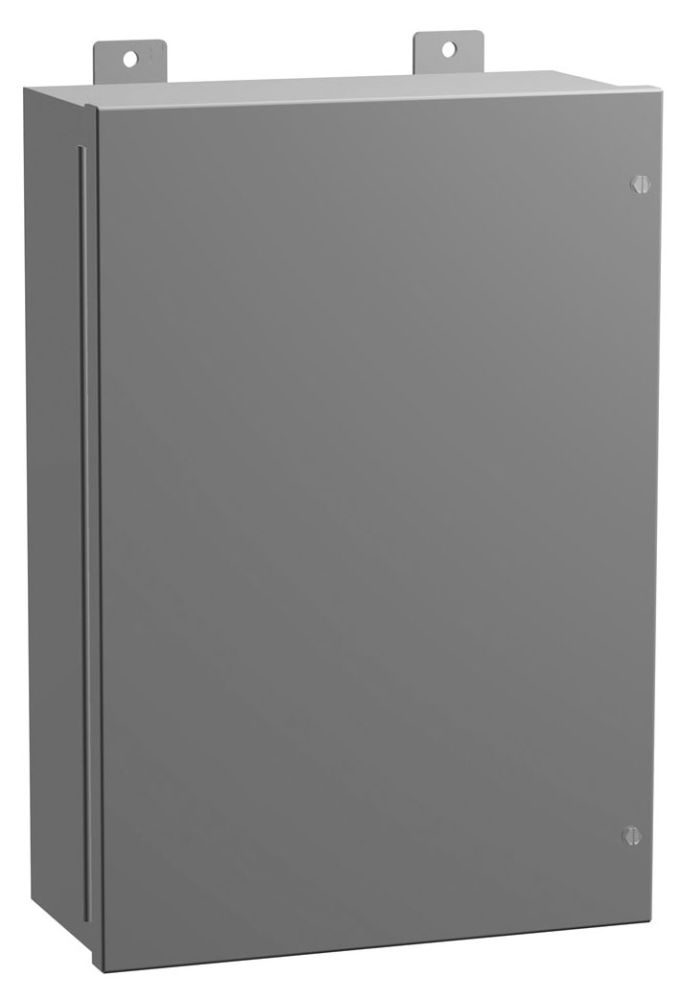

N12 Lg JIC Encl w/panel - 36 x 24 x 9 - Steel/Gray
Weight:
100.0
Weight:
100.0 LB
Preferred Price:
1129.68
Price:
1129.68
Min Simple Price:
638.24
Absolute Min Price:
906.3
Min Price:
906.3
Dimensions:
[36.0, 24.0, 9.0]
qty:
21
simpleSku:
jgwODA:::1418JL9
sku:
jgwODA::CC:1418JL9@y0
condition:
11
seller:
Carlton Bates Company
amzMan:
hammond manufacturing
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water. |
| Approvals | CE, UL |
| Area (L x W) | 864in? (5574cm?) |
| Back Panel Number, Inner Panel | Included |
| Base Product Number | 1418 |
| Brand | Hammond Mfg. |
| Capacity | 7776 cu-in |
| Catalog Number, Item Number, Manufacturer Part Number, Manufacturer Product Number, MFG Part #:, Part Number | 1418JL9 |
| Category | Boxes, Enclosures, Racks |
| Color | Gray |
| Composition | Metallic |
| Container Type | Box |
| Country of Origin | Canada |
| Cover Design | Hinged |
| Cover Type | Continuous Hinged/Screw |
| Cubic Capacity | 7776 Cubic in |
| Depth | 9 in |
| Depth (In) | 9.00 |
| Description | BOX STEEL GRAY 36"L X 24"W |
| Description: | N12 Lg JIC Encl w/panel - 36 x 24 x 9 - Steel/Gray |
| Design | Hinged Door, Lid |
| Detailed Description | Box Metal, Steel Gray Hinged Door, Lid 36.000" L x 24.000" W (914.40mm x 609.60mm) X 9.000" (228.60mm) |
| Digi-Key Part Number | 4917-1418JL9-ND |
| Dimensions (H x W x D) | 36 x 24 x 9" |
| Door Design | Hinged (Single Door) |
| Enclosure Series, Product Series, Series | 1418J |
| Estimated Weight | 100 |
| Family Series | Hammond Manufacturing Enclosures, 1418J Series |
| Features | Interior Panels, Mounting Flange |
| Finish | ANSI 61 Gray, Powder Coated |
| Gross Weight, Net Weight | 100 lbs |
| Height | 36 in, 9.000" (228.60mm) |
| Height (In) | 36.00 |
| IEC Rating | IP54 |
| Item Type | Type 12 Mild Steel Wallmount Enclosure |
| Latching Mechanism | Screws |
| Locking Feature | Screw |
| Made in USA, Window/Clear Cover | No |
| Manufacturer | Hammond Manufacturing Co., Inc. |
| Manufacturer, Mfr, Supplier: | Hammond Manufacturing |
| Material | Steel, Metal, Mild Steel, Metal, Steel |
| Material Flammability Rating | - |
| Mounting | Feet |
| Mounting, Mounting Type | Wall |
| NEMA Rating | NEMA 12 |
| Nema Rating, NEMA Rating, NEMA Type | 12 |
| Nominal Depth | 9 " |
| Nominal Height | 36 " |
| Nominal Width | 24 " |
| Number of Doors | 1 |
| Options Included | Gasketed Cover, Ground Stud, Literature Pocket |
| Package | Case |
| Panel Included, RoHS | Yes |
| Panel Size | 21 in W x 33 in H |
| Product Status | Active |
| Ratings | IP54, JIC EGP-1-1967, NEMA 12, UL 508 |
| Series, Sub Brand | 1418J Series |
| Shipping Info | Drop shipped from the Manufacturer's Warehouse |
| Size | 36 in x 24 in x 9 in |
| Size / Dimension | 36.000" L x 24.000" W (914.40mm x 609.60mm) |
| Special Features | Formed from 14 gauge steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Door and body stiffeners are provided in the larger enclosures for extra rigidity. Welded brackets provide for enclosure mounting. Continuously hinged cover is secured with plated screws, threaded into sealed wells. Oil resistant gaskets are permanently secured. A removable 12 gauge inner panel is included. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided on the enclosure. A literature pocket is provided for the inside of the door. |
| Standard | ul, ce |
| Standards | UL, CSA, IEC, RoHS |
| Thickness | 14 Gauge |
| Type | Junction Box, 1-Door Large, Wall Mount Enclosures |
| UPC | 062398037800 |
| UPC, UPC Code, UPC: | 623980378008 |
| Weight | 100 lbs (45.4 kg) |
| Width | 24 in |
| Width (In) | 24.00 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Carlton Bates Company | 62398037800 | 638.24 | 638.24 | 1 | In Stock | HAMMOND MANUFACTURING | 638.24 @ Qty: 1+ | ||
 | Solutions Direct | 1418JL9 | 731.64 | 731.64 | 1 | In Stock | Hammond Manufacturing | 731.64 @ Qty: 1+ | ||
| Hawk Electronics | 1418JL9 | 736.0 | 736.0 | 1 | In Stock | Hammond Mfg. | 736.0 @ Qty: 1+ | |||
 | Galco | 1418JL9-HMND | 747.53 | 747.53 | 1 | In Stock | Hammond Manufacturing | 100.0 | 747.53 @ Qty: 1+ | |
 | Walker Industrial | 1418JL9 | 749.62 | 749.62 | 1 | In Stock | 17 | Hammond Manufacturing | 749.62 @ Qty: 1+ | |
 | Digi-Key | 2359564 | 751.9 | 751.9 | 1 | In Stock | Hammond Manufacturing | 100.0 | 751.9 @ Qty: 1+ | |
| Airline Hydraulics | 1418JL9 | 755.0 | 755.0 | 1 | In Stock | Hammond Manufacturing | 755.0 @ Qty: 1+ | |||
| us.rs-online.com | 70305876 | 755.35 | 755.35 | 1 | In Stock | Hammond Manufacturing | 755.35 @ Qty: 1+ | |||
 | Newark | 24B6132 | 758.54 | 758.54 | 1 | 6 | HAMMOND | 758.54 @ Qty: 1+ | ||
| Dale-Electric | 1418JL9 | 830.53 | 830.53 | 1 | In Stock | Hammond Manufacturing Co., Inc. | 830.53 @ Qty: 1+ | |||
 | turtle.com | HMC 1418JL9 | 838.18 | 838.18 | 1 | In Stock | Hammond Manufacturing | 838.18 @ Qty: 1+ | ||
 | Automation Direct | 1418JL9 | 845.0 | 845.0 | 1 | 3 | Hammond | 100.0 | 845.0 @ Qty: 1+ | |
 | motorsandcontrol.com | 1418JL9 | 856.73 | 856.73 | 1 | In Stock | Hammond Manufacturing | 100.0 | 856.73 @ Qty: 1+ | |
 | gordonelectricsupply.com | 1418JL9 | 860.0 | 860.0 | 1 | In Stock | HAMMOND MFG | 860.0 @ Qty: 1+ | ||
| kscdirect.com | HAM 1418JL9 | 899.47 | 899.47 | 1 | In Stock | Hammond Manufacturing | 899.47 @ Qty: 1+ | |||
 | Radwell | 1418JL9 | 940.0 | 940.0 | 1 | In Stock | HAMMOND MANUFACTURING | 940.0 @ Qty: 1+ | ||
 | crescentelectric.com | 501515 | 1259.87 | 1259.87 | 1 | In Stock | Hammond Mfg. | 1259.87 @ Qty: 1+ |
