Hammond Manufacturing 1418S20

B005T8HX76

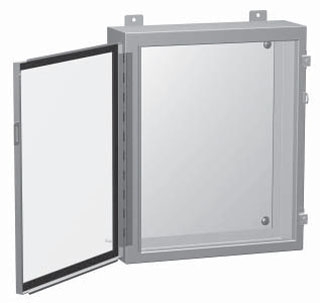

Hammond Manufacturing 1418S20 Panel ENCL. 48X36X20

Hammond Manufacturing 1418S20 Panel ENCL. 48X36X20zoom

Attributes

Key Value
ApplicationDesigned to house elect.
ApprovalsCE, CSA, UL
Area (L x W)1728in? (1.115 m?)
Back Panel NumberIncluded
BrandHammond Mfg.
Capacity34560 cu-in
Catalog Number1418S20
ColorGray
CompositionMetallic
Container TypeBox
Country of OriginCanada
Cover DesignHinged
Cover TypeHinged
Cubic Capacity34560 Cubic in
Depth20 in
Depth (In)20.00
Description:N12 Wallmount Encl w/pa.
DesignHinged Door, Lid
Dimensions (H x W x D)48 x 36 x 20"
Door DesignHinged (Single Door)
Enclosure MountingWall Mount
Enclosure Series1418
Estimated Weight255
Family SeriesHammond Manufacturing E.
FeaturesInterior Panels, Mounti.
FinishANSI 61 Gray, Powder Co.
Gross Weight256 lbs
Height20.000" (508.00mm), 48 .
Height (In)48.00
IEC RatingIP54
Inner PanelIncluded
IP RatingIP54
Item Number1418S20
Item TypeN12 Wallmount Encl w/pa.
Latching MechanismClamps
LockPadlock
Locking FeatureClamp
Made in USANo
ManufacturerHammond Manufacturing C.
Manufacturer Part Number1418S20
MaterialSteel, 14 ga Mild Steel.
Material Flammability R.-
MFG Part #:1418S20
MfrHammond Manufacturing
MountingFeet, Wall
Mounting TypeWall
NEMA RatingNEMA 12, NEMA 12/13/IP54
Nema Rating12
NEMA Type12 and 13
Net Weight255.21 lbs
Nominal Depth20 "
Nominal Height48 "
Nominal Width36 "
Number of Doors1
Options IncludedGasketed Cover, Ground .
PackageBox
Panel IncludedYes
Panel Size45 in L x 33 in W
Part Number1418S20
Part StatusActive
Product Series1418
RatingsIP54, NEMA 12,13, UL-508
RoHSYes
Series1418 Series, 1418
Shipping InfoDrop shipped from the M.
Size48 in x 36 in x 20 in
Size / Dimension48.000" L x 36.000" W (.
Special FeaturesFormed 14 gauge steel b.
Standardcsa, ul, ccsaus, ce
StandardsUL, CSA, IEC, RoHS
Sub Brand1418 Series
Supplier:Hammond Manufacturing
Thickness14 Gauge
TypeJunction Box, Wall Moun.
UPC623980371306, 062398037.
UPC Code623980371306
UPC:623980371306
Weight256 lbs (116.1 kg)
Width36 in
Width (In)36.00
Window/Clear CoverNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1418S20936.951In StockHAMMOND MFG936.95 @ 1
thumbzoomDigi-Key1418S20-ND951.941In StockHammond Manufacturing951.94 @ 1
thumbzoomCarlton Bates Company623980371301133.271In StockHAMMOND MANUFACTURING1133.27 @ 1
Hawk Electronics1418S201320.01In StockHammond Mfg.1320.0 @ 1
thumbzoomSolutions Direct1418S201324.971In StockHammond Manufacturing1324.97 @ 1
thumbzoomGalco1418S20-HMND1353.751In StockHammond Manufacturing256.01353.75 @ 1
thumbzoomWalker Industrial1418S201357.551In Stock17Hammond Manufacturing1357.55 @ 1
us.rs-online.com703060411367.981In StockHammond Manufacturing1367.98 @ 1
AmazonTPB005T8HX761416.251In Stock4Hammond Manufacturing1416.25 @ 1
AmazonUNKB005T8HX761416.251In StockHammond Manufacturing1416.25 @ 1
thumbzoomturtle.comHMC 1418S201487.231In StockHammond Manufacturing1487.23 @ 1
Dale-Electric1418S201504.071In StockHammond Manufacturing Co., Inc.1504.07 @ 1
thumbzoommotorsandcontrol.com1418S201551.511In StockHammond Manufacturing255.01551.51 @ 1
thumbzoomNewark24B62251552.2215HAMMOND1552.22 @ 1
thumbzoomgordonelectricsupply.com1418S201560.01In StockHAMMOND MFG1560.0 @ 1
thumbzoomAutomation Direct1418S201577.011Hammond255.01577.0 @ 1
kscdirect.comHAM 1418S201628.91In StockHammond Manufacturing1628.9 @ 1
GuardianHAMM-1418S202122.41In StockHammond Mfg2122.4 @ 1
thumbzoomcrescentelectric.com3866592281.61In StockHammond Mfg.2281.6 @ 1
