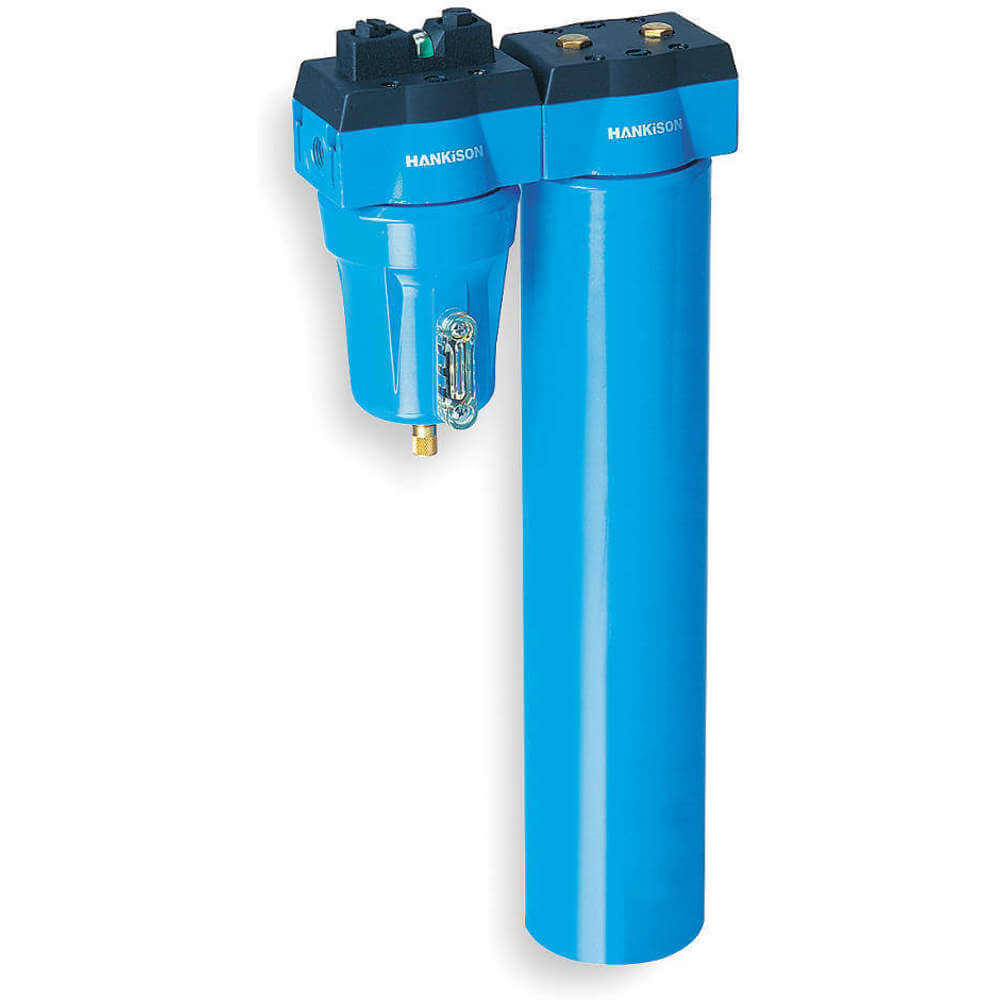

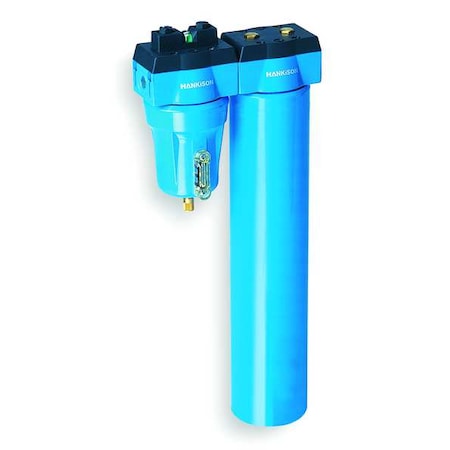

HANKISON HMM44F

B0078S0OHG

Air Dryer, Membrane, 4.09 to 13.67 CFM

Air Dryer, Membrane, 4.09 to 13.67 CFMzoom

Attributes

Key Value
Air Inlet Size1/2 in
Air Inlet TypeNPT
Air Outlet Size1/2 in
Body MaterialAluminum
CFM4.09 to 13.67
Dew Point40 Degrees F
Dew Point (Deg. F)-40 to 50
Drain TypeAutomatic
FilterGrade 5 Coalescing
Filter Element Compatib.F02-B-PF/HF
Filter Element Life6 mo
Filter IncludedGrade 5 Coalescing
Filter TypeCoalescing
Filtered SubstanceOil, Water
FinishPowder Coated
Height (In.)27 in
Housing MaterialAluminum
IncludesAutodrain, Auto Drain, .
Inlet Size (Combined)1/2 in NPT
Inlet/Outlet (In.)1/2 in
ISO Class2 to 6, 2, 3, 4, 5, 6
ItemMembrane Air Dryer
Max. Ambient Temp. (F)150 Degrees F
Max. Inlet Temp. (Deg. .150 Degrees F
Max. Pressure (PSI)200 psi
Maximum Ambient Tempera.150 Degrees F
Maximum Flow Rate14.1 cfm
Maximum Operating Press.200 psi
Maximum Operating Tempe.150 Degrees F
Minimum Flow Rate4.09 cfm
Number of Air Inlets1
Number of Air Outlets1
Overall Depth4 1/8 in
Overall Height27 5/8 in
Overall Width105 mm
SeriesHMM
StandardsISO 7183
TypeMembrane
Weight3.6 kg
Width (In.)8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG15225341310.01In StockHankison19.111310.0 @ 1
grainger.caWWG2DBB81654.482035061In StockHANKISON19.111654.48203506 @ 1
thumbzoomsustainablesupply.comC16724151874.41In StockHankison19.111874.4 @ 1
thumbzoomRaptor SuppliesAB9HAT2648.28710251In StockHANKISON2648.2871025 @ 1
