HARRIS 742125590A

B07QC8NPLK

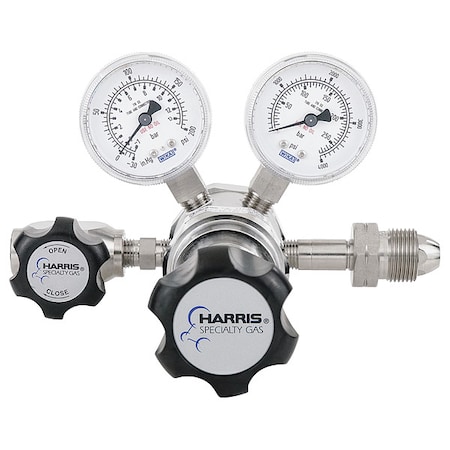

HARRIS Compressed air Specialty Gas lab Regulator, CGA 590, 2-Stage, 316 Stainless Steel, 0-125 PSI

HARRIS Compressed air Specialty Gas lab Regulator, CGA 590, 2-Stage, 316 Stainless Steel, 0-125 PSIzoom

Attributes

Key Value
(Gas Type - Subhead)Industrial Air
(inlet + outlet + max o.( CGA 590 - 0.965"-14 -.
(inlet)( CGA 590 - 0.965"-14 -.
(outlet)( 1/4 in - Female - NPT
ApplicationCorrosive Gas Applicati.
Body Dia.2.0 in
Body Diameter2 in
Body Material316L Stainless Steel
Bonnet MaterialChrome Plated Brass
BrandHARRIS
Catalog PageN/A
CGA NumberCGA 590
Compatible Gas TypeIndustrial Air
Control TypeKnob
Country of OriginUSA
Country of Origin (subj.United States
Delivery Pressure Range0 to 125 psi
Diaphragm Material316L Stainless Steel
Filter MaterialStainless Steel
Flow Coefficient0.06
For Gas TypeIndustrial Air
Gas Purity Rating99.9999 %
Gas ServiceIndustrial Air
Gauge Diameter2 in
Gauge Size2 in
Helium Leak Integrity R.1.00 x 10^-9 cc/sec
IncludesDiaphragm Valve
Inlet ConnectionCGA-590
Inlet Connection GenderFemale
Inlet Connection Size0.965"-14
Inlet Connection TypeNGO
Inlet Pressure (Maximum)4,350 psig
Inlet Thread DirectionLeft Hand
ItemHigh Purity Gas Regulat.
Item?55EL82
Manufacturer Part Number742125590A
Max. Inlet Pressure3,000 psi
Maximum Inlet Pressure4,350 psig
Mfr. Model?742125590A
Mounting LocationFront Panel
Mounting TypeCylinder
Number of StagesTwo Stage
Outlet Connection1/4 in FNPT, 1/4 in NPT.
Outlet Connection GenderFemale
Outlet Connection Size1/4 in
Outlet Connection TypeNPT
Outlet Pressure (Maximu.125 psig
Outlet Pressure (Minimu.0 psig
Overall Height8.73 in
Regulator ApplicationLaboratory
Regulator SeriesHP 742
Regulator Supply TypeCylinder
Seal MaterialPTFE
Seat MaterialPTFE
StagesTwo Stage
StandardsCGA E-4
Supply Pressure Gauge4,000 psi
UNSPSC40142201

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3814305893.041In Stock12Harris Products Group6.1893.04 @ 1
Grainger55EL821465.731In StockHARRIS1465.73 @ 1
