HARTING 09185106913

mpn09185106913
brandname: HARTING
manufacturername: HARTING

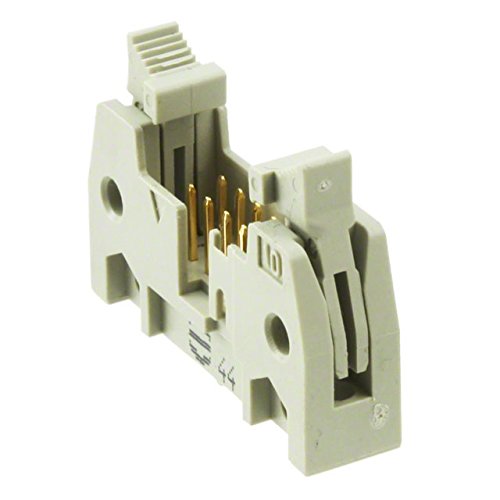

Harting Connector

Harting Connector

zoom

Brand: HARTING
PartNumber: 09185106913
PackageQuantity: 1
Manufacturer: Harting
Label: Harting

Attributes

Key	Value
Alternate Mfr Part Numb.	6935448
Applications	-
Category	Connectors, Interconnec.
Connector	socket
Connector pinout layout	2x5
Connector series	SEK
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	-
Contact Finish Thicknes.	-
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	2.54mm
Current Rating (Amps)	-
Description	CONN HEADER R/A 10POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	1195-1676-ND
Electrical mounting	THT
Fastening Type	Latch Lock/Eject Hooks,.
Features	Keying Slot, Mounting F.
Ingress Protection	-
Insulation Color	Gray
Insulation Height	0.335" (8.51mm)
Insulation Material	Polybutylene Terephthal.
Kind of connector	male
Manufacturer	HARTING
Manufacturer Product Nu.	09185106913
Manufacturer Standard L.	8 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	HARTING
Mounting Type	Through Hole, Right Ang.
Number of Contacts	10
Number of pins	10
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 125?C
Overall Contact Length	-
Package	Bulk
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	SEK Series, SEK
Shrouding	Shrouded - 4 Wall
Spatial orientation	angled 90?
Style	Board to Cable/Wire
Termination	Solder
Type	Right Angle Header
Type of connector	IDC
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	09185106913	1.41	100	70		HARTING		1.41 @ 100
	Digi-Key	3180259	2.4	1	70		HARTING		2.4 @ 1
	us.rs-online.com	70428264	2.69	1	70		HARTING		2.69 @ 1
	Newark	92Y4069	2.75	1	62		HARTING		2.75 @ 1
	RS Delivers	693-5448P	2.844	1	44		HARTING		2.844 @ 1
	AmazonSC	B00SRTZS0S	5.03	1	70		HARTING		5.03 @ 1
