HARTING 09185346324

B076415BVM

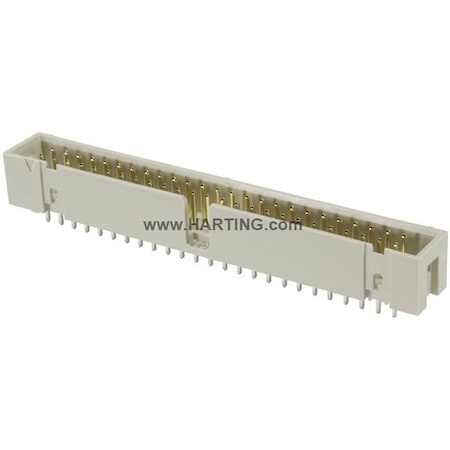

Harting, 09185346324, STIFTDON SEK 2,9mm Male Low Profile

Harting, 09185346324, STIFTDON SEK 2,9mm Male Low Profilezoom

Attributes

Key Value
Applications-
CategoryConnectors, Interconnec.
ColorGray
Colour (insert)Grey
Connection typePCB to cable
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.114" (2.90mm)
Contact MaterialCopper Alloy
Contact Resistance?20 m?
Contact rows2
Contact ShapeSquare
Contact spacing (termin.2.54 mm
Contact TypeMale Pin
Current Rating (Amps)-
DescriptionCONN HEADER VERT 34POS .
Description of the cont.Straight
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number1195-1731-ND
ElementMale Connector
Fastening TypeLatch Holder
FeaturesStraight, Keying Slot
Ingress Protection-
Insertion and withdrawa.?68 N
Insulation ColorGray
Insulation Height0.350" (8.89mm)
Insulation MaterialPolybutylene Terephthal.
Insulation resistance>10
Isolation groupIIIa (175 ?CTI < 400)
ItemMale Connector
ManufacturerHARTING
Manufacturer Product Nu.09185346324
Manufacturer Standard L.8 Weeks
Mated Stacking Heights-
MaterialThermoplastic Resin
Material flammability c.V-0
Material Flammability R.UL94 V-0
MfrHARTING
Mounting TypeThrough Hole
Number of contacts34
Number of Positions34
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 125?C
Overall Contact Length-
PackageTray
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Rated current1 A
Row Spacing - Mating0.100" (2.54mm)
SeriesSEK, SEK Low-profile
ShroudingShrouded - 4 Wall
StandardsIEC 60603-13; UL 1977 E.
StyleBoard to Cable/Wire
Temp. Range-55?to?125?C
TerminationSolder
Termination length2.9 mm
Termination MethodWave soldering terminat.
Termination TypeWave Soldering
UL / CSAUL 1977 ECBT2.E102079 |.
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark96F26940.66514HARTING0.665 @ 2
Arrow091853463242.8891861HARTING Elektronik2.889 @ 2
thumbzoomTME091853463243.0142HARTING3.0 @ 2
Mouser617-09-18-534-63243.781248HARTING Elektronik3.78 @ 2
thumbzoomDigi-Key31803144.14141HARTING4.14 @ 2
RS Delivers693-53155.3281139HARTING5.328 @ 2
thumbzoomZoroG7737874367.9912Harting367.99 @ 2
