09 67 015 5601

mpn09670155601
brandname: HARTING
manufacturername: HARTING

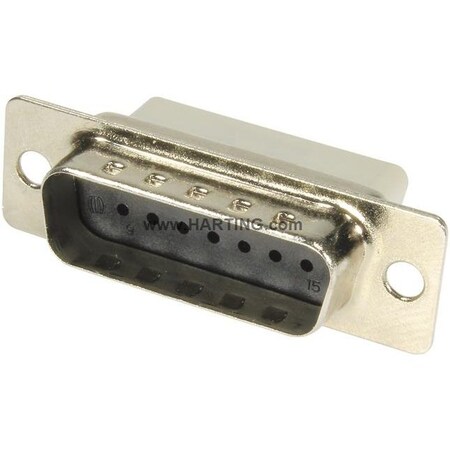

HARTING 09670155601 D Sub Connector Housing, D Sub, DA, Plug, 15, Metal Body (100 pieces)

PartNumber: 09 67 015 5601
PackageQuantity: 100
Manufacturer: HARTING
Label: HARTING

Attributes

Key	Value
Angle	Straight
Application	Standard
Cable Clamping Method	Crimp
Category	Connectors, Interconnec.
Color	-
Connection Type	Crimp
Connector Gender	Male
Connector Style	Male connector, D-Sub
Connector Type	Plug for Male Contacts,.
Contact Material	Copper Alloy
Contact Type	Signal
Contacts, # of	15
D-Sub Shell Size	D-Sub 2
Description	CONN D-SUB HOUSING PLUG.
Detailed Description	Plug for Male Contacts .
Dielectric Material	PBTP, Polybutylene Tere.
Digi-Key Part Number	1195-2680-ND
Export Class	EAR / EAR99
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthread.
Housing Finish	Tin
Housing Material	Plated Steel, Metal
Ingress Protection	-
Insert Color	Black
Insert Material	Thermoplastic Resin Gla.
Item	Fixing Flange D-Sub Con.
Locking Type	Fixing Flange
Manufacturer	HARTING
Manufacturer Product Nu.	09670155601
Manufacturer Standard L.	8 Weeks
Mating Cycles	-
Maximum Operating Tempe.	125 Degrees C
Mfr	HARTING
Minimum Insulation Resi.	1.00 x 10^10 ohm
Minimum Operating Tempe.	-55 Degrees C
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Contacts	15
Number of Poles	15
Number of Positions	15
Number of Rows	2
Operating Temperature	-55?C ~ 125?C
Operating Temperature R.	-55 Degrees C to 125 .
Package	Tray
Package Quantity	1
Primary Type	D-Sub
Product Status	Active
RoHS	Yes
Series	D-Sub, -, D-Sub Series
Service Connector Type	Standard Density D-Sub .
Shell Finish Thickness	-
Shell Material, Finish	Steel, Tin Plated
Shell Size, Connector L.	2 (DA, A)
Specification	D-Sub
Standards	IEC 60807-3, UL 1977 EC.
Termination	Crimp
Termination Method	Crimp termination
Type	Cable Plug, Male
Weight (g)	6.00000
Weight (lbs)	0.01323
Wire Size	28 to 18 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
TME	09670155601	1.18	1	103	HARTING		1.18 @ 10
PEI-Genesis	09670155601	1.38	1	15	Harting	0.01323	1.38 @ 10
Hotenda	H1191434	1.691	1	81	HARTING		1.691 @ 10
Future Electronics	4089948	1.704	1	255	HARTING		1.704 @ 10
us.rs-online.com	70070140	1.94	1	54	HARTING		1.94 @ 10
Digi-Key	3181264	2.25	1	146	HARTING		2.25 @ 10
RS Delivers	692-7829	2.346	1	240	HARTING		2.346 @ 10
Zoro	G605285908	9.25	5	10	Harting	1.7	9.25 @ 10
Carlton Bates Company	78950691775	153.0	1	10	HARTING OF NORTH AMERICA INC		153.0 @ 10
