HARTING 09670155604

mpn09670155604
brandname: HARTING
manufacturername: HARTING

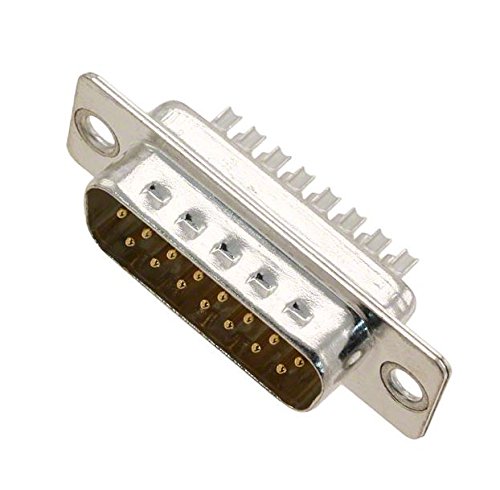

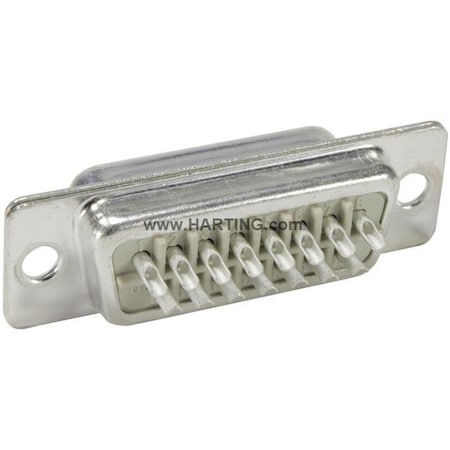

Harting, 09670155604, DSUB SV MA TSDC 15P AU3

Harting, 09670155604, DSUB SV MA TSDC 15P AU3

zoom

Brand: HARTING
PartNumber: 09670155604
Manufacturer: Harting
Label: Harting

Attributes

Key	Value
Alternate Part No.	617-09-67-015-5604
Backset Spacing	-
Boardlocks	Without BOARDLOCKS
Brand	HARTING
Cable Connector Type	D-Sub Coupler
Color	White, -
Conductor Size	0.5 sq mm
Connector	plug
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Connector variant	turned contacts
Contact Finish	-
Contact Finish Thickness	-
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal, Machined Contac.
Current Rating	7 A
Current Rating (Amps)	7.5A
Dielectric Material	Polybutylene Terephthal.
Electrical mounting	soldering
Engineering PN	DSUB SV MA TSDC 15P AU3
Features	Turned; Straight, Groun.
Flange Feature	Housing/Shell (Unthread.
Gender	male
Ingress Protection	-
Kind of connector	male
Manufacturer	HARTING
Manufacturer Part No.	09670155604
Material	Glass Fiber Filled Ther.
Material Flammability R.	UL94 V-0
Max. Amps	7.5 A
Mechanical durability	50 cycles
Mfr	HARTING
Mounting	Fixing Flange with Feed.
Mounting Angle	Straight
Mounting Style	Wire
Mounting Type	Free Hanging (In-Line)
Number of Connections	15
Number of pins	15
Number of Positions	15
Number of Rows	2
Operating Temperature	-55?C ~ 125?C
Package Quantity	100
Part # Aliases	015 09 09-67-015-5604 5.
Part Status	Active
Product Category	D-Sub Standard Connecto.
Series	-, D-Sub Standard
Shell Material, Finish	Steel
Shell Size, Connector L.	2 (DA, A)
Standards	DIN 41652; UL 1977 ECBT.
Temp. Range	-55?to?125?C
Termination	Solder Cup
Termination Style	Solder Cup
Type of connector	D-Sub
Voltage Rating	-
Wire Gauge	20 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Future Electronics	2098022	3.936	100	5		HARTING		3.936 @ 100
	TME	09670155604	4.95	1	77		HARTING		4.95 @ 5
	Radwell	09670155604	6.12	1	5		HARTING		6.12 @ 5
	Digi-Key	1195-2681-ND	6.98	1	5		HARTING		6.98 @ 5
	swatee.com	09670155604	8.59	1	35		HARTING		8.59 @ 5
	Zoro	G2046253	734.99	1	5		Harting		734.99 @ 5
