HAN 09700062813

mpn09700062813
brandname: Harting
manufacturername: Harting

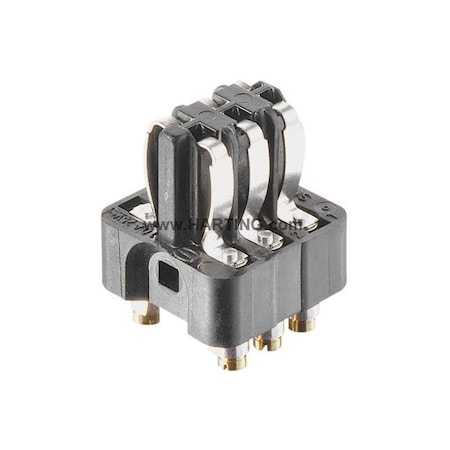

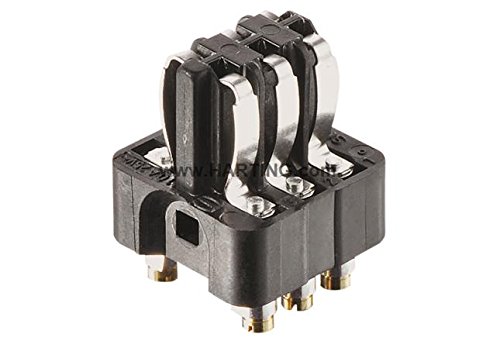

Harting 09700062813 Staf 06 Pos. F Insert Screw

Harting 09700062813 Staf 06 Pos. F Insert Screw

zoom

Brand: HAN
PartNumber: 09700062813
Model: 09700062813
PackageQuantity: 1
Manufacturer: Harting
Label: Harting

Attributes

Key	Value
Alternate Part No.	617-09-70-006-2813
Brand	HARTING
Category	Connectors, Interconnec.
Color	Polyamide (PA), Nylon, .
Colour (insert)	Black
Conductor cross-section	1.5 mm?
Conductor Size - Data C.	1.5 sq mm
Connector Type	Female
Contact Finish	UL94 HB
Contact Material	Copper alloy, Silver
Contact Plating	Silver
Contact Type	-40?C ~ 100?C, Socket
Current Rating	10 A
Current Rating (Amps)	-
Export Class	EAR / EAR99
Family Name	Han-Modular Family
Gender	Female, 6
Housing Material	Copper alloy
Housing/Hood Size	3A
Insert/Contact Gender	Male
Limiting temperature	-40?...?+100??C
Manufacturer	HARTING
Manufacturer Part No.	09700062813
Material	Polyamide
Material (contacts)	Copper alloy
Material (insert)	Polyamide (PA)
Mating cycles	?500
Mfr	HARTING
Number of contacts	6
Number of Contacts	6
Number of Positions	3A, 6
Operating Temperature	-
Package	Active
Part # Aliases	006 09 09-70-006-2813 2.
Part Status	Insert
Pollution degree	3
Product Category	Heavy Duty Power Connec.
Product Type	Inserts
Rated current	10 A
Rated impulse voltage	0.8 kV
Rated voltage	25 V AC \|\| 60 V DC
Rated voltage acc. to UL	50 V
RoHS	Yes
Series	Staf, Bulk, Staf Series
Shell Size	3A
Size	0.125, Screw
Standards	IEC 60664-1; IEC 61984;.
Temp. Range	-40?to?100?C
Terminal Length	23 mm
Termination	Screw
Termination Method	Screw termination
Termination Style	50V, Screw
Termination Type	Screw
Tightening torque	0.25 Nm
Tradename	Han Industrial Connecto.
UL / CSA	UL 1977 ECBT2.E235076
Voltage Rating	10A, 50 V
Weight (g)	16.00000
Weight (lbs)	0.03527

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	09700062813	9.23	1	8		HARTING		9.23 @ 1
	Carlton Bates Company	78950691669	10.57	1	In Stock		HARTING OF NORTH AMERICA INC		10.57 @ 1
	PEI-Genesis	09700062813	12.35	1	18		Harting		12.35 @ 1
	Digi-Key	1195-5196-ND	13.95	1	In Stock		HARTING		13.95 @ 1
	us.rs-online.com	70104722	15.15	1	54		HARTING		15.15 @ 1
	Newark	01C6244	15.35	1	91		HARTING		15.35 @ 1
	RS Delivers	922-9768	18.0204	1	40		HARTING		18.0204 @ 1
	swatee.com	09700062813	22.95	1	9		HARTING		22.95 @ 1
	Zoro	G7809353	187.99	1	In Stock		Harting		187.99 @ 1
