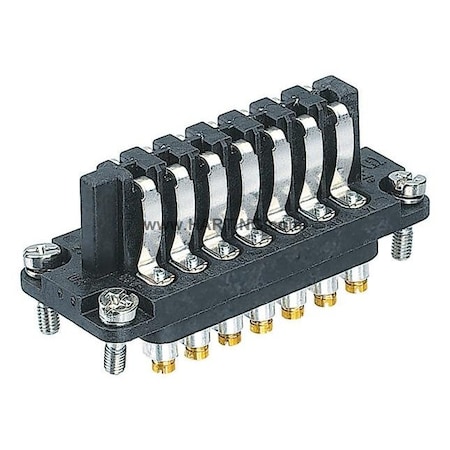

Harting 09700142811 Heavy Duty Power Connectors FEMALE INSERT HAN 10A 14 POLE

Harting 09700142811 Heavy Duty Power Connectors FEMALE INSERT HAN 10A 14 POLEzoom

Attributes

Key Value
AngleStraight Right Angle
Base Product Number09700142
CategoryConnectors, Interconnec.
Color-, Black
Colour (insert)Black
Conductor Size - Data C.1.5 sq mm
Connector TypeInsert
Contact FinishSilver
Contact MaterialCopper alloy
Contact Resistance?2 m?
Contact Type-
Current Rating10 A
Current Rating (Amps)10A
DescriptionINSERT FEMALE 14POS SCR.
Detailed DescriptionFemale Insert 14 Positi.
Digi-Key Part Number1195-5802-ND
Family NameHan A/B Family
GenderMale, Female
Housing MaterialPolyamide (PA), Nylon, .
Insulation resistance>10
Limiting temperature-40?...?+100??C
ManufacturerHARTING
Manufacturer Product Nu.09700142811
Manufacturer Standard L.18 Weeks
MaterialPolyamide
Material (contacts)Copper alloy
Material (insert)Polyamide (PA)
Material flammability c.HB
Material Flammability R.UL94 HB
Mating cycles?500
MfrHARTING
Number of contacts14
Number of Positions14
Operating Temperature-40?C ~ 100?C, -40 to 1.
PackageBulk
Product StatusActive
Rated current10 A
Rated impulse voltage0.8 kV
SeriesStaf, Staf Series, Staf?
Size10A
SpecificationsEN 60664-1 || IEC 61984
StandardsIEC 60664-1; IEC 61984;.
Surface (contacts)Silver plated
Temp. Range-40?to?100?C
TerminationScrew
Termination MethodScrew termination
Termination StyleScrew
Termination TypeScrew
Tightening torque0.25 Nm
TypePlug Insert
Voltage Rating50V, 25 V
Wire Size16 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTME0970014281120.65129HARTING20.65 @ 1
thumbzoomZoroG780929224.151In StockHarting24.15 @ 1
Mouser617-0970014281125.08124HARTING Elektronik25.08 @ 1
thumbzoomDigi-Key432387729.02111HARTING29.02 @ 1
us.rs-online.com7027177329.16145HARTING29.16 @ 1
thumbzoomNewark04C979530.691In StockHARTING30.69 @ 1
thumbzoomRadwell0970014281134.0102HARTING34.0 @ 10
