Harwin M20-9720445

B00MEKDZHO

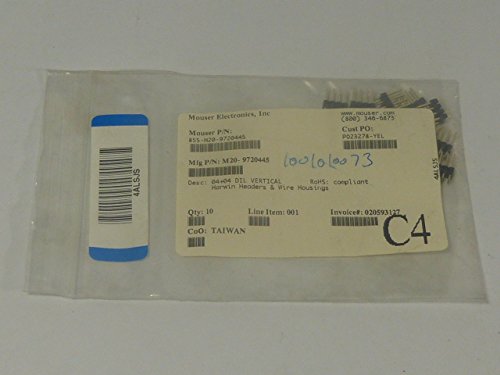

Harwin M20-9720445 8 Pos Header Unshrouded Connector 0.100Inch Pkg of 10

Harwin M20-9720445 8 Pos Header Unshrouded Connector 0.100Inch Pkg of 10zoom

Attributes

Key Value
Applications-
Base Product NumberM20-972
CategoryConnectors, Interconnec.
Connector TypeHeader, Cuttable
Contact Finish - MatingGold
Contact Finish - Post-
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.276" (7.00mm)
Contact Length - Post0.122" (3.10mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3A per Contact
DescriptionCONN HEADER VERT 8POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number952-2375-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.100" (2.54mm)
Insulation MaterialPolyamide (PA6T), Nylon.
ManufacturerHarwin Inc.
Manufacturer Product Nu.M20-9720445
Manufacturer Standard L.18 Weeks
Mated Stacking Heights9.94mm, 10.64mm, 11.04m.
Material Flammability R.UL94 V-0
MfrHarwin Inc.
Mounting TypeThrough Hole
Number of Positions8
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
Overall Contact Length0.496" (12.60mm)
PackageBulk
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesM20
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark55K88740.242200010HARWIN0.242 @ 2000
thumbzoomDigi-Key37243410.431113512Harwin Inc.0.431 @ 10
