Hayward TC1400FE

B009D80QYA

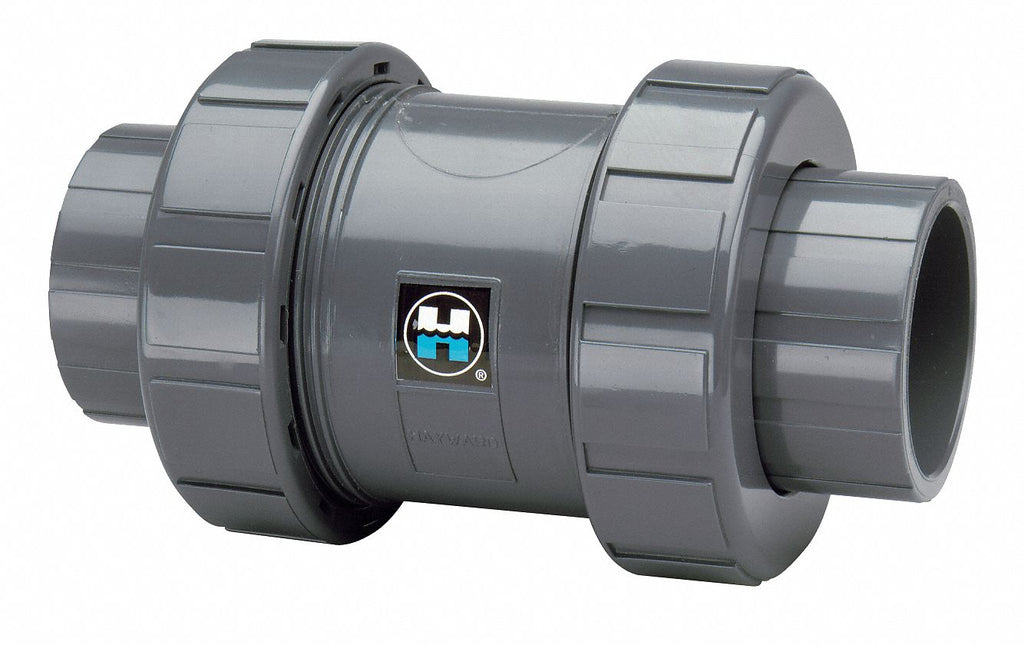

Hayward TC1400FE Series TC True Union Ball Check Valve, Flanged End, PVC with EPDM Seals, 4" Size

Hayward TC1400FE Series TC True Union Ball Check Valve, Flanged End, PVC with EPDM Seals, 4" Sizezoom

Attributes

Key Value
Body MaterialPVC
Connection TypeFlanged
Connection Type - Check.Flange x Flange
Cracking Pressure - Che.3.0 psi
Description:4" PVC True Union Ball .
Dimensions8.56 in H
End StyleFlanged
Flow - Valves275 gpm
Flow DesignSingle
Full Flow - ValvesYes
Inlet to Outlet Length12.94 in
Length17 in
Length (Straight Wirewa.17 in
ManufacturerHAYWARD INDUSTRIAL PROD.
Max. Steam Pressure - V.Not Rated
Max. Temp.140 Degrees F
Max. Temp. - Valves140 Degrees F
Max. Water Pressure - V.150 psi @ 70 Degrees F
MFG Part #:TC1400FE
Min. Temp. - Valves40 Degrees F
Nominal Size4 in
Overall Height9 in
Pipe or Tube Size4 in
Pipe or Tube Size - Che.4 in
Pipe Size4"
Port TypeFull
Pressure Rating150 psi
Seal Material - Check V.EPDM
Seat Material - Check V.EPDM
SeriesTC Series
Size4"
Softgoods MaterialEPDM
StandardsNSF 61
Sub-CategoryPVC
Supplier:HAYWARD INDUSTRIAL PROD.
Temperature Rating70 deg F
TypeTrue Union
UPC:610377166652
Width9 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1383444721.761In Stock10Hayward24.6721.76 @ 1
thumbzoomsustainablesupply.comC27835811125.591In StockHayward24.61125.59 @ 1
thumbzoomblackhawksupply.comTC1400FE1227.01In StockHayward1227.0 @ 1
thumbzoomRaptor SuppliesAE2ZGU1406.95594651In StockHAYWARD1406.9559465 @ 1
kscdirect.comHAY TC1400FE2230.941In StockHAYWARD INDUSTRIAL PRODUCTS2230.94 @ 1
