Attributes
| Key | Value |
|---|---|
| Application | up to 2.5?D for blind holes |
| Diameter | 19.05 mm |
| Flank Angle | 60 Degrees |

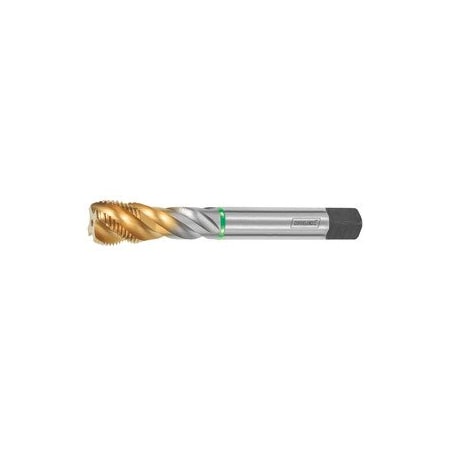

| Item | Tap |
| Number of Teeth | 4 |
| Overall Length | 110 mm |
| Pre-Drill Diameter | 17.5 mm |
| Ring Color | Green |
| Shank Dia. | 14 mm |
| Shank Square Size | 11 mm |
| Shank Type | Plain Shank with h9 |
| Standard | DIN 374 |
| Tap Material | HSS E |
| Taper Lead Form | C |
| Tapping Hole Diameter | 17.5 mm |
| Thread Diameter | 19.05 mm |
| Thread Direction | right-hand |
| Thread Length | 47.63 mm |
| Thread Pitch | 1.587 mm |
| Thread Size | 3/4-16 UNF |
| Thread type | UNF |
| Threads per Inch | 16 |
| Tolerance Class | 2B |
| Tool Type | Machine Tap For Dynamic Machining |
