Honeywell 1LS47

B007PBAFCU

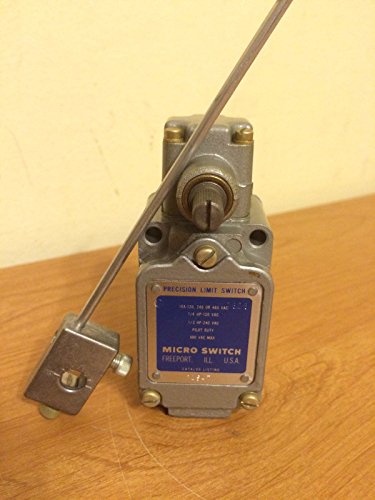

Honeywell Micro Switch 1LS47 Precision Limit Switch Allis-Chalmers 4886679

Honeywell Micro Switch 1LS47 Precision Limit Switch Allis-Chalmers 4886679zoom

Attributes

Key Value
AC Contact Rating10A @ 480V
AC Contact Rating - Lim.10A @ 480V
Actuator Length0.58" to 5.56"
Actuator Length - Limit.0.58 in to 5.56 in
Actuator LocationSide
Actuator Location (Limi.Side
Actuator Location - Lim.Side
Actuator StyleRotary Lever Arm
Actuator Style (Limit S.Rotary, Adjustable Rod
Actuator Style - Limit .Adjustable Rod, Rotary
Actuator TypeAdjustable Rod, Side Ro.
Amps10
Arm MaterialAluminum
Basic Actuator Style (L.Rotary
Basic Actuator Style - .Rotary
Body Depth - Limit Swit.1.13 in
Body Height - Limit Swi.2.7 in
Body MaterialZinc Die Cast
Body Style (Limit Switc.Miniature
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.1.19 in
Boot Sealed Actuator (L.No
Boot Sealed Actuator - .No
CategorySwitches
CircuitSPDT (DB/DM)
Contact FormDPDT, 1NC/1NO, SPDT
Contact Form - Limit Sw.1NC/1NO
Contact Form- Switches1NC/1NO
Country of Origin (subj.United States
Current Rating10 A
Current Rating (Amps)10A (AC)
DC Contact RatingNot Rated
DC Contact Rating - Lim.Not Rated
Depth1.13"
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT (DB/DM) Cha.
Differential Travel-
Digi-Key Part Number480-4072-ND
Electrical ConnectionScrew Terminals
Electrical Life-
Features-
Head TypeSide Rotary Head
Height4.05"
Ingress ProtectionIP67 - Dust Tight, Wate.
ItemLimit Switch
Limit Switch StyleGeneral Purpose Limit S.
ManufacturerHoneywell Sensing and P.
Manufacturer Product Nu.1LS47
Manufacturer Standard L.42 Weeks
Mechanical Life-
MfrHoneywell Sensing and P.
Mounting - Limit SwitchSurface
Mounting Hole - Limit S.(4) 0.19 in dia
Mounting Hole Pattern -.4 Hole Rectangular
Mounting Hole Size0.192 in
Mounting Hole Spacing -.2.31 in x 1.19 in
Mounting TypeChassis Mount
MovementRotary
NEMA Rating1, 13, 3, 4, 6
Number of Poles1
Number of Positions2
Operating Force5 oz, 19gfm
Operating Position5?
Operating Temp. Range-20 Degrees to 160 Deg.
Operating Temperature-29?C ~ 71?C
OperationSide-Actuated
Overtravel30?
PackageBulk
Pretravel5?
Product StatusActive
Release Force4.078gfm
SeriesLS Series, LS
StandardsCSA, UL
Stem Thread - Limit Swi.No Stem
Switch FunctionOn-Mom
TerminationScrew
Termination StyleScrew Terminal
TravelDifferential Travel 4 D.
TypeLimit
Voltage Rating480VAC, 480 V
Voltage Rating - AC120 V
Width1.19"
Wiring Entry1/2 in NPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1LS47169.7115HONEYWELL169.7 @ 1
thumbzoomCarlton Bates Company78454955570206.6211HONEYWELL206.62 @ 1
thumbzoomsustainablesupply.comC1158454310.761In StockHoneywell1.05310.76 @ 1
thumbzoomDigi-Key3072648325.10410In Stock299Honeywell Sensing and Productivity Solutions325.104 @ 10
thumbzoomRadwell1LS47350.018HONEYWELL MICROSWITCH350.0 @ 1
thumbzoomZoroG4198704384.281In Stock33Honeywell Micro Switch384.28 @ 1
alliedcontrols.com1LS47391.491In StockHoneywell391.49 @ 1
thumbzoomNewark23F1850464.110In StockHONEYWELL464.1 @ 10
us.rs-online.com70118793488.861In StockHoneywell488.86 @ 1
thumbzoomkempstoncontrols.co.uk1LS474773.095731In StockHoneywell4773.09573 @ 1
